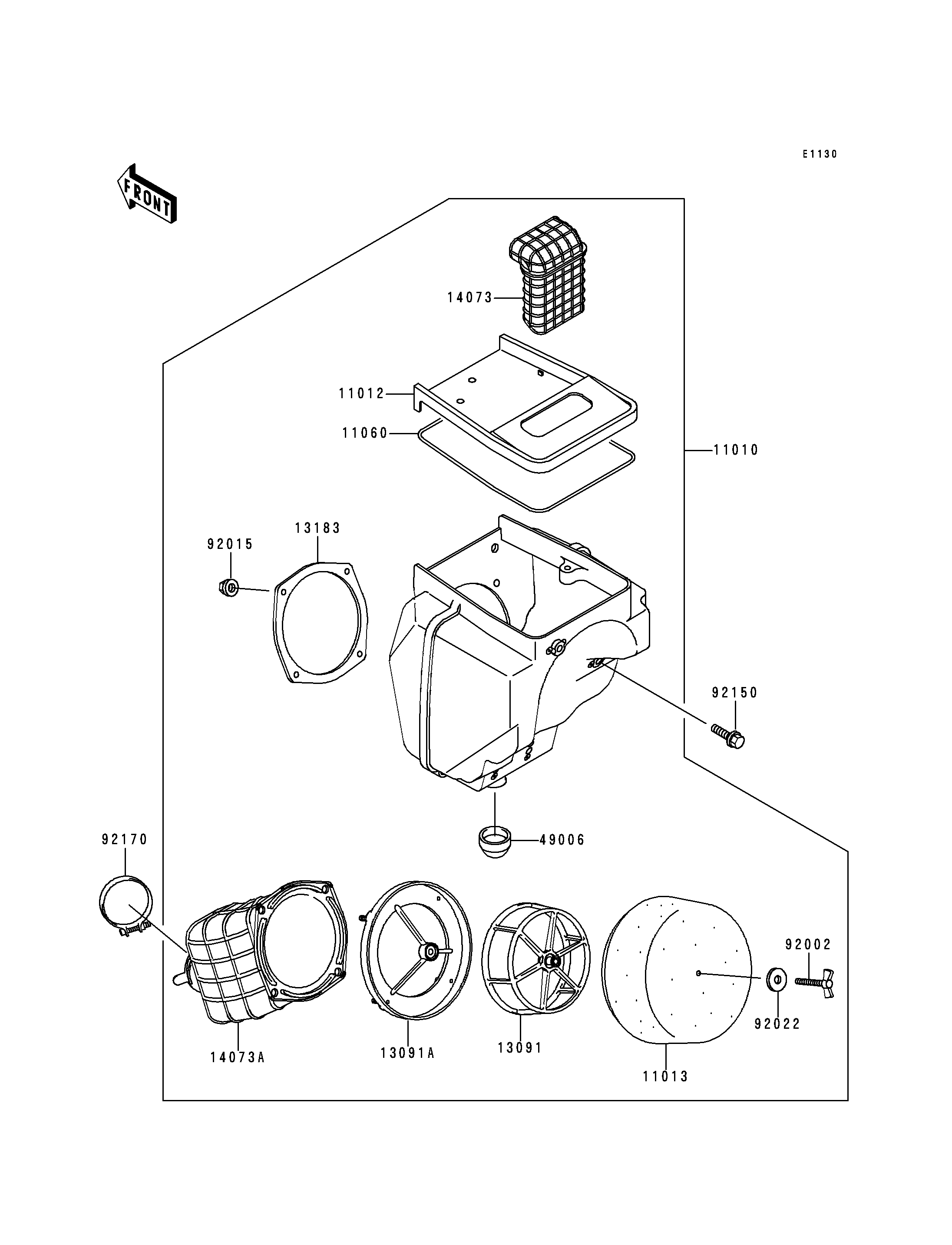

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-1575 1
CAP,AIR FILTER 11012 11012-1913 1
ELEMENT-AIR FILTER 11013 11013-1260 1
GASKET,AIR FILTER 11060 11060-1664 1
HOLDER,ELEMENT 13091 13091-1454 1
HOLDER 13091A 13091-1951 1
PLATE,DUCT FITTING 13183 13183-1046 1
DUCT,AIR INLET 14073 14073-1577 1
DUCT,AIR FILTER 14073A 14073-1597 1
BOOT 49006 49006-1248 1
BOLT,WING 92002 92002-1719 1
NUT,FLANGED,5MM 92015 92015-1259 4
WASHER,6.5X20X1.6 92022 92022-125 1
BOLT,6X20 92150 92150-1892 3
CLAMP,65MM 92170 92170-1526 1
