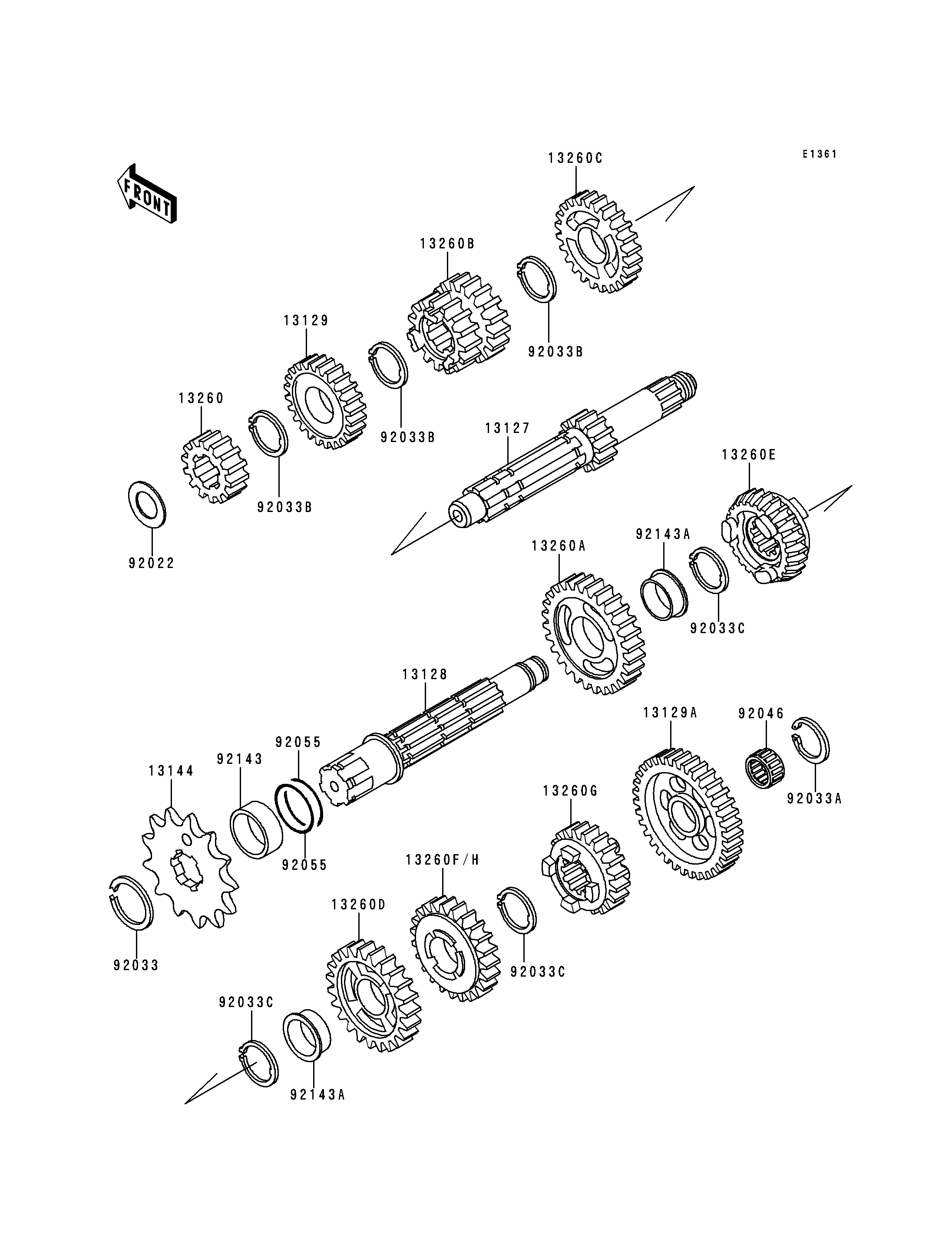

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,13T | 13127 | 13127-1237 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1164 | 1 | ||
| GEAR,INPUT 5TH,24T | 13129 | 13129-1753 | 1 | ||
| GEAR,OUTPUT LOW,35T | 13129A | 13129-1755 | 1 | ||
| SPROCKET-OUTPUT,13T | 13144 | 13144-1027 | 1 | ||
| GEAR,INPUT 2ND,14T | 13260 | 13260-1003 | 1 | ||
| GEAR,OUTPUT 2ND,28T | 13260A | 13260-1004 | 1 | ||
| GEAR,INPUT 3RD&4TH,15T&17T | 13260B | 13260-1006 | 1 | ||
| GEAR,INPUT TOP,23T | 13260C | 13260-1425 | 1 | ||
| GEAR,OUTPUT 3RD,23T | 13260D | 13260-1426 | 1 | ||
| GEAR,OUTPUT 5TH,25T | 13260E | 13260-1427 | 1 | ||
| GEAR,OUTPUT TOP,20T | 13260G | 13260-1489 | 1 | ||
| GEAR,OUTPUT 4TH,21T | 13260H | 13260-1567 | 1 | ||
| WASHER,THRUST,16.5X28X1 | 92022 | 92022-170 | 1 | ||
| RING-SNAP,24MM | 92033 | 92033-026 | 1 | ||
| RING-SNAP | 92033A | 92033-032 | 1 | ||
| RING-SNAP,20MM | 92033B | 92033-1231 | 3 | ||
| RING-SNAP,20MM | 92033C | 92033-1258 | 3 | ||
| BEARING-NEEDLE,K17X23X13.8X | 92046 | 92046-1059 | 1 | ||
| RING-O | 92055 | 92055-035 | 2 | ||
| COLLAR | 92143 | 92143-1433 | 1 | ||
| COLLAR | 92143A | 92143-1472 | 2 |
| SHAFT-TRANSMISSION INPUT,13T | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OUTPUT | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 5TH,24T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,35T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,13T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 2ND,14T | |
| REF # | 13260 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,28T | |
| REF # | 13260A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD&4TH,15T&17T | |
| REF # | 13260B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT TOP,23T | |
| REF # | 13260C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,23T | |
| REF # | 13260D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 5TH,25T | |
| REF # | 13260E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT TOP,20T | |
| REF # | 13260G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,21T | |
| REF # | 13260H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,16.5X28X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,24MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,20MM | |
| REF # | 92033B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,20MM | |
| REF # | 92033C |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,K17X23X13.8X | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
