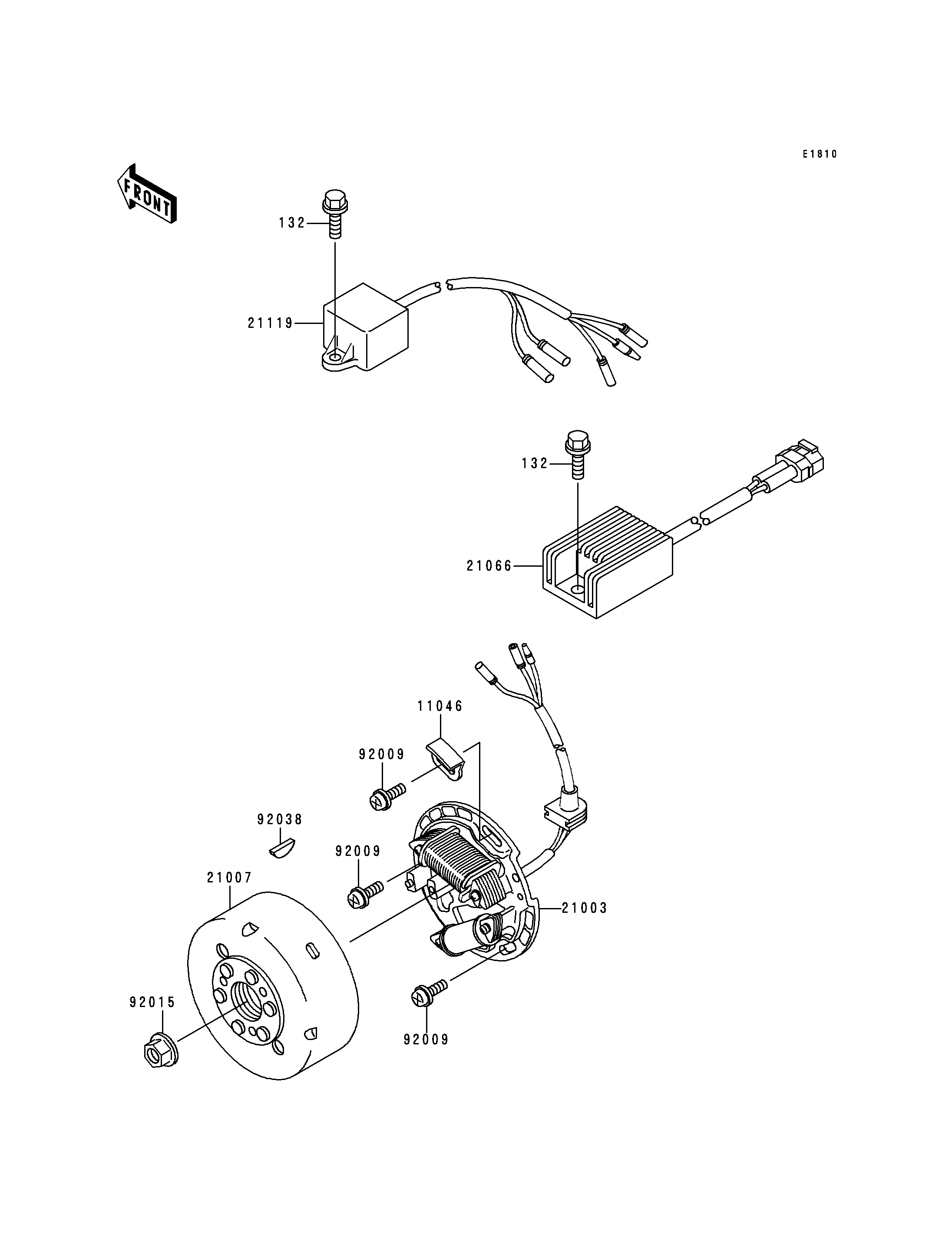

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132Y0612 2
BRACKET 11046 11046-1413 1
STATOR 21003 21003-1279 1
ROTOR,MAGNETO 21007 21007-1276 1
REGULATOR-VOLTAGE 21066 21066-1072 1
IGNITER 21119 21119-1432 1
SCREW,5X16 92009 92009-1722 3
NUT,FLANGED,12MM 92015 92015-1156 1
KEY,WOODRUFF 92038 92038-001 1
