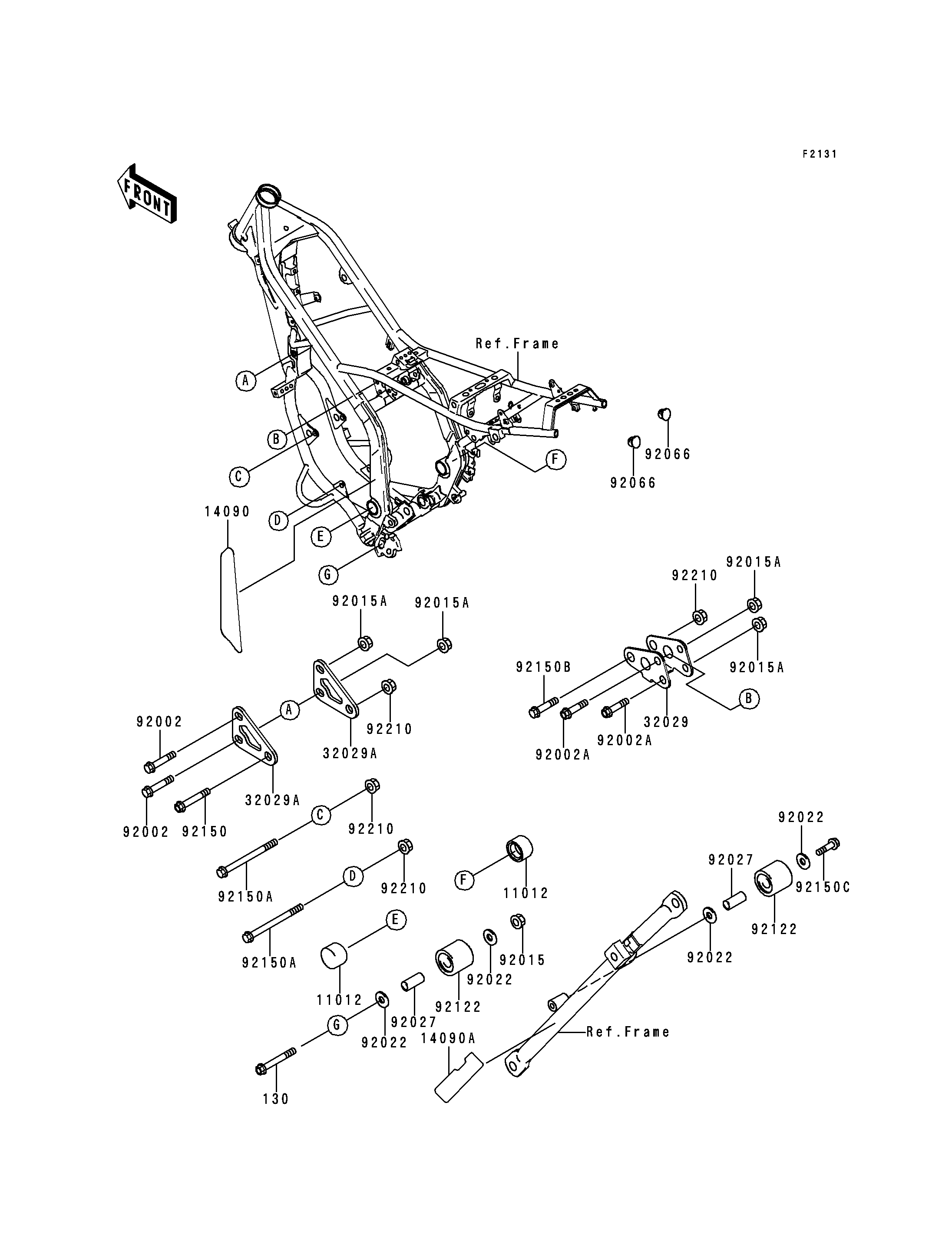

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X55 130 130G0855 1
CAP,AXLE NUT 11012 11012-1591 2
COVER 14090 14090-1514 1
COVER 14090A 14090-1557 1
BRACKET-ENGINE,HEAD,RR 32029 32029-1913 1
BRACKET-ENGINE 32029A 32029-1944 2
BOLT 92002 92002-1221 2
BOLT,FLANGED,8X47 92002A 92002-1850 2
NUT,8MM 92015 92015-1432 1
NUT,FLANGED,LOCK,8MM 92015A 92015-1668 4
WASHER,8.5X20X1.6 92022 92022-1561 4
COLLAR,CHAIN ROLLER 92027 92027-1670 2
PLUG 92066 92066-1093 2
ROLLER,CHAIN GUIDE 92122 92122-1153 2
BOLT,FLANGED,10X57 92150 92150-1227 1
BOLT,FLANGED,10X105 92150A 92150-1624 2
BOLT,FLANGED,10X51 92150B 92150-1719 1
BOLT,FLANGED,8X40 92150C 92150-1961 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 4
