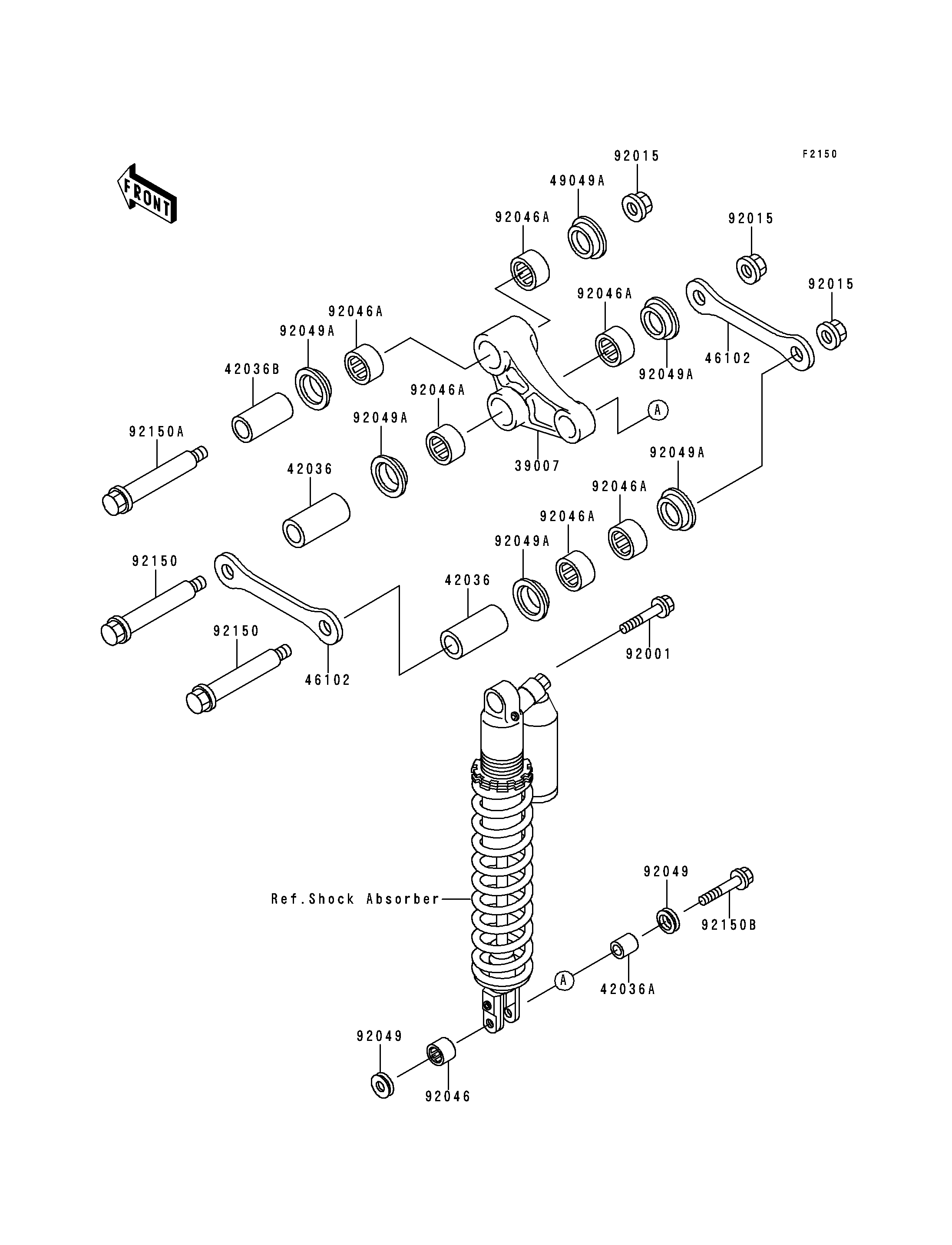

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1229 1
SLEEVE,15X22X57 42036 42036-1245 2
SLEEVE,10X16X19 42036A 42036-1248 1
SLEEVE,15X22X45 42036B 42036-1309 1
ROD,SUSPENSION 46102 46102-1358 2
BOLT,10X44 92001 92001-1499 1
NUT,FLANGED,12MM 92015 92015-1433 3
BEARING-NEEDLE,16BM2212 92046 92046-1192 1
BEARING-NEEDLE,22BM2816 92046A 92046-1216 6
SEAL-OIL 92049 92049-1330 2
SEAL-OIL,MHA22 28 5.7F-1 92049A 92049-1402 6
BOLT,ROD,12X85 92150 92150-1213 2
BOLT,FLANGED,12X76 92150A 92150-1701 1
BOLT,FLANGED,10X40 92150B 92150-1711 1
