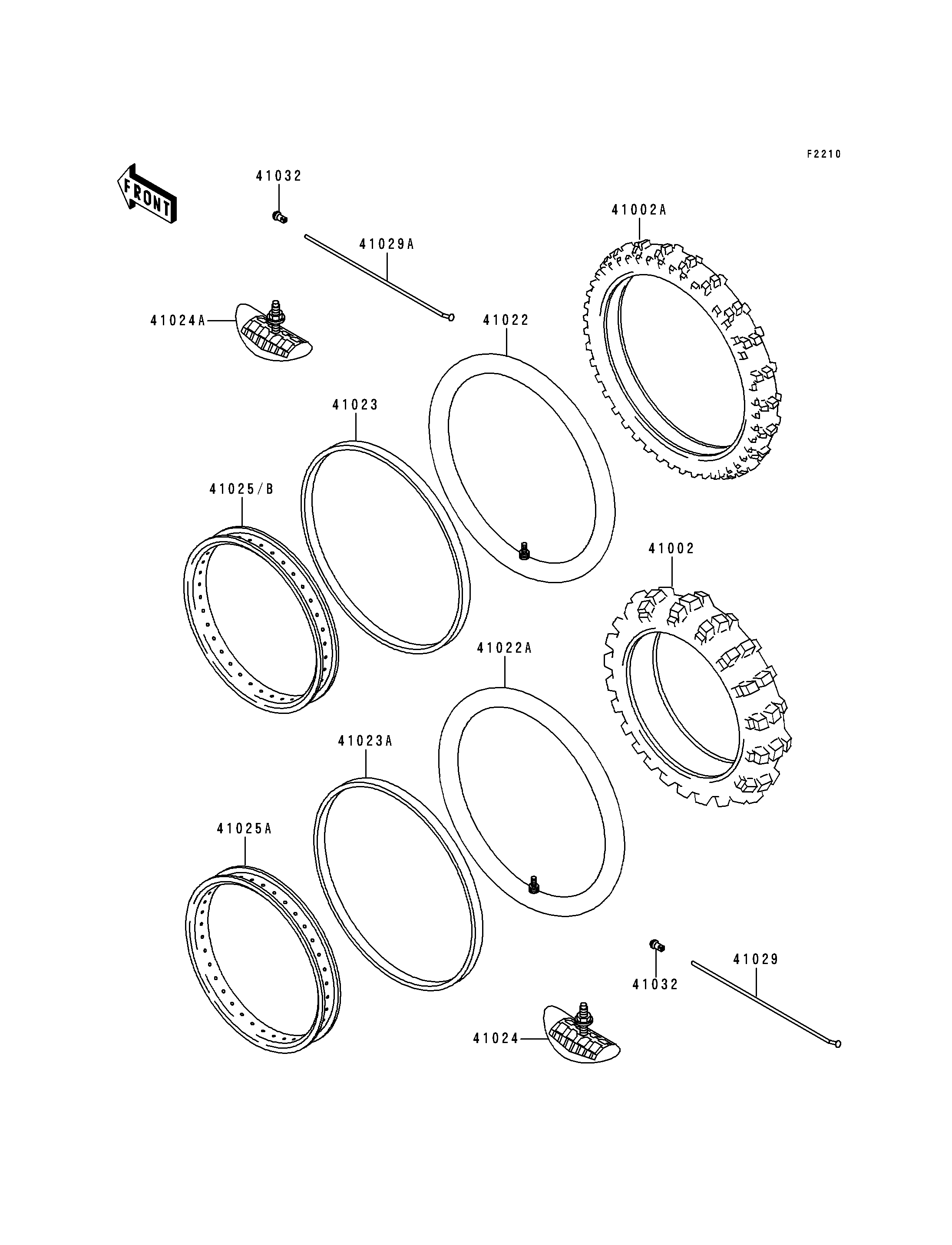

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,RR,100/100-18 59M,K695(D) 41002 41002-1753 1
TIRE,FR,80/100-21 51M,K490J(D) 41002A 41002-1803 1
TUBE-TIRE,80/100-21(D) 41022 41022-1118 1
TUBE-TIRE,100/100-18(D) 41022A 41022-1119 1
BAND-RIM,80/100-21(D) 41023 41023-1069 1
BAND-RIM,100/100-18(D) 41023A 41023-1070 1
STOPPER-RIM,2.15-M(DUNLOP) 41024 41024-009 1
STOPPER-RIM,1.60-M(DUNLOP) 41024A 41024-010 1
RIM,FR,1.60X21 41025 41025-1286 1
RIM,RR,2.15X18 41025A 41025-1287 1
SPOKE-INNER,RR,189MMX160D 41029 41029-1199 36
SPOKE-INNER,FR,228MMX165D 41029A 41029-1206 36
NIPPLE-SPOKE 41032 41032-1061 72
