Part Item Information

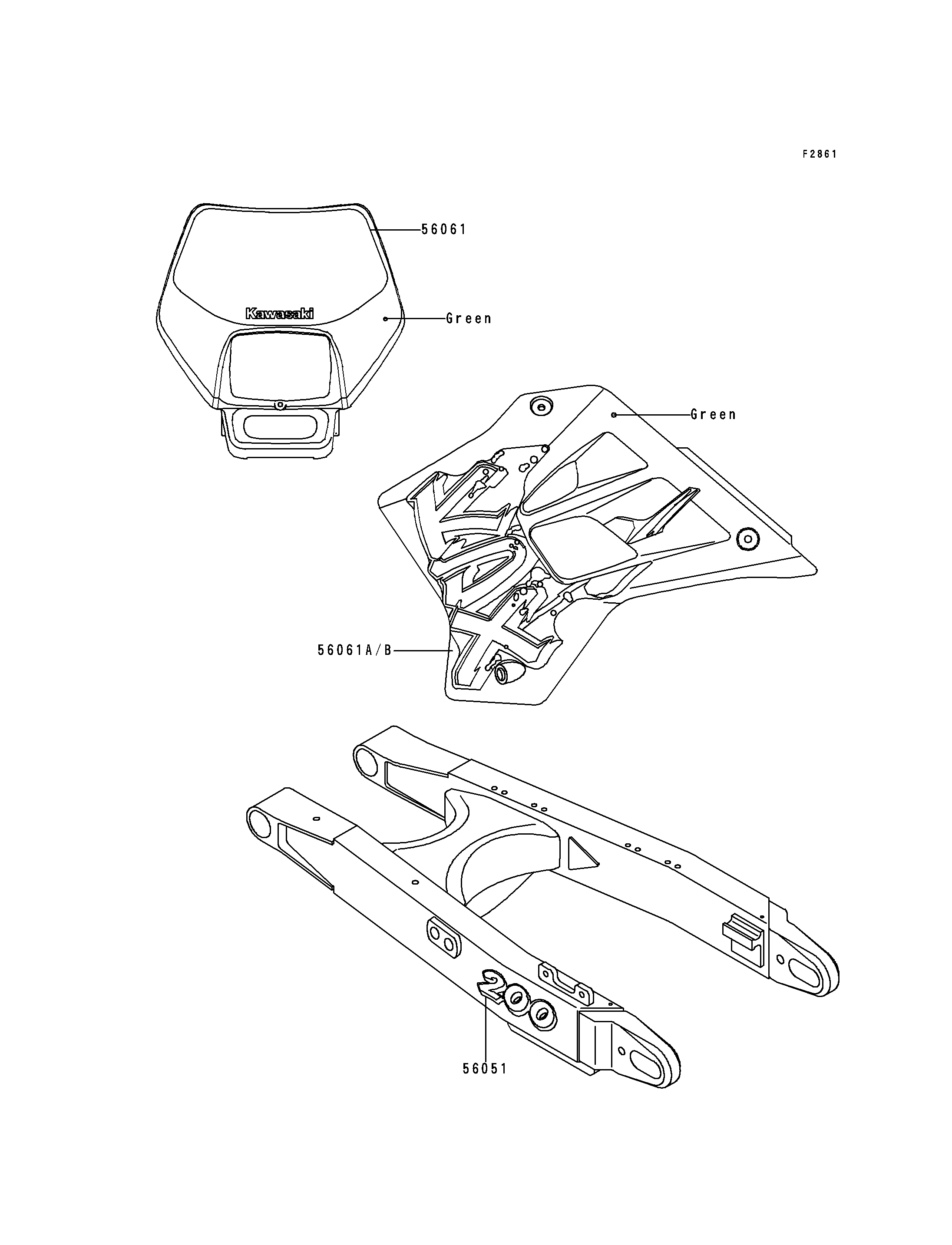

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SWING ARM,200 56051 56051-1179 2
PATTERN,HEAD LAMP COVER 56061 56061-1033 1
PATTERN,SHROUD,LH 56061A 56061-1100 1
PATTERN,SHROUD,RH 56061B 56061-1101 1
