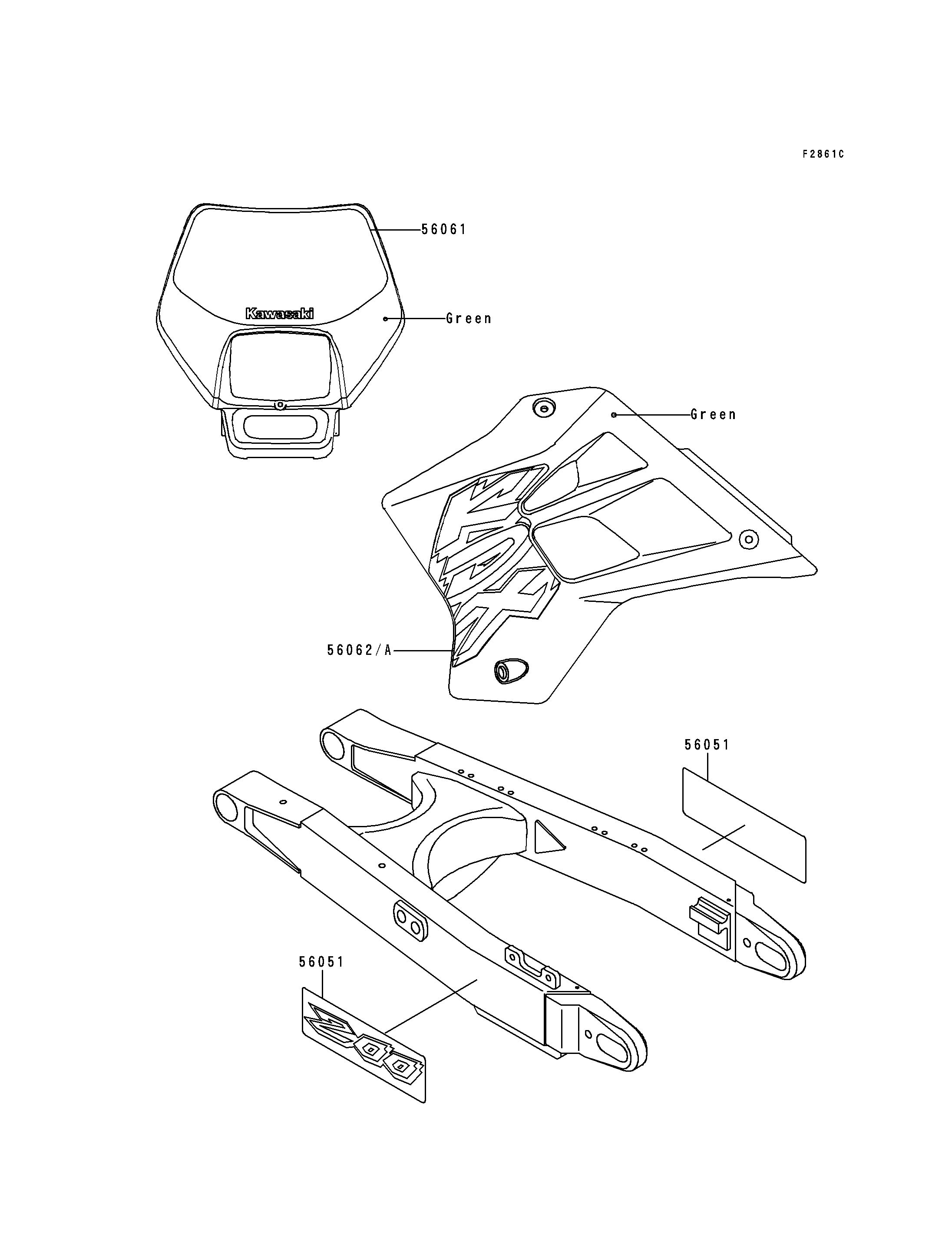

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SWING ARM,200 56051 56051-1641 2
PATTERN,HEAD LAMP COVER 56061 56061-1044 1
PATTERN,SHROUD,LH 56062 56062-1113 1
PATTERN,SHROUD,RH 56062A 56062-1114 1
