Parts Diagrams |
11009
11009
11009A
11009A
13159
13159
15001
15001
16002
16002
16003
16003
16004
16004
16009
16009
16009A
16009A
16009B
16009B
16009C
16009C
16009D
16009D
16014
16014
16016
16016
16021
16021
16025
16025
16030
16030
16031
16031
16044
16044
16049
16049
16065
16065
92036
92036
92037
92037
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037C
92037C
92037D
92037D
92037D
92037D
92043
92043
92055
92055
92059
92059
92059A
92059A
92059A
92059A
92059B
92059B
132
132
132
132
223
223
223
223
223
223
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92064
92064
92064A
92064A
92064B
92064B
92064C
92064C
92064D
92064D
92081
92081
92143
92143
92144
92144
92144A
92144A
92170
92170
92170
92170

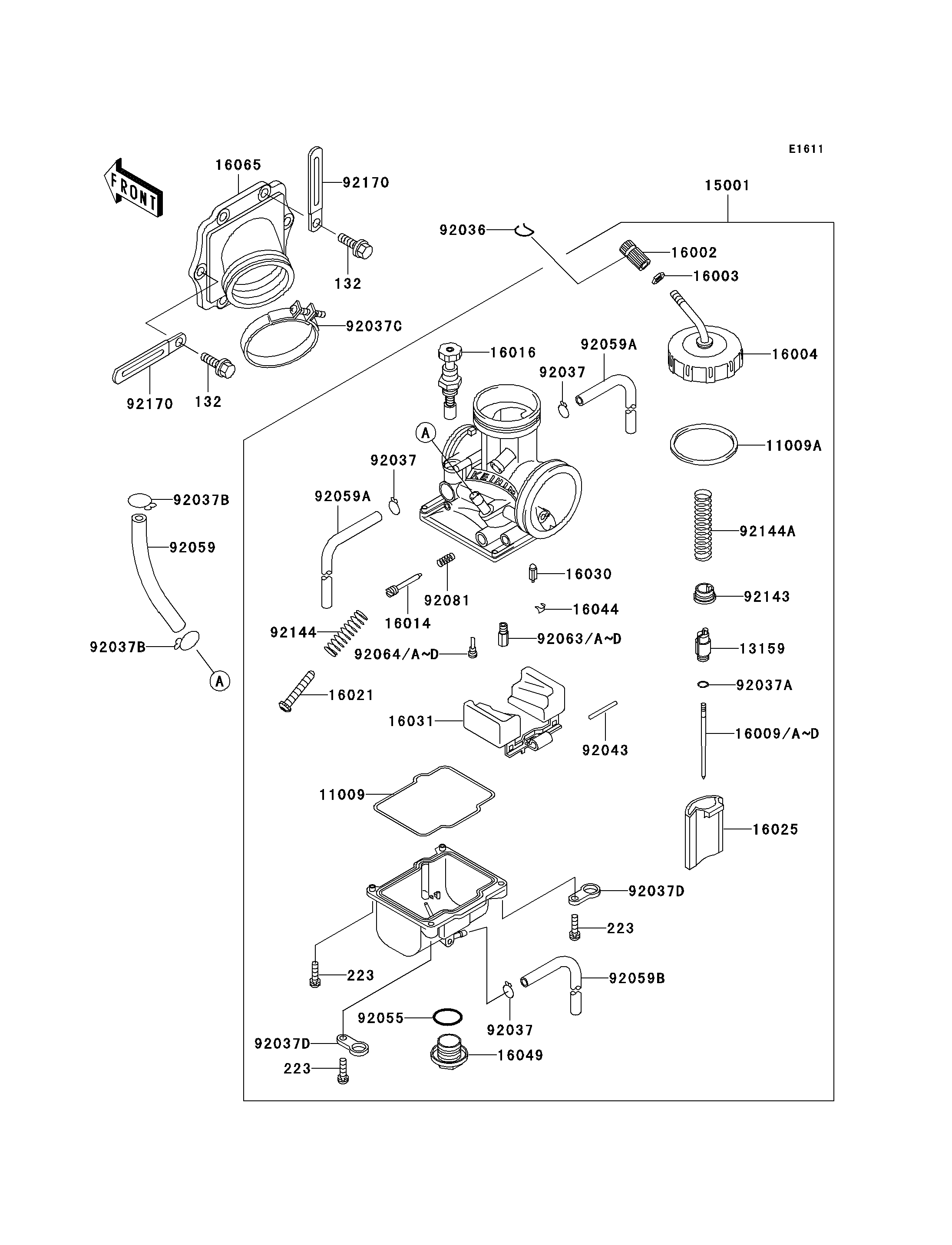

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FLOAT CHAMBER | 11009 | 11009-1716 | 1 | ||
GASKET,CHAMBER CAP | 11009A | 11009-1717 | 1 | ||
CONNECTOR,THROTTLE CABLE | 13159 | 13159-1063 | 1 | ||
CARBURETOR-ASSY | 15001 | 15001-1981 | 1 | ||
ADJUSTER-CABLE | 16002 | 16002-1057 | 1 | ||
NUT,CABLE ADJUST LOCK | 16003 | 16003-004 | 1 | ||
CAP-CHAMBER | 16004 | 16004-1070 | 1 | ||
NEEDLE-JET,R1171L/2AFLM | 16009 | 16009-1823 | 1 | (OPTION) | |
NEEDLE-JET,R1172L/2AFLN | 16009A | 16009-1824 | 1 | (OPTION) | |
NEEDLE-JET,R1173L/2AFLP | 16009B | 16009-1825 | 1 | ||
NEEDLE-JET,R1174L/2AFLQ | 16009C | 16009-1826 | 1 | (OPTION) | |
NEEDLE-JET,R1175L/2AFLR | 16009D | 16009-1827 | 1 | (OPTION) | |
SCREW-PILOT AIR | 16014 | 16014-1058 | 1 | ||
PLUNGER,STARTER | 16016 | 16016-1075 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1161 | 1 | ||
VALVE-THROTTLE,CA5 | 16025 | 16025-1172 | 1 | ||
VALVE-FLOAT | 16030 | 16030-1057 | 1 | ||
FLOAT | 16031 | 16031-1067 | 1 | ||
CLAMP,FLOAT VALVE | 16044 | 16044-007 | 1 | ||
COVER-MAIN JET | 16049 | 16049-1051 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1298 | 1 | ||
RING-SNAP | 92036 | 92036-018 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1396 | 3 | ||
CLAMP,JET NEEDLE | 92037A | 92037-1401 | 1 | ||
CLAMP,TUBE | 92037B | 92037-147 | 2 | ||
CLAMP | 92037C | 92037-1843 | 1 | ||
CLAMP,HOSE | 92037D | 92037-1969 | 2 | ||
PIN,FLOAT | 92043 | 92043-1207 | 1 | ||
RING-O,MAIN JET COVER | 92055 | 92055-1167 | 1 | ||
TUBE | 92059 | 92059-1888 | 1 | ||
TUBE,4X7X420 | 92059A | 92059-1896 | 2 | ||
TUBE,3.5X6.5X330 | 92059B | 92059-1897 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132Y0620 | 6 | ||
SCREW-PAN-WS-CROS | 223 | 223C0416 | 4 | ||
JET-MAIN,#140 | 92063 | 92063-1360 | 1 | (OPTION) | |
JET-MAIN,#142 | 92063A | 92063-1361 | 1 | (OPTION) | |
JET-MAIN,#145 | 92063B | 92063-1362 | 1 | ||
JET-MAIN,#148 | 92063C | 92063-1363 | 1 | (OPTION) | |
JET-MAIN,#150 | 92063D | 92063-1364 | 1 | (OPTION) | |
JET-PILOT,#38 | 92064 | 92064-1139 | 1 | (OPTION) | |
JET-PILOT,#40 | 92064A | 92064-1140 | 1 | (OPTION) | |
JET-PILOT,#42 | 92064B | 92064-1141 | 1 | ||
JET-PILOT,#45 | 92064C | 92064-1142 | 1 | (OPTION) | |
JET-PILOT,#48 | 92064D | 92064-1143 | 1 | (OPTION) | |
SPRING,ADJUST SCREW | 92081 | 92081-1555 | 1 | ||
COLLAR,THROTTLE VALVE | 92143 | 92143-1201 | 1 | ||
SPRING,THROTTLE STOP SCREW | 92144 | 92144-1257 | 1 | ||
SPRING,THROTTLE VALVE | 92144A | 92144-1305 | 1 | ||
CLAMP | 92170 | 92170-1514 | 2 |
