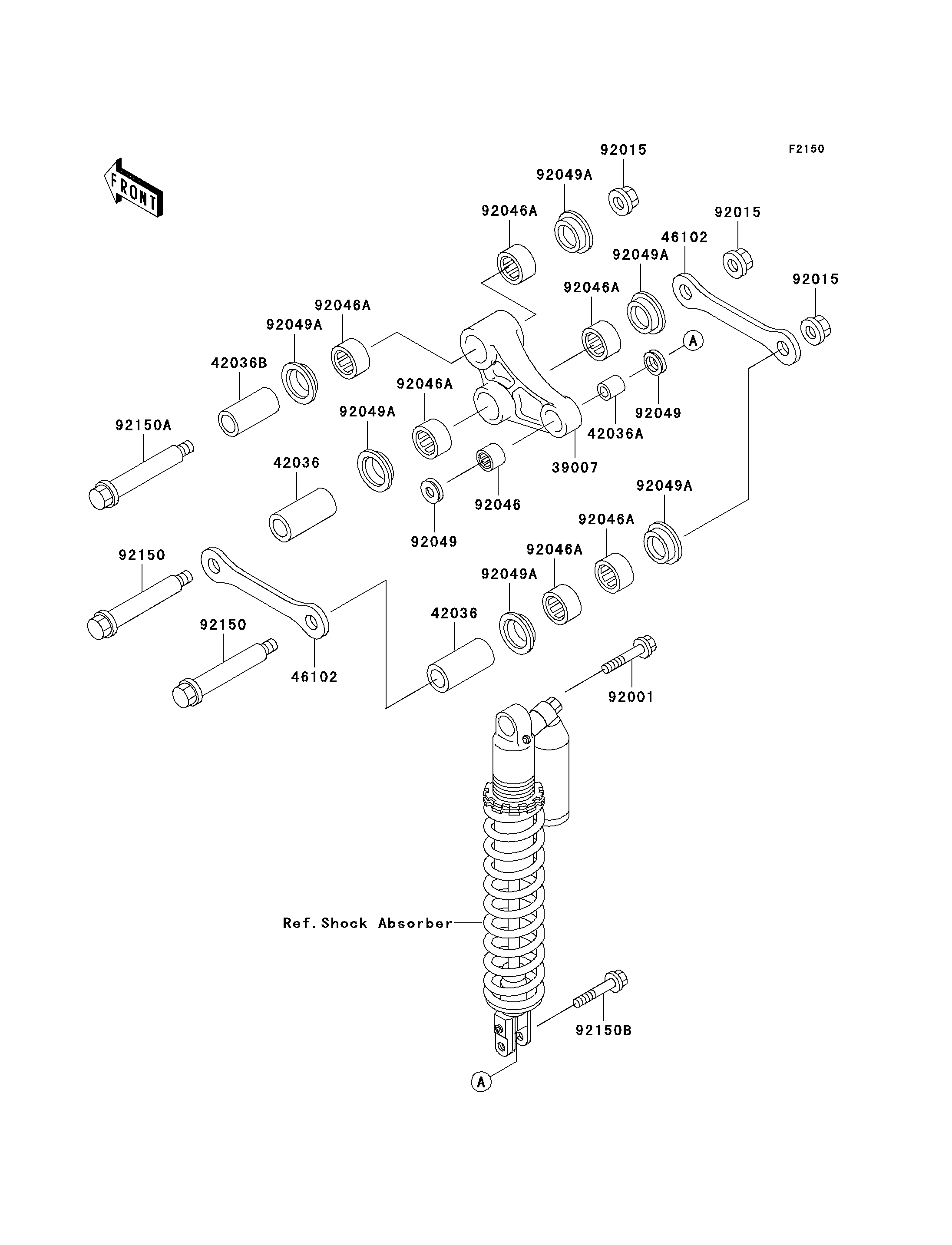

Parts Diagrams |
39007
42036
42036
42036A
42036B
46102
46102
92001
92015
92015
92015
92046
92046A
92046A
92046A
92046A
92046A
92046A
92049
92049
92049A
92049A
92049A
92049A
92049A
92049A
92150
92150
92150A
92150B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ARM-SUSP,UNI TRAK | 39007 | 39007-1229 | 1 | ||
SLEEVE,15X22X57 | 42036 | 42036-1245 | 2 | ||
SLEEVE,10X16X19 | 42036A | 42036-1248 | 1 | ||
SLEEVE,15X22X45 | 42036B | 42036-1309 | 1 | ||
ROD,SUSPENSION | 46102 | 46102-1358 | 2 | ||
BOLT,FLANGED,10X44 | 92001 | 92001-1499 | 1 | ||
NUT,FLANGED,12MM | 92015 | 92015-1433 | 3 | ||
BEARING-NEEDLE,16BM2212 | 92046 | 92046-1192 | 1 | ||
BEARING-NEEDLE,22BM2816 | 92046A | 92046-1216 | 6 | ||
SEAL-OIL | 92049 | 92049-1330 | 2 | ||
SEAL-OIL,MHA22 28 5.7F-1 | 92049A | 92049-1402 | 6 | ||
BOLT,ROD,12X85 | 92150 | 92150-1213 | 2 | ||
BOLT,FLANGED,12X76 | 92150A | 92150-1701 | 1 | ||
BOLT,FLANGED,10X40 | 92150B | 92150-1711 | 1 |
ARM-SUSP,UNI TRAK | |
REF # | 39007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,15X22X57 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE,10X16X19 | |
REF # | 42036A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,15X22X45 | |
REF # | 42036B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,SUSPENSION | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X44 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,12MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,16BM2212 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,22BM2816 | |
REF # | 92046A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,MHA22 28 5.7F-1 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,ROD,12X85 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,12X76 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X40 | |
REF # | 92150B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
