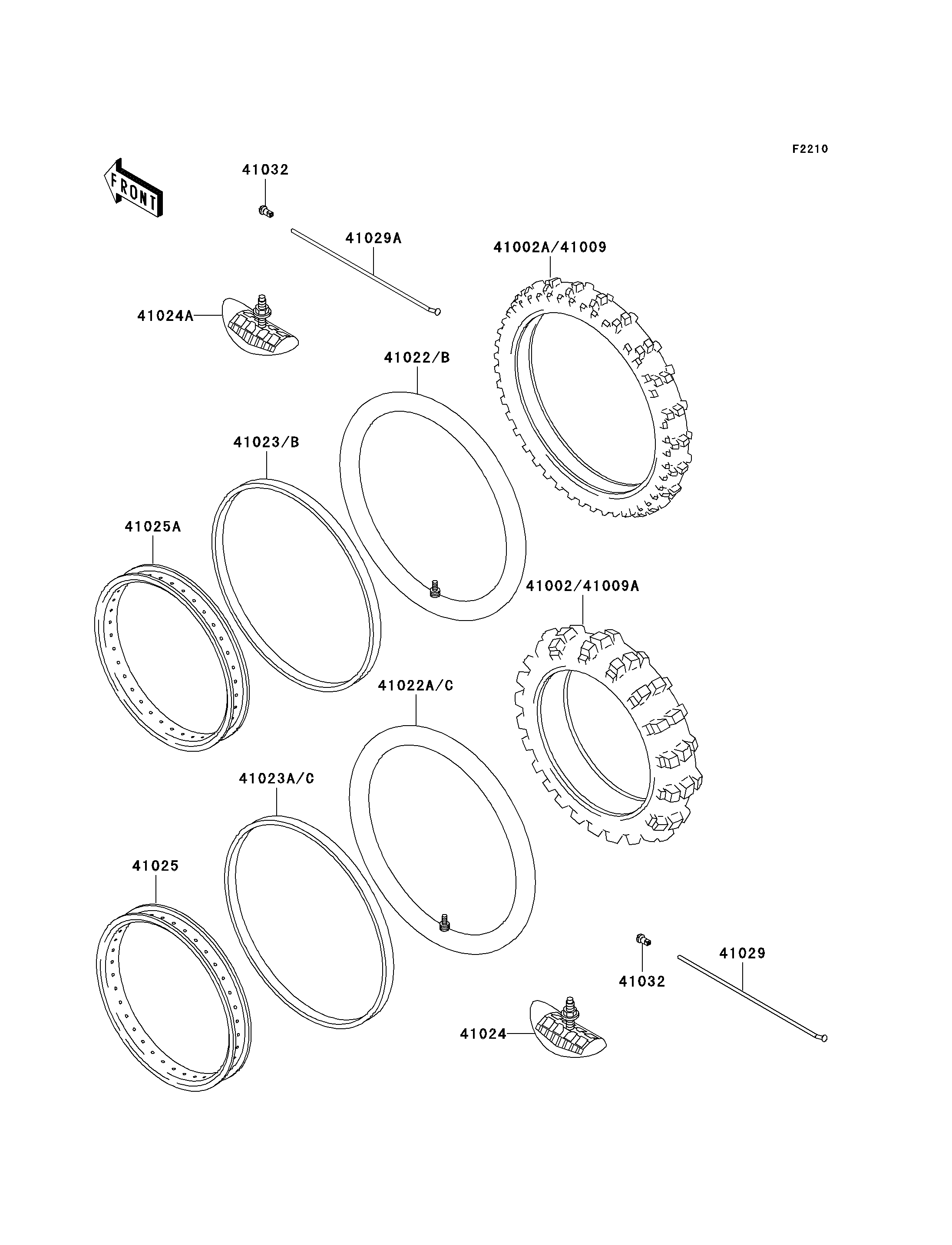

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,80/100-21 51M,D739FA(D 41009 41009-0008 1
TIRE,RR,100/100-18 59M,D739(D) 41009A 41009-0009 1
TUBE-TIRE,80/100-21(D) 41022B 41022-1244 1
TUBE-TIRE,100/100-18(D) 41022C 41022-1245 1
BAND-RIM,21XWM1.60-1.85(D) 41023B 41023-1144 1
BAND-RIM,18XWM/MT 1.85-2.15(D) 41023C 41023-1145 1
STOPPER-RIM,2.15-M(DUNLOP) 41024 41024-009 1
STOPPER-RIM,1.60-M(DUNLOP) 41024A 41024-010 1
RIM,RR,2.15X18 41025 41025-1287 1
RIM,FR,1.60X21,SILVER 41025A 41025-1365-WA 1
SPOKE-INNER,RR,189MMX160D 41029 41029-1199 36
SPOKE-INNER,FR,228MMX165D 41029A 41029-1206 36
NIPPLE-SPOKE 41032 41032-1061 72
