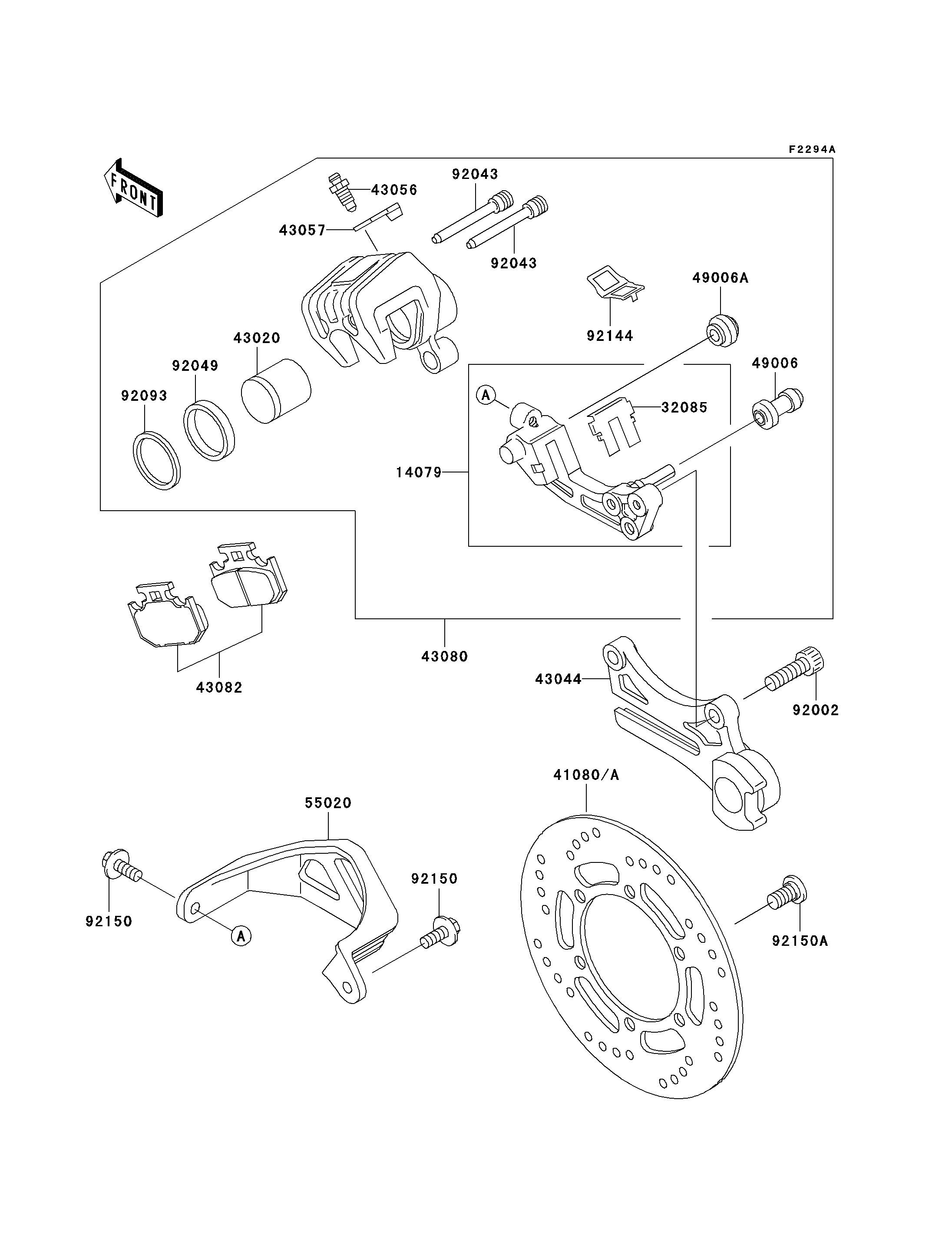

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-ASSY,REAR CALIPER 14079 14079-1070 1
STOPPER,PAD 32085 32085-1315 1
DISC,RR 41080A 41080-1528 1
PISTON-COMP-BRAKE 43020 43020-1099 1
HOLDER-COMP-CALIPER 43044 43044-1114 1
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,RR 43080 43080-5112 1
PAD-ASSY-BRAKE 43082 43082-1131 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
GUARD,RR CALIPER,WHITE 55020 55020-1488-RZ 1
BOLT,SOCKET,8X25 92002 92002-1442 2
PIN,HANGER 92043 92043-1416 2
SEAL-OIL,PISTON 92049 92049-1331 1
SEAL,PISTON 92093 92093-1272 1
SPRING,PAD 92144 92144-1364 1
BOLT,FLANGED,6X16 92150 92150-1506 2
BOLT,DISC PLATE,8X15 92150A 92150-1811 6
