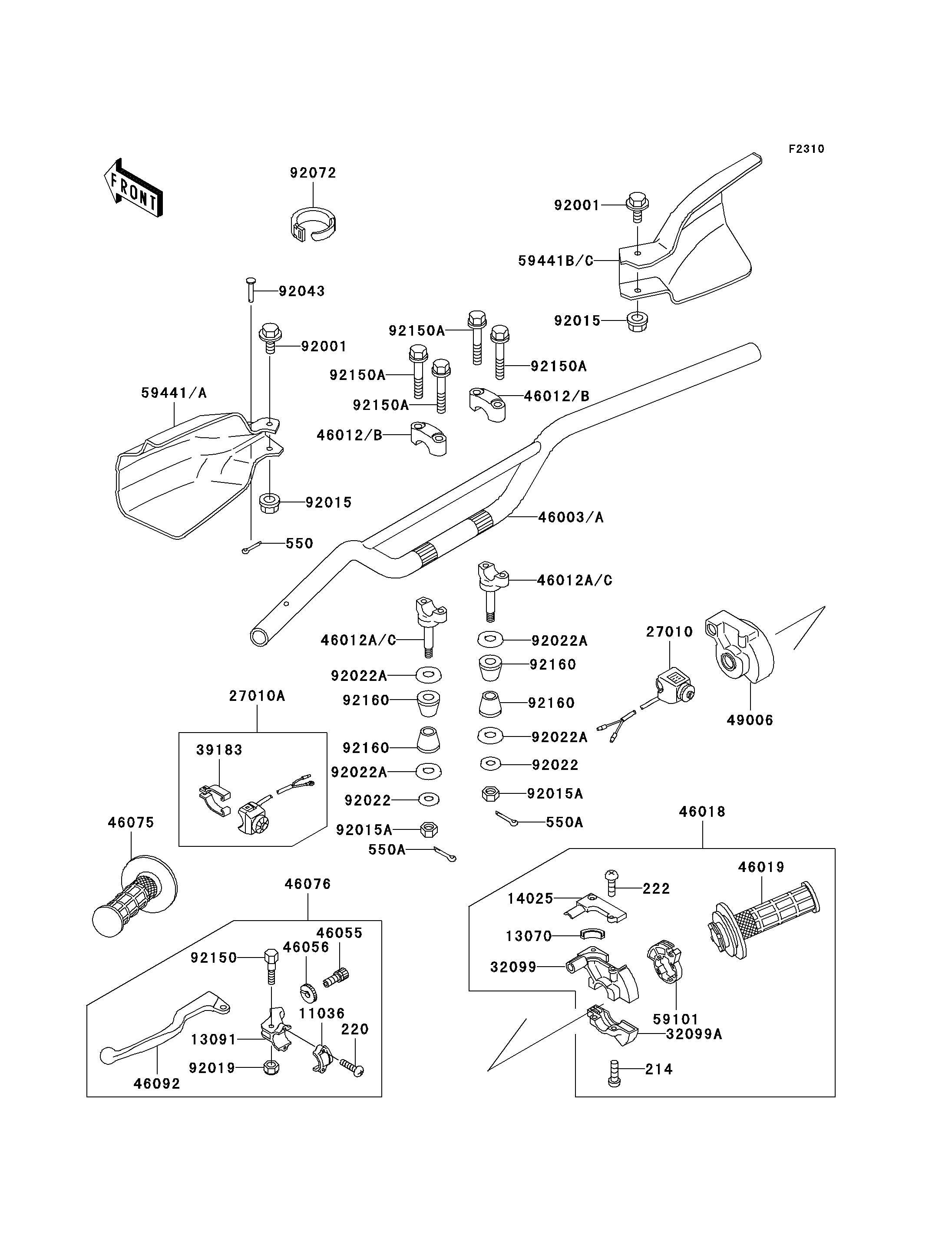

2004 KDX220R - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
214
214
11036
11036
13070
13070
13091
13091
14025
14025
27010
27010
27010A
27010A
32099
32099
32099A
32099A
39183
39183
46003
46003
46012B
46012B
46012B
46012B
46012C
46012C
46012C
46012C
46018
46018
46019
46019
46055
46055
46056
46056
46075
46075
46076
46076
46092
46092
49006
49006
59101
59101
59441A
59441A
59441C
59441C
92001
92001
92001
92001
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92019
92019
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92043
92043
92072
92072
92150
92150
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92160
92160
92160
92160
92160
92160
92160
92160
220
220
222
222
550
550
550A
550A
550A
550A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN+- 214 214C0518 2
BRACKET-A,LEVER HOLDER 11036 11036-1297 1
GUIDE,THROTTLE PEACE 13070 13070-1073 1
HOLDER,CLUTCH LEVER 13091 13091-1131 1
COVER,THROTTLE CASE UPP 14025 14025-1646 1
SWITCH,LIGHTING 27010 27010-1279 1
SWITCH,ENGINE STOP 27010A 27010-1350 1
CASE,THROTTLE UPP 32099 32099-1036 1
CASE,THROTTLE LWR 32099A 32099-1044 1
BAND-ASSY,ENGINE STOP SWITCH 39183 39183-1059 1
HANDLE,SILVER NO.25 46003 46003-1399-CE 1
HOLDER-HANDLE,UPP 46012B 46012-1191 2
HOLDER-HANDLE,LWR 46012C 46012-1263 2
GRIP-ASSY-THROTTLE 46018 46018-1161 1
GRIP-ASSY,THROTTLE 46019 46019-1054 1
SCREW,CABLE ADJUST,8MM 46055 46055-009 1
NUT,CABLE ADJUST 46056 46056-006 1
GRIP,LH 46075 46075-1024 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1163 1
LEVER-GRIP,CLUTCH 46092 46092-1110 1
BOOT,THROTTLE CASE 49006 49006-1097 1
REEL,THROTTLE 59101 59101-1103 1
COVER-HANDLE,LH,L.GREEN 59441A 59441-1094-6W 1
COVER-HANDLE,RH,L.GREEN 59441C 59441-1108-6W 1
BOLT,FLANGED,6X10 92001 92001-1034 2
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
NUT,LOCK,10MM 92015A 92015-1962 2
NUT,LOCK,6MM 92019 92019-008 1
WASHER,10.2X28X2 92022 92022-1088 2
WASHER 92022A 92022-1737 4
PIN,5X27.5 92043 92043-1434 1
BAND,L=140 92072 92072-1293 2
BOLT 92150 92150-1291 1
BOLT,FLANGED,8X35 92150A 92150-1696 4
DAMPER 92160 92160-1521 4
SCREW-PAN-CROSS 220 220F0514 2
SCREW-CSK-RD-CROS 222 222E0412 2
PIN-COTTER,1.2X10 550 550D1210 1
PIN-COTTER,2.0X20 550A 550D2020 2
