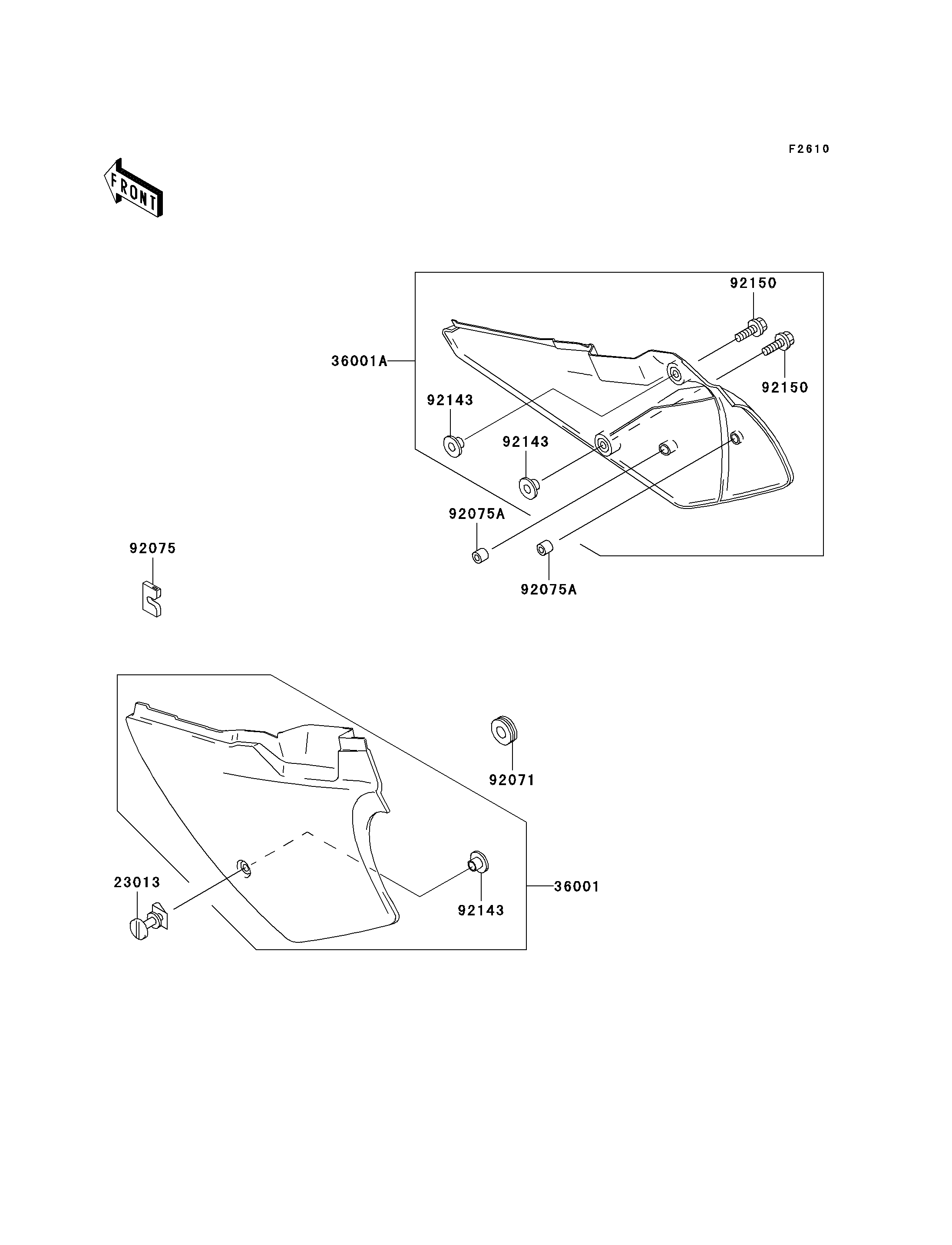

23013
36001
36001A
92071
92075
92075A
92075A
92143
92143
92143
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-ASSY 23013 23013-1051 1
COVER-SIDE,LH,S.WHITE 36001 36001-1526-266 1
COVER-SIDE,RH,S.WHITE 36001A 36001-1527-266 1
GROMMET 92071 92071-056 1
DAMPER 92075 92075-1967 1
DAMPER,AIR FILTER 92075A 92075-217 2
COLLAR 92143 92143-1196 3
BOLT,6X20 92150 92150-1339 2
