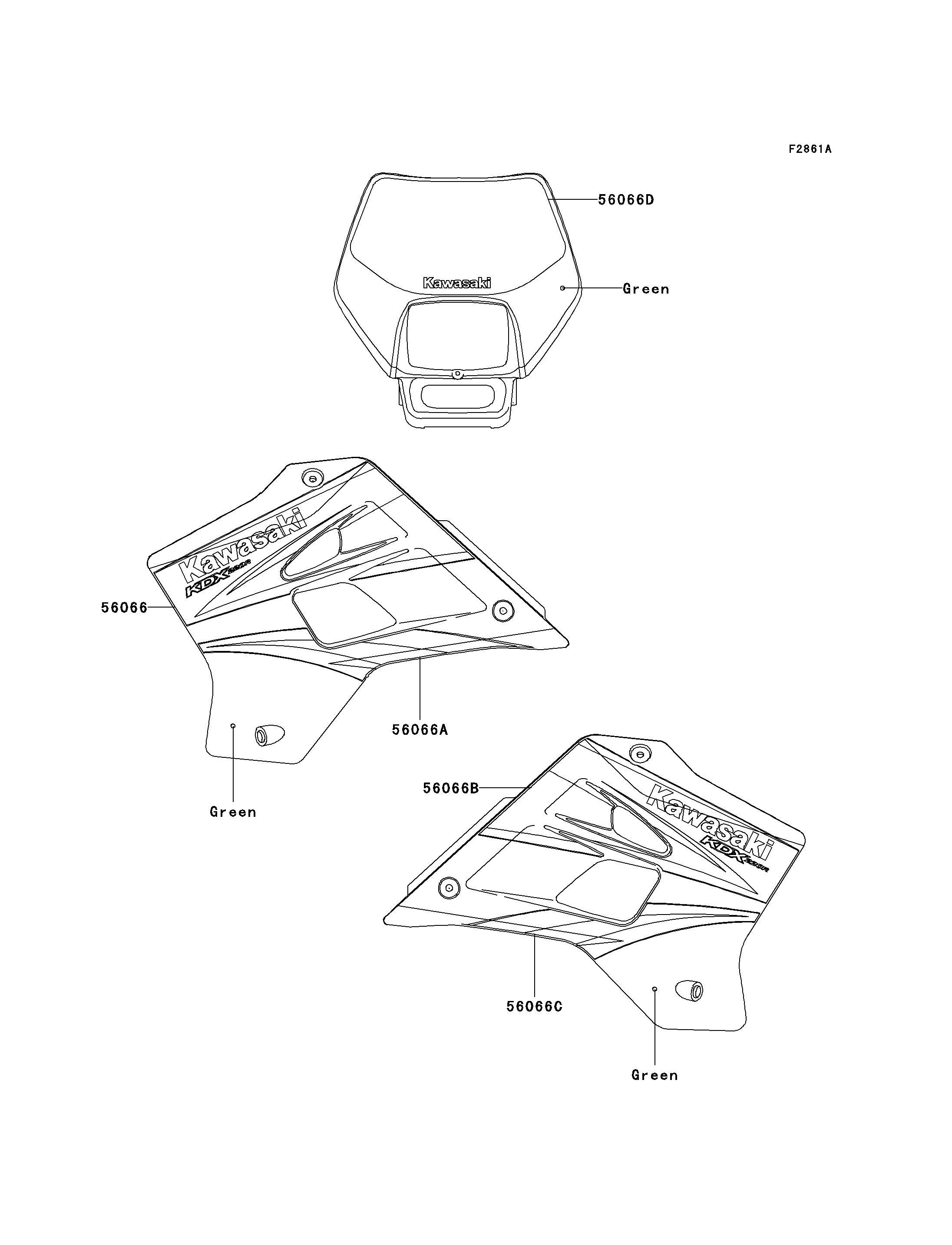

56066
56066A
56066B
56066C
56066D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PATTERN,SHROUD,UPP,LH 56066 56066-0393 1
PATTERN,SHROUD,LWR,LH 56066A 56066-0394 1
PATTERN,SHROUD,UPP,RH 56066B 56066-0395 1
PATTERN,SHROUD,LWR,RH 56066C 56066-0396 1
PATTERN,HEAD LAMP COVER 56066D 56066-1089 1
