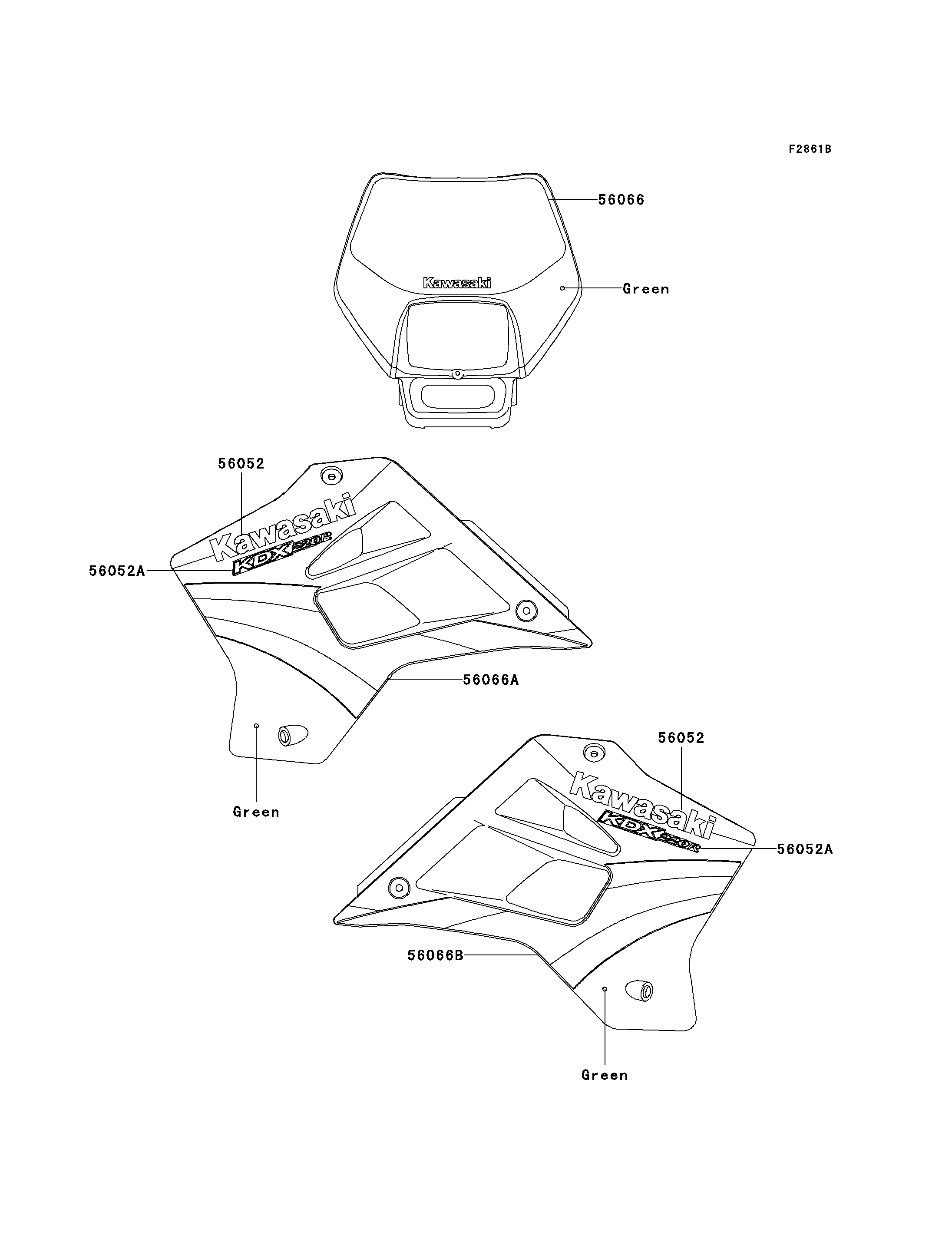

56052
56052
56052A
56052A
56066
56066A
56066B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SHROUD,KAWASAKI 56052 56052-0395 2
MARK,SHROUD,KDX220R 56052A 56052-0432 2
PATTERN,HEAD LAMP COVER 56066 56066-1089 1
PATTERN,SHROUD,LH 56066A 56066-1637 1
PATTERN,SHROUD,RH 56066B 56066-1638 1
