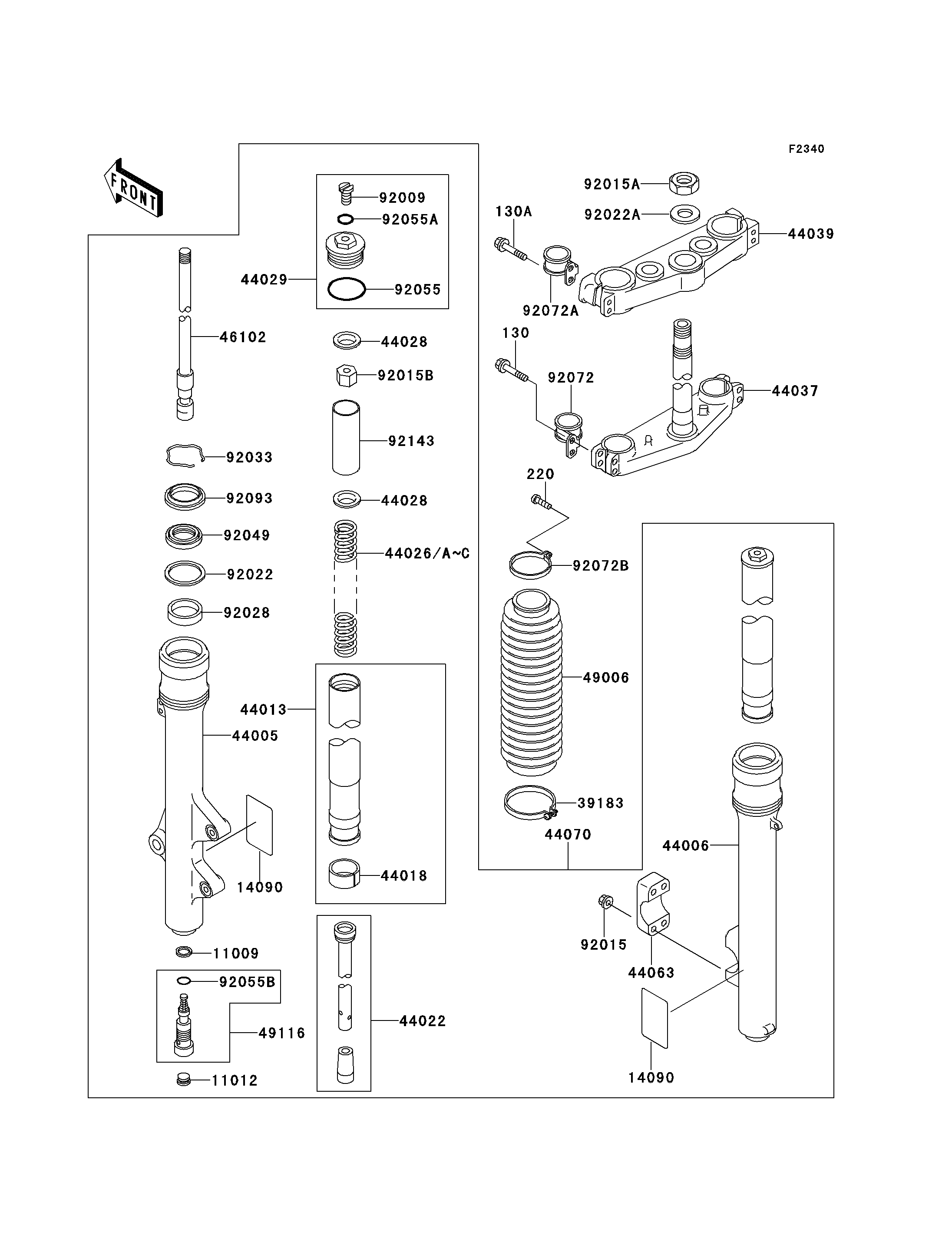

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FORK CYLINDER BOLT | 11009 | 11009-1592 | 2 | ||
CAP,FORK CYLINDER | 11012 | 11012-1381 | 2 | ||
COVER | 14090 | 14090-1564 | 2 | ||
BAND-ASSY,BOOT | 39183 | 39183-1060 | 2 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1345 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-1343 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1403 | 2 | ||
PISTON-FORK,INNER PIPE | 44018 | 44018-1056 | 2 | ||
CYLINDER-FORK | 44022 | 44022-1299 | 2 | ||
SPRING-FRONT FORK,K=0.35 | 44026 | 44026-1570 | 2 | ||
SPRING-FRONT FORK,K=0.34 | 44026A | 44026-1574 | 2 | (OPTION) | |
SPRING-FRONT FORK,K=0.36 | 44026B | 44026-1575 | 2 | (OPTION) | |
SPRING-FRONT FORK,K=0.37 | 44026C | 44026-1576 | 2 | (OPTION) | |
GUIDE-FORK SPRING | 44028 | 44028-1010 | 4 | ||
SEAT-FORK SPRING | 44029 | 44029-1152 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1331 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1256 | 1 | ||
HOLDER-FRONT AXLE | 44063 | 44063-1056 | 1 | ||
DAMPER-ASSY,FORK | 44070 | 44070-1369 | 1 | ||
ROD,FORK | 46102 | 46102-1376 | 2 | ||
BOOT,FORK,J.S.VIOLET | 49006 | 49006-1296-VW | 2 | ||
VALVE-ASSY,FORK | 49116 | 49116-1132 | 2 | ||
SCREW | 92009 | 92009-1568 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1078 | 4 | ||
NUT,STEERING STEM,22MM | 92015A | 92015-1653 | 1 | ||
NUT | 92015B | 92015-1839 | 2 | ||
WASHER | 92022 | 92022-1299 | 2 | ||
WASHER,STEERING STEM | 92022A | 92022-1873 | 1 | ||
BUSHING | 92028 | 92028-1581 | 2 | ||
RING-SNAP | 92033 | 92033-1077 | 2 | ||
SEAL-OIL,FORK OUTER TUBE | 92049 | 92049-1316 | 2 | ||
RING-O | 92055 | 92055-1123 | 2 | ||
RING-O | 92055A | 92055-1441 | 2 | ||
RING-O,FORK VALVE | 92055B | 92055-1502 | 2 | ||
BAND,CABLE | 92072 | 92072-1166 | 1 | ||
BAND | 92072A | 92072-1268 | 1 | ||
BAND,BOOT | 92072B | 92072-1316 | 2 | ||
SEAL,FORK DUST | 92093 | 92093-1260 | 2 | ||
BOLT-FLANGED,8X45 | 130 | 130G0845 | 4 | ||
BOLT-FLANGED,8X50 | 130A | 130G0850 | 4 | ||
SCREW-PAN-CROS | 220 | 220B0416 | 2 | ||
COLLAR,FORK,L=90 | 92143 | 92143-1645 | 2 |
