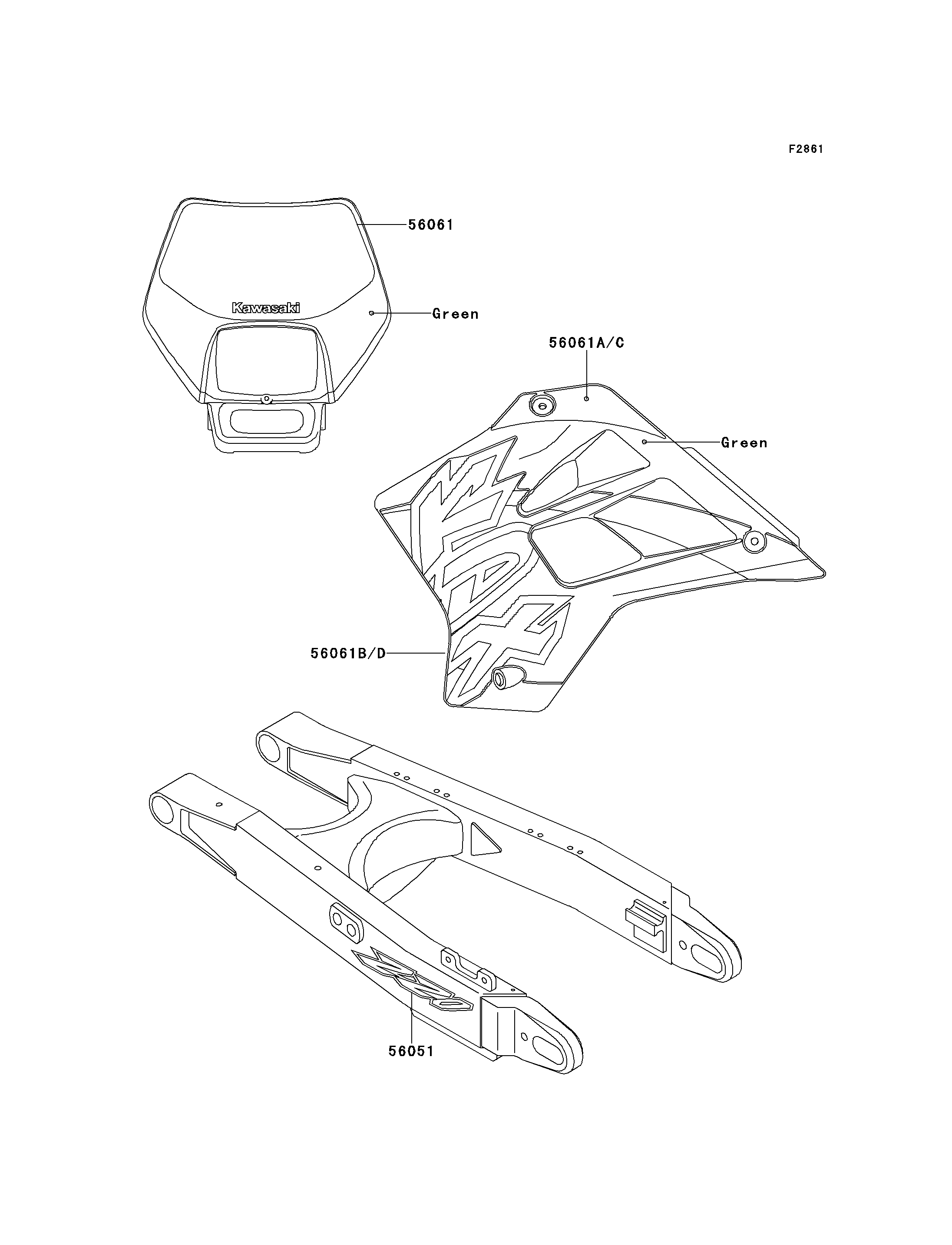

56051
56061
56061A
56061B
56061C
56061D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SWING ARM,220 56051 56051-1510 2
PATTERN,HEAD LAMP COVER 56061 56061-1044 1
PATTERN,SHROUD,UPP,LH 56061A 56061-1792 1
PATTERN,SHROUD,LWR,LH 56061B 56061-1793 1
PATTERN,SHROUD,UPP,RH 56061C 56061-1794 1
PATTERN,SHROUD,LWR,RH 56061D 56061-1795 1
