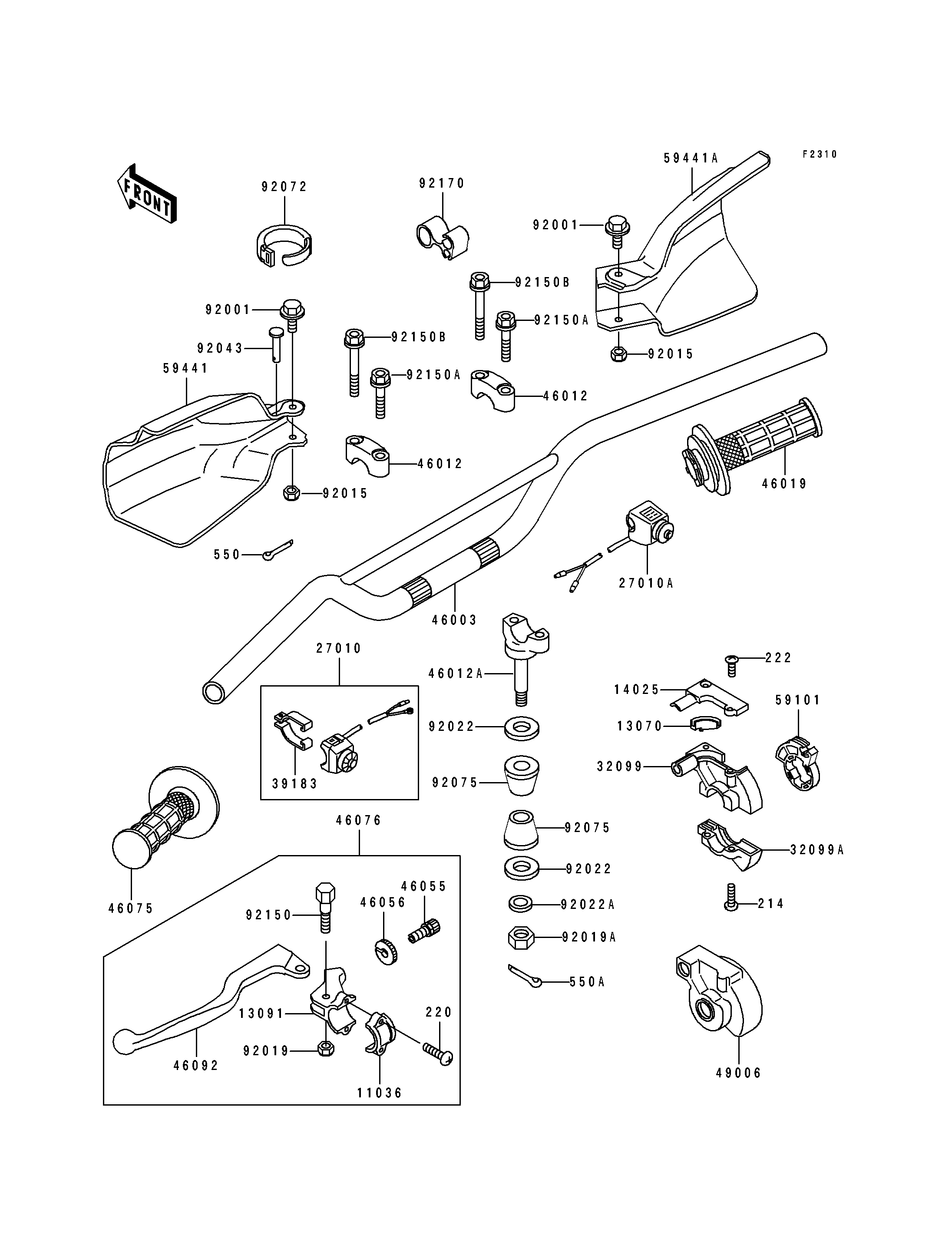

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET-A,LEVER HOLDER | 11036 | 11036-1297 | 1 | ||
GUIDE,THROTTLE PEACE | 13070 | 13070-1073 | 1 | ||
HOLDER,CLUTCH LEVER | 13091 | 13091-1131 | 1 | ||
COVER,THROTTLE CASE UPP | 14025 | 14025-1646 | 1 | ||
SWITCH,ENGINE STOP | 27010 | 27010-1161 | 1 | ||
SWITCH,LIGHTING | 27010A | 27010-1279 | 1 | ||
CASE,THROTTLE UPP | 32099 | 32099-1036 | 1 | ||
CASE,THROTTLE LWR | 32099A | 32099-1044 | 1 | ||
BAND-ASSY,ENGINE STOP SWITCH | 39183 | 39183-1059 | 1 | ||
HANDLE,SILVER NO.25 | 46003 | 46003-1357-CE | 1 | ||
HOLDER-HANDLE | 46012 | 46012-1191 | 2 | ||
HOLDER-HANDLE,LWR | 46012A | 46012-1211 | 2 | ||
GRIP-ASSY,THROTTLE | 46019 | 46019-1054 | 1 | ||
SCREW,CABLE ADJUST,8MM | 46055 | 46055-009 | 1 | ||
NUT,CABLE ADJUST | 46056 | 46056-006 | 1 | ||
GRIP,LH | 46075 | 46075-1024 | 1 | ||
LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-1163 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-1110 | 1 | ||
BOOT,THROTTLE CASE | 49006 | 49006-1097 | 1 | ||
REEL,THROTTLE | 59101 | 59101-1103 | 1 | ||
COVER-HANDLE,LH,L.GREEN | 59441 | 59441-1094-6W | 1 | ||
COVER-HANDLE,RH,L.GREEN | 59441A | 59441-1098-6W | 1 | ||
BOLT,FLANGED,6X10 | 92001 | 92001-1034 | 2 | ||
NUT,LOCK,6MM | 92015 | 92015-1603 | 2 | ||
NUT,LOCK,6MM | 92019 | 92019-008 | 1 | ||
NUT,LOCK,10MM | 92019A | 92019-021 | 2 | ||
WASHER,12.5X30X0.8 | 92022 | 92022-105 | 4 | ||
WASHER,10.2X28X2 | 92022A | 92022-1088 | 2 | ||
PIN,5X27.5 | 92043 | 92043-1434 | 1 | ||
BAND,L=140 | 92072 | 92072-1293 | 2 | ||
DAMPER | 92075 | 92075-1776 | 4 | ||
BOLT | 92150 | 92150-1291 | 1 | ||
BOLT,FLANGED,8X30 | 92150A | 92150-1455 | 2 | ||
BOLT,FLANGED,8X45 | 92150B | 92150-1456 | 2 | ||
CLAMP,BRAKE HOSE | 92170 | 92170-1255 | 1 | ||
SCREW-PAN+- | 214 | 214C0518 | 2 | ||
SCREW-PAN-CROS | 220 | 220C0514 | 2 | ||
SCREW-CSK-RD-CROS | 222 | 222E0412 | 2 | ||
PIN-COTTER,1.2X10 | 550 | 550D1210 | 1 | ||
PIN-COTTER,2.0X20 | 550A | 550D2020 | 2 |
