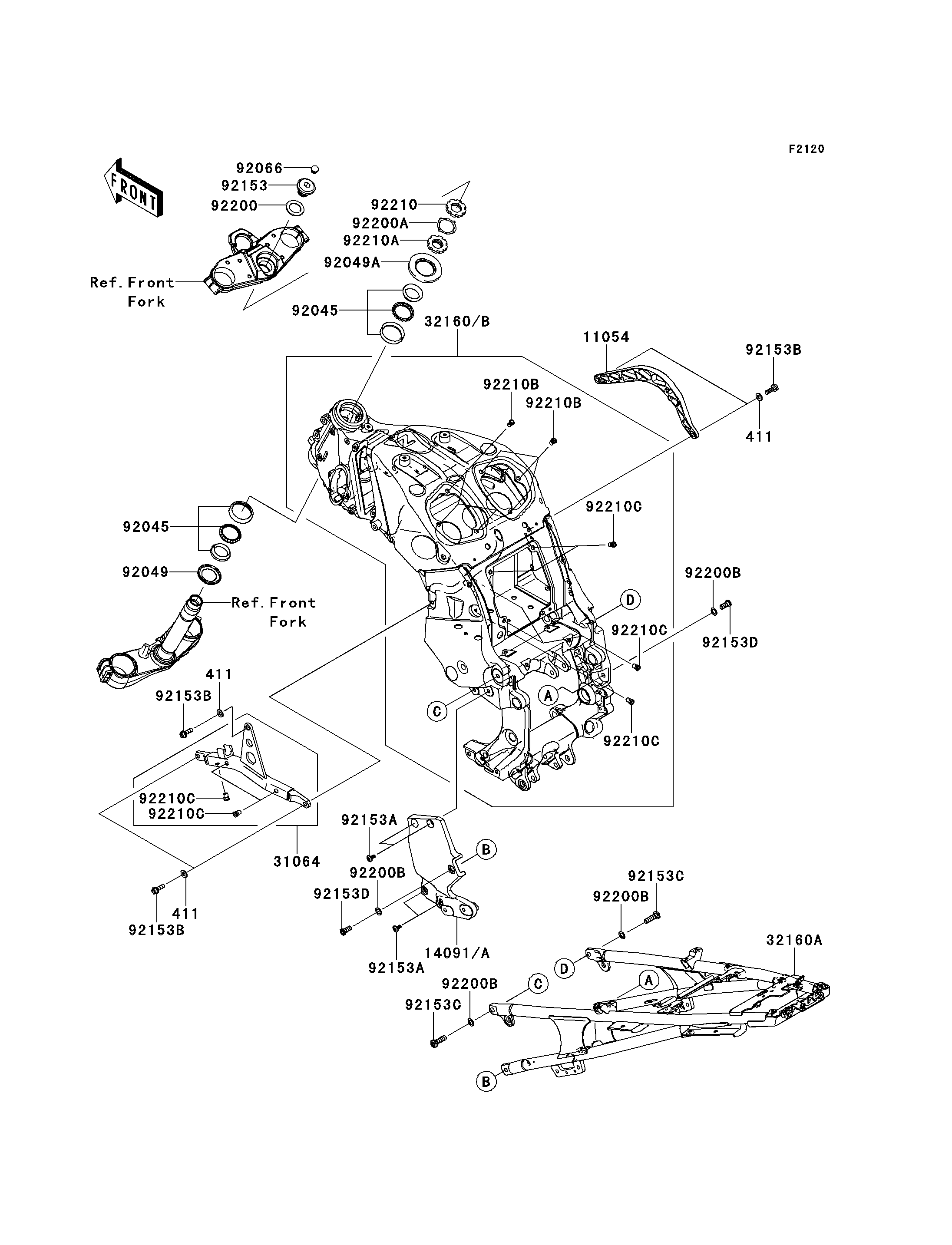

2008 Concours™ 14 - Frame

DOWNLOAD PDF
SELECT A NEW PART
411
411
411
11054
14091
31064
32160
32160A
92045
92045
92049
92049A
92066
92153
92153A
92153A
92153B
92153B
92153B
92153C
92153C
92153D
92153D
92200
92200A
92200B
92200B
92200B
92200B
92210
92210A
92210B
92210B
92210C
92210C
92210C
92210C
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN 411 411AA0800 5
BRACKET,SUB FRAME,RH 11054 11054-1183 1
COVER,FRONT FRAME SHAFT,BLACK 14091 14091-0681-18R 1
PIPE-COMP,SUB FRAME,LH 31064 31064-0109 1
FRAME-COMP,FR,BLACK 32160 32160-0291-18R 1
FRAME-COMP,RR,BLACK 32160A 32160-0294-18R 1
BEARING-BALL,SF07A17PX1V1 92045 92045-1384 2
SEAL-OIL,DS35X55X4 92049 92049-0022 1
SEAL-OIL,MX043N3 92049A 92049-0091 1
PLUG 92066 92066-0071 1
BOLT,26MM 92153 92153-0474 1
BOLT,SOCKET,8X20 92153A 92153-1621 4
BOLT,FLANGED,8X25 92153B 92153-1768 5
BOLT,SOCKET,10X35 92153C 92153-1904 2
BOLT,SOCKET,10X22 92153D 92153-1905 2
WASHER,27X42X2.3 92200 92200-0081 1
WASHER 92200A 92200-0281 1
WASHER,11X18X1 92200B 92200-0324 4
NUT,35MM 92210 92210-0095 1
NUT,35MM 92210A 92210-0096 1
NUT,POP,6MM,L=16.5 92210B 92210-0324 6
NUT,POP,6MM,L=15 92210C 92210-1397 9
