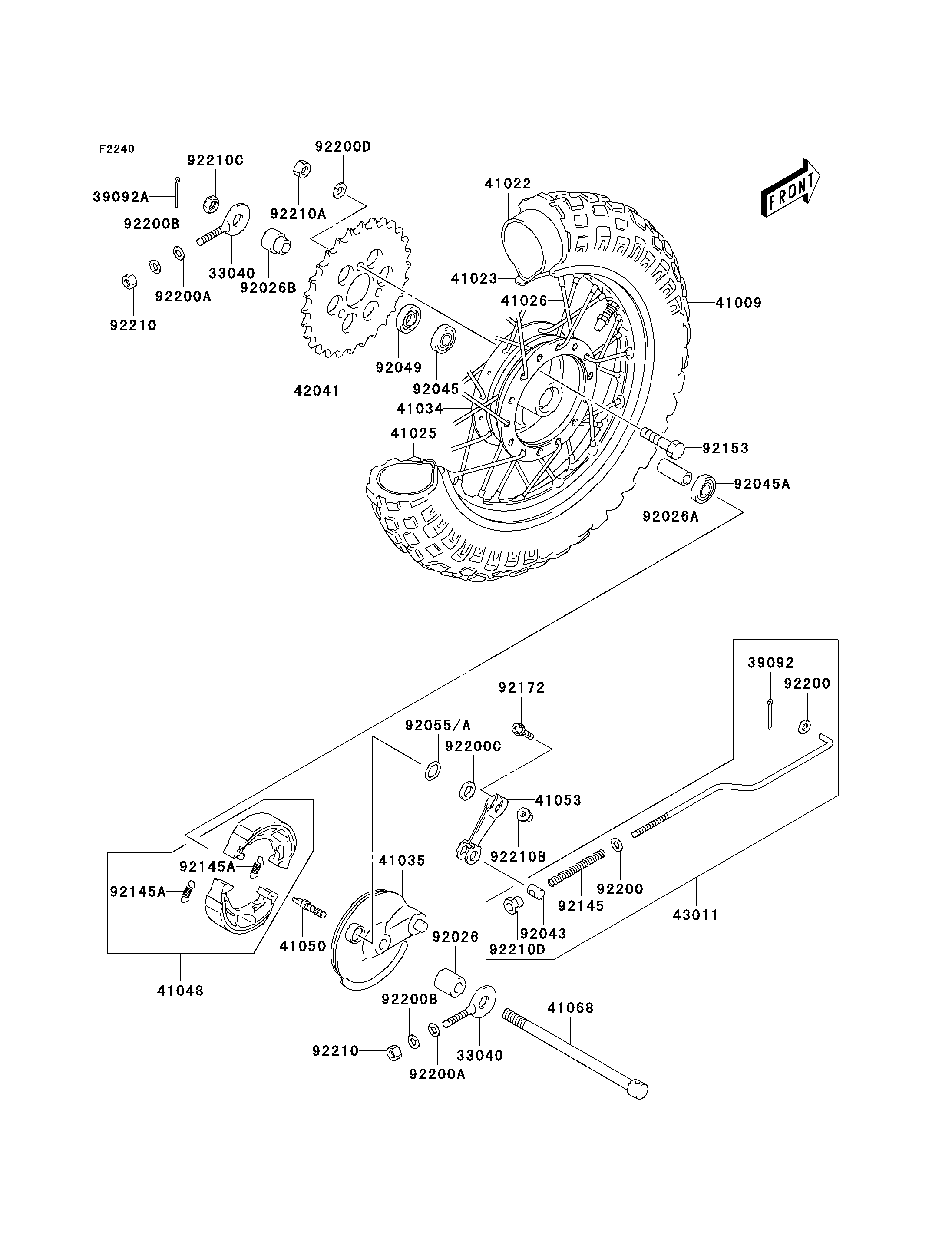

2005 KDX50 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
33040
33040
39092
39092A
41009
41022
41023
41025
41026
41034
41035
41048
41050
41053
41068
42041
43011
92026
92026A
92026B
92043
92045
92045A
92049
92055A
92145
92145A
92145A
92153
92172
92200
92200
92200A
92200A
92200B
92200B
92200C
92200D
92210
92210
92210A
92210B
92210C
92210D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ADJUSTER-CHAIN 33040 33040-S003 2
PIN-HAIR,FR FOOTREST COTTER 39092 39092-S004 1
PIN-HAIR,COTTER 39092A 39092-S005 1
TIRE,2.50-10 41009 41009-S014 1
TUBE-TIRE 41022 41022-S005 1
BAND-RIM 41023 41023-S005 1
RIM,1.40X10 41025 41025-S010 1
SPOKE-ASSY 41026 41026-S005 1
DRUM-ASSY,REAR WHEEL 41034 41034-S006 1
PANEL-ASSY-BRAKE 41035 41035-S005 1
SHOE-BRAKE 41048 41048-S008 1
CAM-BRAKE 41050 41050-S007 1
LEVER-BRAKE CAM 41053 41053-S010 1
AXLE 41068 41068-S010 1
SPROCKET-HUB,28T 42041 42041-S007 1
ROD-BRAKE 43011 43011-S003 1
SPACER 92026 92026-S111 1
SPACER,WHEEL HUB BEARING 92026A 92026-S117 1
SPACER 92026B 92026-S118 1
PIN 92043 92043-S006 1
BEARING-BALL,FRONT WHEEL HUB 92045 92045-S055 1
BEARING-BALL,FRONT WHEEL HUB 92045A 92045-S056 1
SEAL-OIL,WHEEL HUB 92049 92049-S055 1
RING-O 92055A 92055-S091 1
SPRING,REAR BRAKE ROD 92145 92145-S046 1
SPRING,BRAKE SHOE 92145A 92145-S122 2
BOLT,8X36 92153 92153-S311 3
SCREW,FRONT BRAKE 92172 92172-S192 1
WASHER 92200 92200-S002 2
WASHER 92200A 92200-S003 2
WASHER,CHAIN ADJUSTER LOCK 92200B 92200-S102 2
WASHER,10.5X18X1 92200C 92200-S177 1
WASHER 92200D 92200-S178 3
NUT 92210 92210-S001 2
NUT 92210A 92210-S051 3
NUT 92210B 92210-S067 1
NUT,FRONT AXLE 92210C 92210-S119 1
NUT 92210D 92210-S120 1
