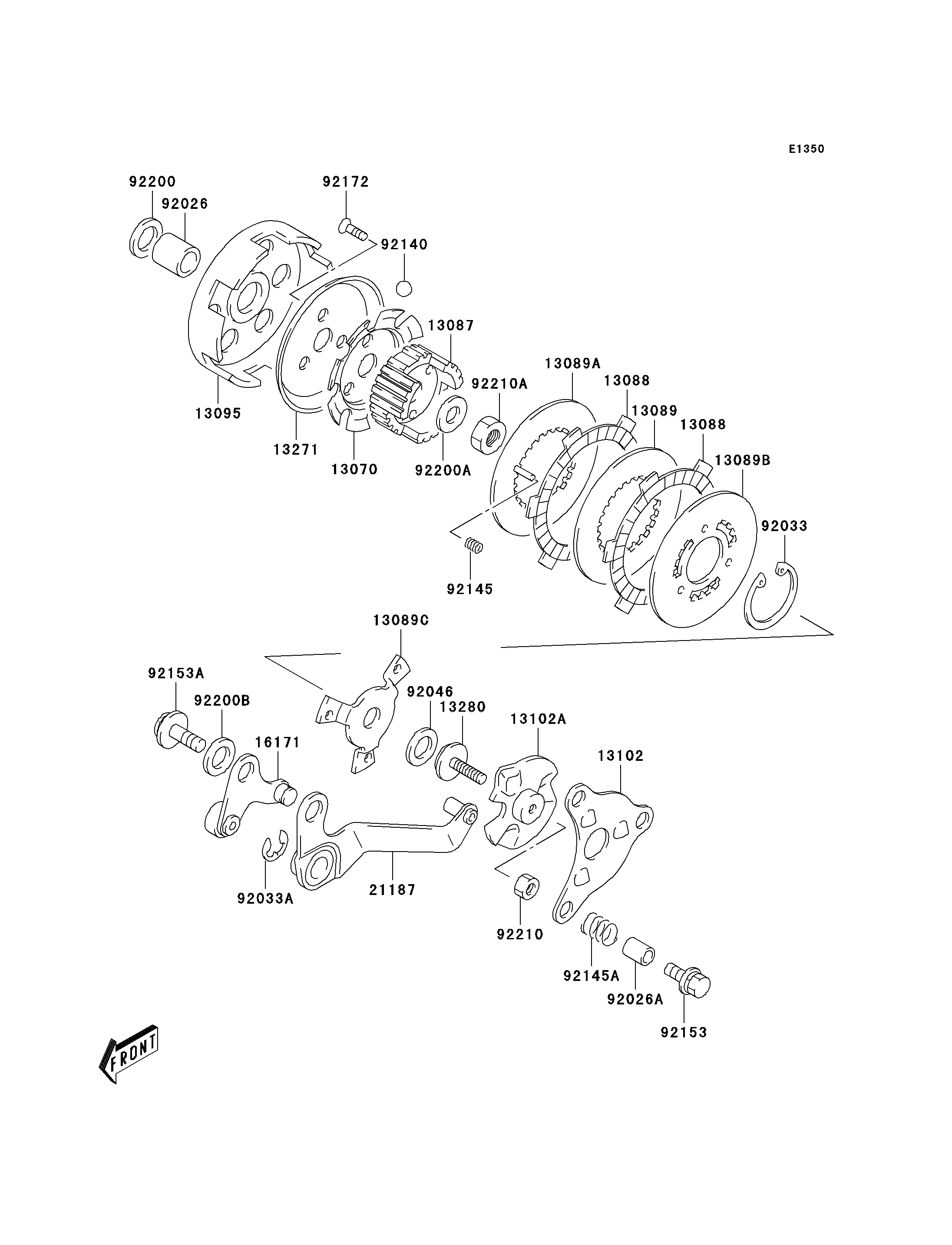

2006 KDX50 - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13070
13087
13088
13088
13089
13089A
13089B
13089C
13095
13102
13102A
13271
13280
16171
21187
92026
92026A
92033
92033A
92046
92140
92145
92145A
92153
92153A
92172
92200
92200A
92200B
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,CLUTCH BALL 13070 13070-S014 1
HUB-CLUTCH 13087 13087-S004 1
PLATE-FRICTION 13088 13088-S005 2
PLATE-CLUTCH 13089 13089-S004 1
PLATE-CLUTCH,CLUTCH INNER 13089A 13089-S005 1
PLATE-CLUTCH,OUTER 13089B 13089-S006 1
PLATE-CLUTCH,CLUTCH PRESSURE 13089C 13089-S007 1
HOUSING-COMP-CLUTCH 13095 13095-S007 1
RELEASE-COMP-CLUTCH 13102 13102-S004 1
RELEASE-COMP-CLUTCH 13102A 13102-S005 1
PLATE,CLUTCH BALL 13271 13271-S055 1
HOLDER,CLUTCH PUSH 13280 13280-S029 1
LINK,RELEASE ARM 16171 16171-S001 1
ARM-ASSY,CLUTCH RELEASE PLATE 21187 21187-S006 1
SPACER,DRIVEN GEAR 92026 92026-S056 1
SPACER,RELEASE PLATE SPRING 92026A 92026-S112 3
RING-SNAP,CLUTCH SLEEVE HUB 92033 92033-S043 1
RING-SNAP,RELEASE PLATE ARM 92033A 92033-S044 1
BEARING-NEEDLE 92046 92046-S022 1
BALL,OIL CHECK VALVE 92140 92140-S003 8
SPRING 92145 92145-S114 3
SPRING,CLUTCH RELEASE PLATE 92145A 92145-S115 3
BOLT 92153 92153-S013 3
BOLT,8X17 92153A 92153-S316 1
SCREW 92172 92172-S012 3
WASHER,DRIVEN GEAR 92200 92200-S085 1
WASHER,CLUTCH 92200A 92200-S087 1
WASHER,8X16X1.0 92200B 92200-S165 1
NUT 92210 92210-S001 1
NUT 92210A 92210-S116 1
