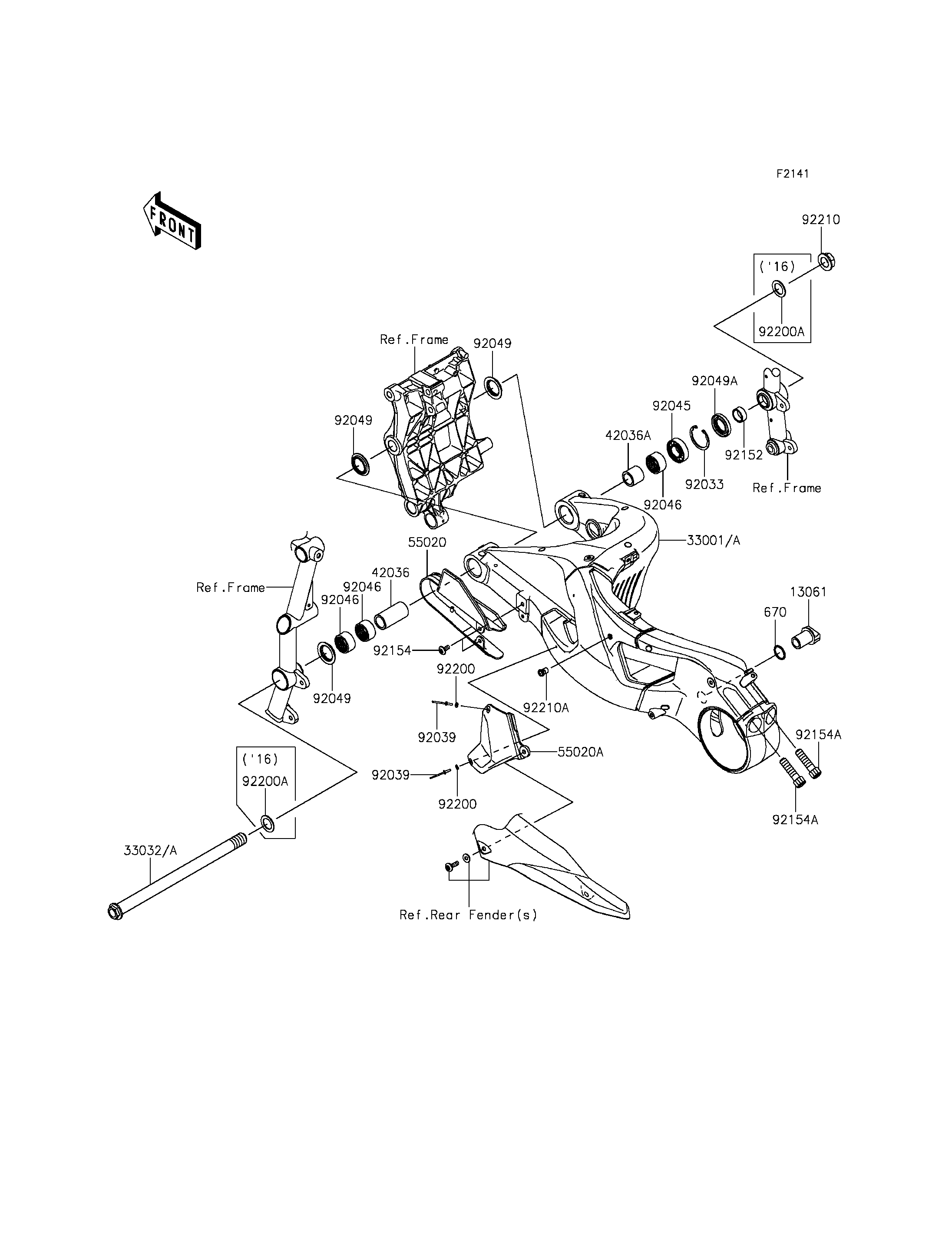

2016 NINJA H2™ - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
670
13061
33001A
33032A
42036
42036A
55020
55020A
92033
92039
92039
92045
92046
92046
92046
92049
92049
92049
92049A
92152
92154
92154A
92154A
92200
92200
92200A
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,22MM 670 670B2022 1
BOSS,CALIPER HOLDER 13061 13061-0744 1
ARM-COMP-SWING,M.F.S.BLACK 33001A 33001-0661-46R 1
SHAFT-SWING ARM,20X313 33032A 33032-0049 1
SLEEVE,20.1X28X56.5 42036 42036-0757 1
SLEEVE,20.1X28X25.7 42036A 42036-0762 1
GUARD,CHAIN SLIDER 55020 55020-1841 1
GUARD,SWING ARM,HEEL 55020A 55020-1853 1
RING-SNAP,42MM 92033 92033-1041 1
RIVET 92039 92039-1231 2
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 3
SEAL-OIL,28X34X5.7 92049 92049-1181 3
SEAL-OIL,MHSA25X42X6 92049A 92049-1314 1
COLLAR,20.2X25X10.5 92152 92152-1948 1
BOLT,SOCKET,6X14 92154 92154-1025 2
BOLT,SOCKET,12X45 92154A 92154-1552 2
WASHER,3.2X8X1 92200 92200-1677 2
WASHER,20.5X31X1.5 92200A 92200-1791 2
NUT,FLANGED,20MM 92210 92210-0320 1
NUT,POP,6MM,L=15 92210A 92210-1397 1
