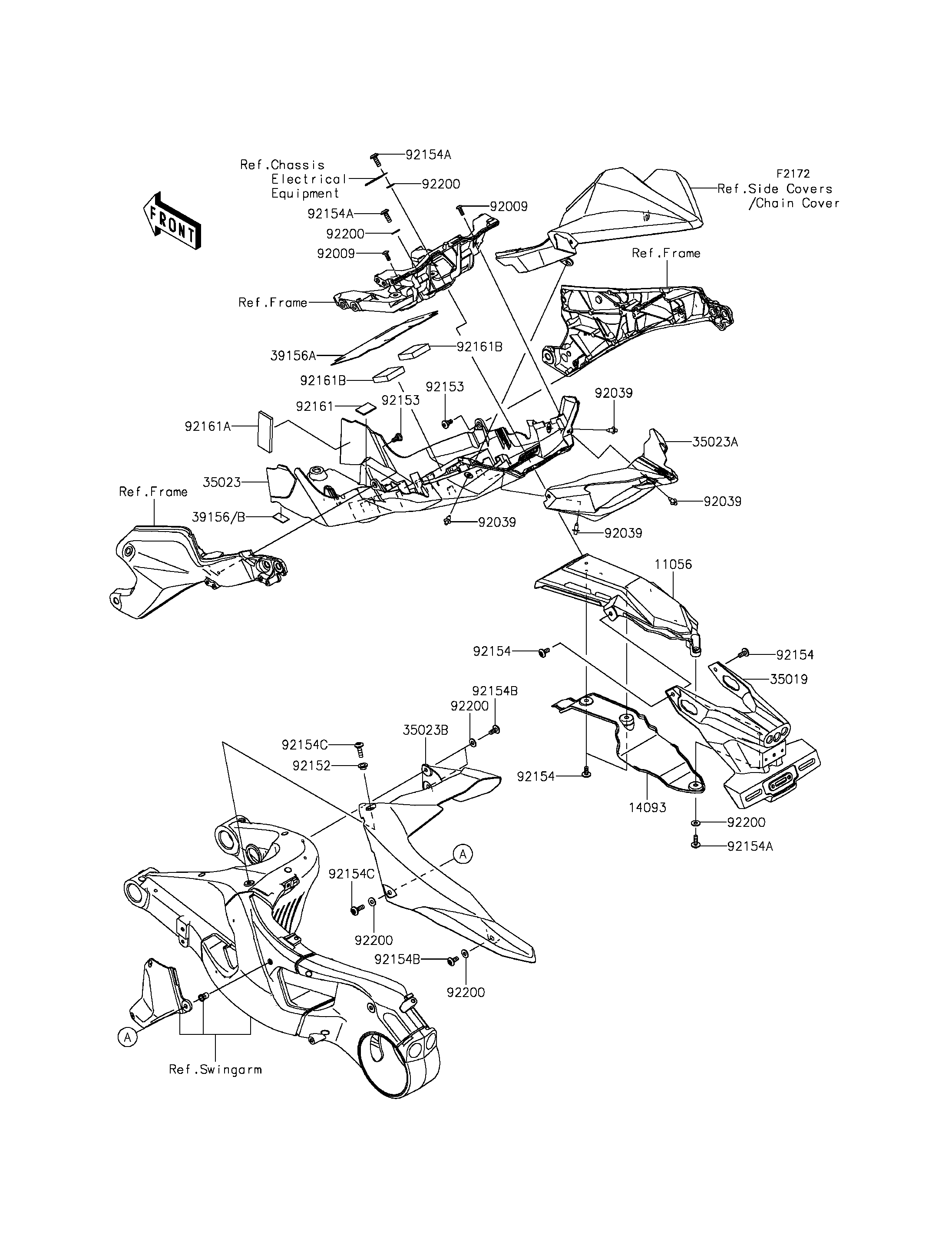

2016 NINJA H2™ - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
14093
35019
35023
35023A
35023B
39156A
39156B
92009
92009
92039
92039
92039
92039
92152
92153
92153
92154
92154
92154
92154A
92154A
92154A
92154B
92154B
92154C
92154C
92161
92161A
92161B
92161B
92200
92200
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FLAP STAY 11056 11056-4341 1
COVER,FLAP STAY BRKT. 14093 14093-0177 1
FLAP 35019 35019-0597 1
FENDER-REAR,FR 35023 35023-0397 1
FENDER-REAR,RR 35023A 35023-0398 1
FENDER-REAR 35023B 35023-0399 1
PAD,195X115X1 39156A 39156-1884 1
PAD,15X25X1 39156B 39156-2119 1
SCREW,TAPPING,5X14 92009 92009-1197 2
RIVET 92039 92039-0068 4
COLLAR,6.5X10X6.2 92152 92152-2152 1
BOLT,SOCKET,6MM 92153 92153-1956 2
BOLT,SOCKET,6X14 92154 92154-1025 4
BOLT,SOCKET,6X18 92154A 92154-1694 5
BOLT,SOCKET,6X14 92154B 92154-1807 3
BOLT,SOCKET,6X22 92154C 92154-1810 2
DAMPER,30X20X2 92161 92161-0833 1
DAMPER,30X70X5 92161A 92161-1127 1
DAMPER,40X40X10 92161B 92161-1603 2
WASHER,6.2X15X1.2 92200 92200-1762 9
