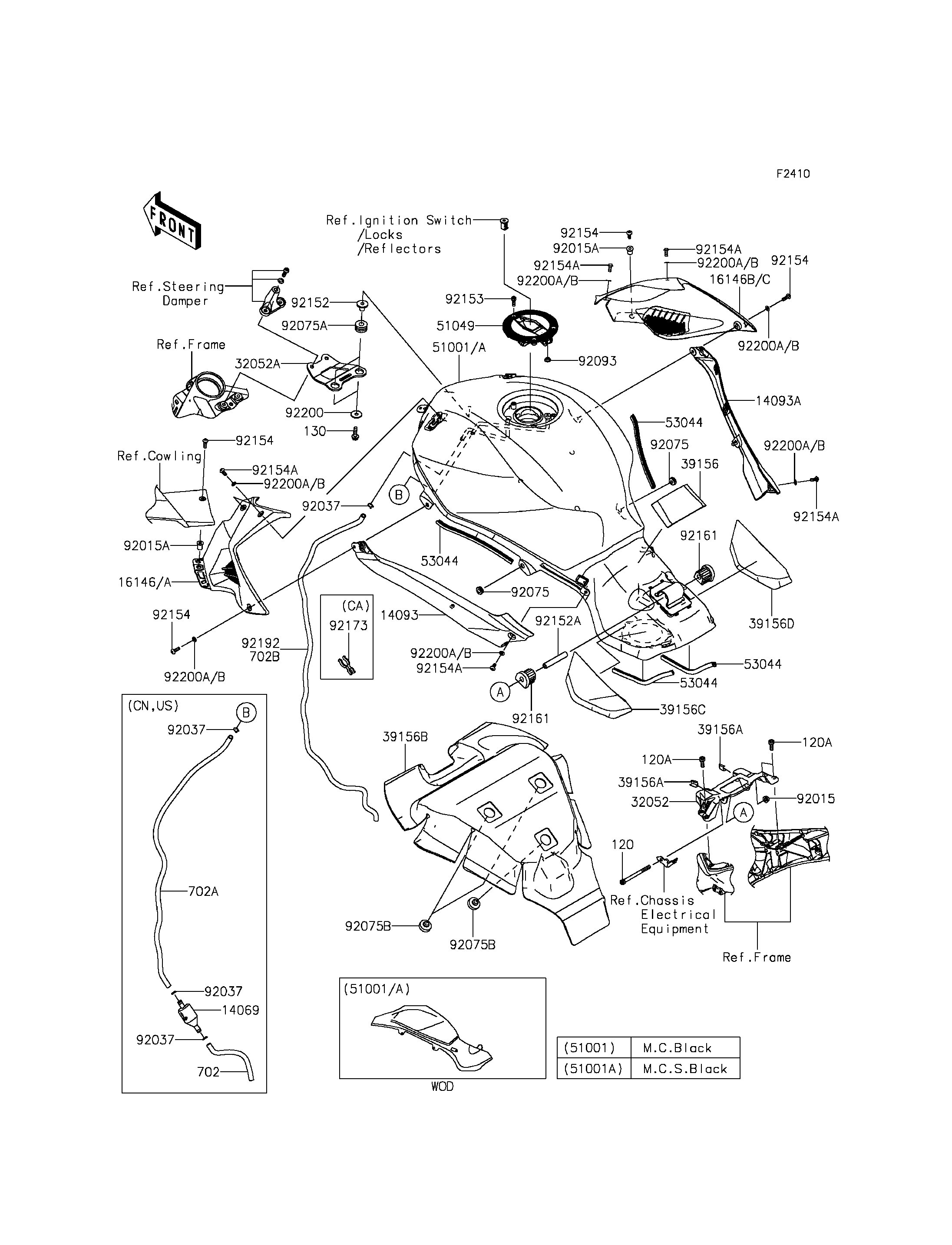

2016 NINJA H2™ - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14093
14093
14093A
14093A
16146A
16146A
16146C
16146C
32052
32052
32052A
32052A
39156
39156
39156A
39156A
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
51001A
51001A
51049
51049
53044
53044
53044
53044
53044
53044
53044
53044
92015
92015
92015A
92015A
92015A
92015A
92075
92075
92075
92075
92075A
92075A
92075B
92075B
92075B
92075B
92093
92093
92152
92152
92152A
92152A
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92161
92161
92161
92161
92192
92192
92200
92200
120
120
120A
120A
120A
120A
130
130
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,KNEE GRIP,LH 14093 14093-0180 1
COVER,KNEE GRIP,RH 14093A 14093-0181 1
COVER-ASSY,TANK,LH,M.C.S.BLACK 16146A 16146-0780-53X 1
COVER-ASSY,TANK,RH,M.C.S.BLACK 16146C 16146-0781-53X 1
BRACKET-TANK,RR 32052 32052-0763 1
BRACKET-TANK,FR 32052A 32052-0764 1
PAD,RR FRM 39156 39156-1778 1
PAD,15X20X0.2 39156A 39156-1784 2
PAD,FUEL TANK 39156B 39156-1848 1
PAD,FUEL TANK,LH 39156C 39156-1942 1
PAD,FUEL TANK,RH 39156D 39156-1943 1
TANK-COMP-FUEL,M.C.S.BLACK 51001A 51001-0820-53X 1
CAP-TANK 51049 51049-0721 1
TRIM,FUEL TANK 53044 53044-0582 4
NUT,FLANGED,6MM 92015 92015-1367 1
NUT,WELL,5MM 92015A 92015-1757 2
DAMPER,6X16X7 92075 92075-1011 2
DAMPER,10X24X12 92075A 92075-1690 2
DAMPER,9X24X14 92075B 92075-281 3
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.3X10X14.5 92152 92152-0091 2
COLLAR,6X10X60.2 92152A 92152-1964 1
BOLT,SOCKET,5X16 92153 92153-1616 3
BOLT,SOCKET,5X16 92154 92154-1560 4
BOLT,SOCKET,5X12 92154A 92154-1561 6
DAMPER,FUEL TANK 92161 92161-1737 2
TUBE,DRAIN,6X9X808 92192 92192-1669 1
WASHER,6.5X22X1.6 92200 92200-1087 2
BOLT-SOCKET,6X75 120 120CA0675 1
BOLT-SOCKET,6X16 120A 120CB0616 4
BOLT-FLANGED,6X22 130 130CA0622 2
WASHER,5.2X10X1.0 92200B 92200-1820 8
BREATHER,TANK 14069 14069-0008 1 CN
CLAMP,TUBE 92037 92037-010 1 CA
CLAMP,TUBE 92037 92037-010 4 CN
CLAMP,DRAIN TUBE 92173 92173-1391 1 CA
TUBE-RUBBER,6X9X140 702 702A06140 1 CN
TUBE-RUBBER,6X9X630 702A 702A06630 1 CN
