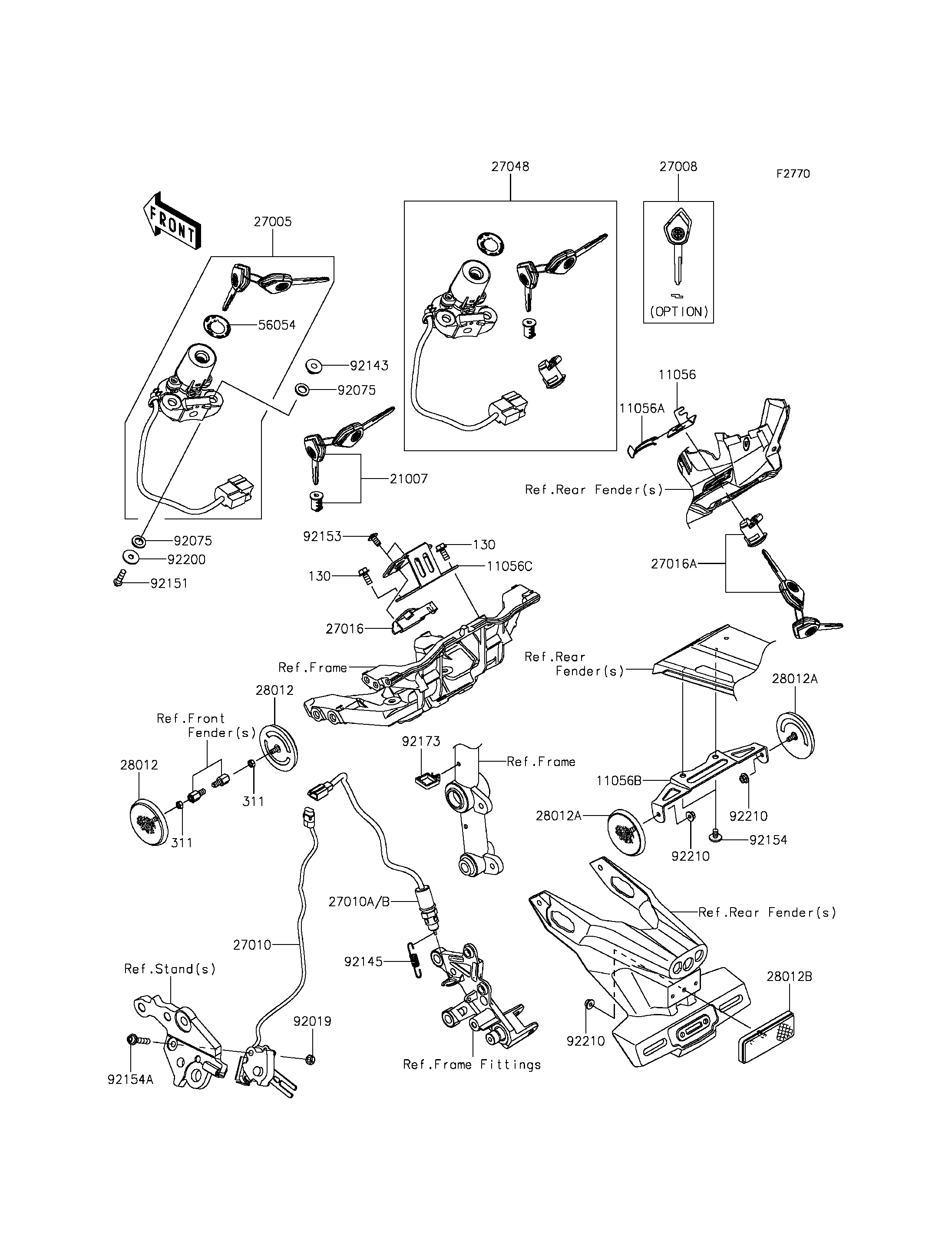

2016 NINJA H2™ - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
130
130
311
311
11056
11056A
11056B
11056C
21007
27005
27008
27010
27010A
27016
27016A
27048
28012
28012
28012A
28012A
28012B
56054
92019
92075
92075
92143
92145
92151
92153
92154
92154A
92173
92200
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130CB0614 2
NUT-HEX,5MM 311 311AB0500 2
BRACKET 11056 11056-0237 1
BRACKET,CLASP 11056A 11056-0238 1
BRACKET,REFLECTOR 11056B 11056-4496 1
BRACKET,SEAT LOCK 11056C 11056-7045 1
ROTOR,LOCK,TANK CAP 21007 21007-5079 1
SWITCH-ASSY-IGNITION 27005 27005-0603 1
KEY-LOCK,BLANK 27008 27008-0590 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0825 1
SWITCH,STOP 27010A 27010-0836 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5389 1
SWITCH-ASSY 27048 27048-5056 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
MARK,IGNITION 56054 56054-1596 1
NUT,LOCK,6MM 92019 92019-008 1
DAMPER 92075 92075-1564 4
COLLAR,L=9.6 92143 92143-1016 2
SPRING,REAR BRAKE 92145 92145-0946 1
BOLT,TORX,6X22 92151 92151-1946 2
BOLT,SOCKET,6X12 92153 92153-1617 2
BOLT,SOCKET,6X10 92154 92154-1693 2
BOLT,SOCKET,6X30 92154A 92154-1736 1
CLAMP 92173 92173-1513 1
WASHER,6X20X1.6 92200 92200-0212 2
NUT,FLANGED,5MM 92210 92210-0007 3
