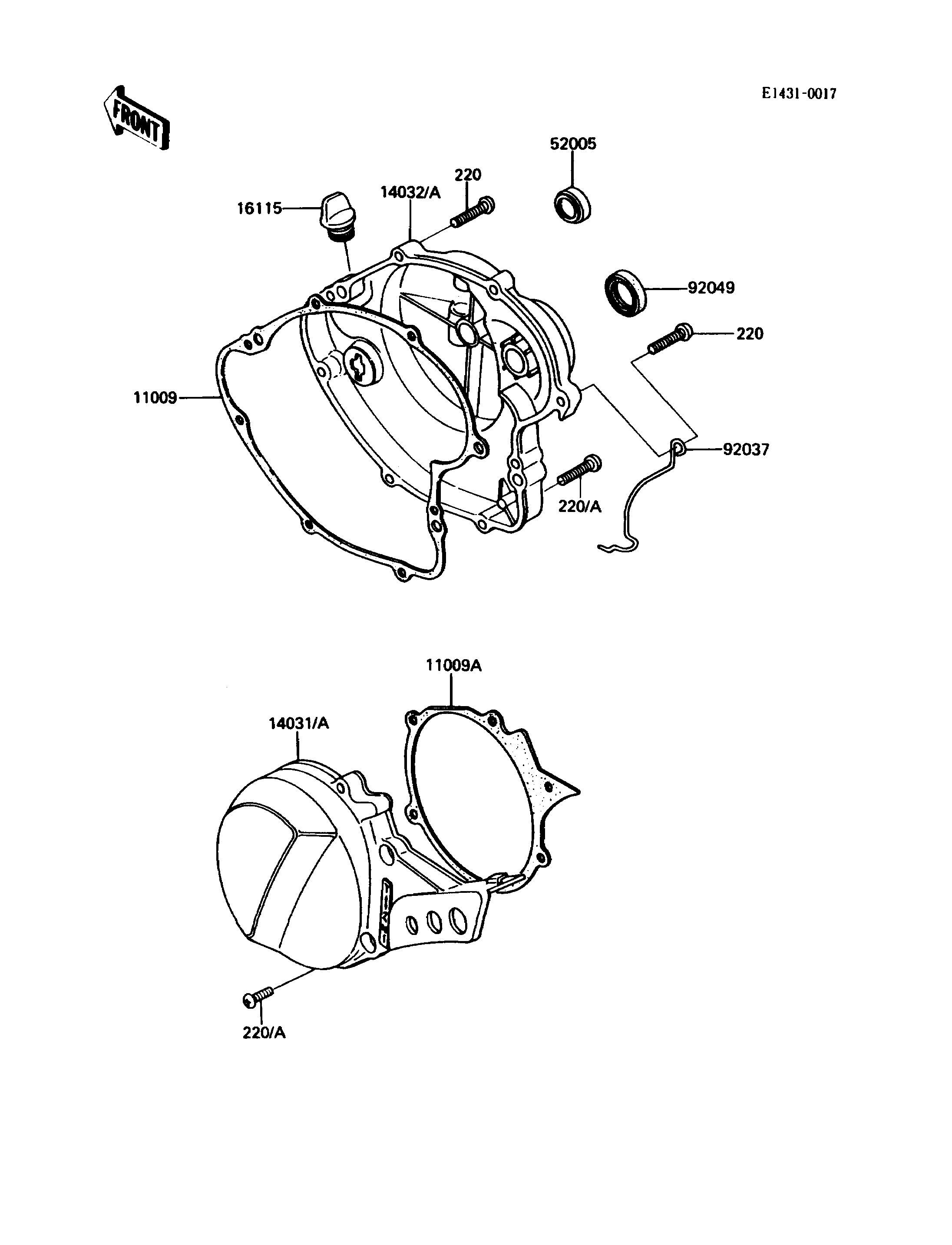

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH COVER 11009 11009-1202 1
GASKET,GENERATOR COVER 11009A 11009-1536 1
COVER-GENERATOR 14031A 14031-1215 1
COVER-CLUTCH 14032A 14032-1247 1
CAP-OIL FILLER 16115 16115-018 1
GAUGE,OIL LEVEL 52005 52005-1055 1
CLAMP,TUBE 92037 92037-1236 1
SEAL-OIL,SB16244 92049 92049-002 1
SCREW-PAN-CROS,6X25 220 220B0625 14
