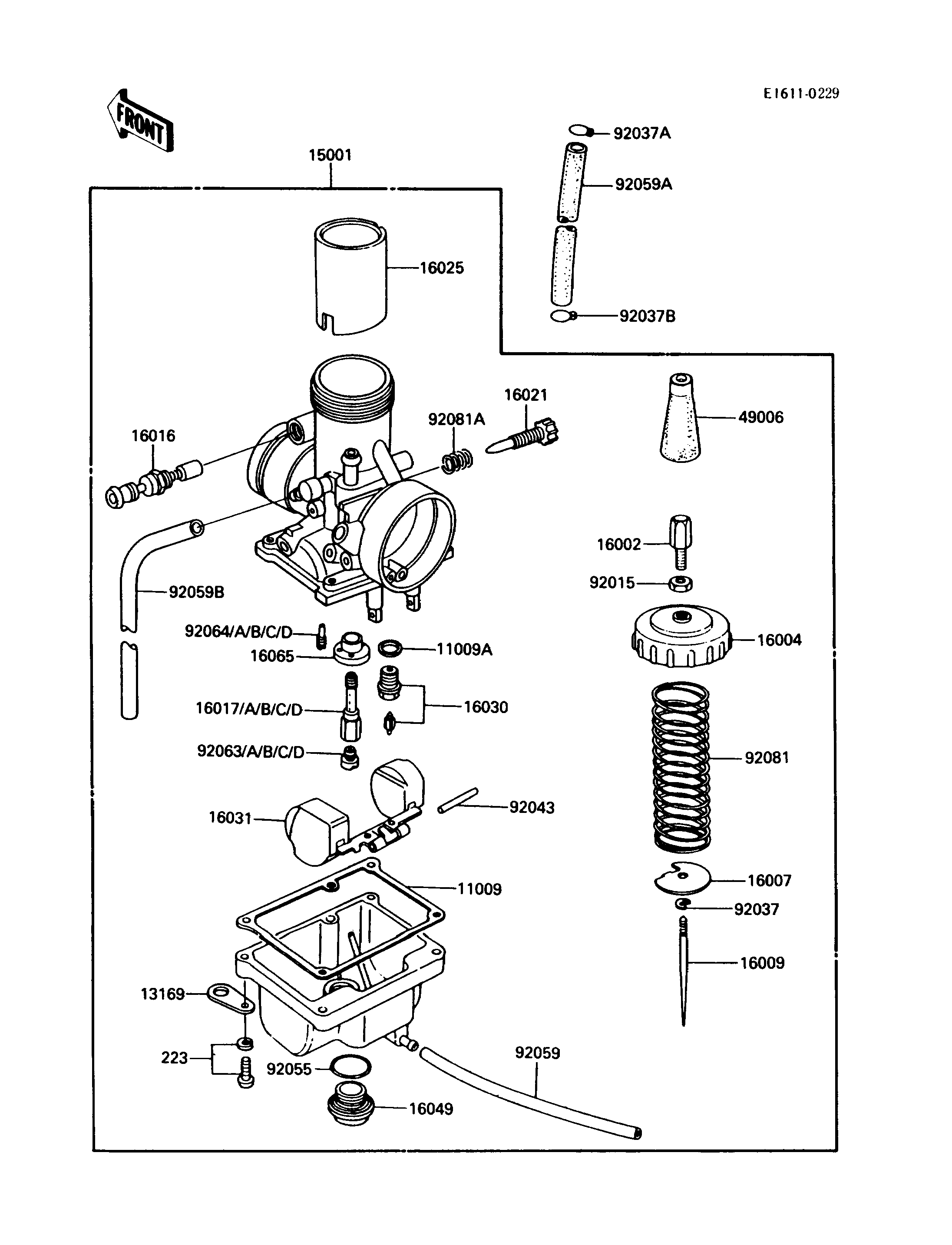

1985 KDX80 - Carburetor(KDX80-C1/C2/C3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1147 1
GASKET,FLOAT VALVE SEAT 11009A 16029-004 1
PLATE,TUBE CLAMP 13169 13169-1226 1
CARBURETOR 15001 16001-1926 1
ADJUSTER-CABLE 16002 16002-017 1
CAP-CHAMBER 16004 16004-025 1
SEAT-SPRING,THROTTLE VALVE 16007 16007-023 1
NEEDLE-JET,5I14 16009 16009-1220 1
PLUNGER,STARTER 16016 16016-1052 1
JET-NEEDLE,O-6 16017 16017-1228 1
JET-NEEDLE,P-0 16017A 16017-1229 1 (OPTION)
JET-NEEDLE,O-8 16017B 16017-1230 1 (OPTION)
JET-NEEDLE,O-4 16017C 16017-1231 1 (OPTION)
JET-NEEDLE,O-2 16017D 16017-1232 1 (OPTION)
SCREW-THROTTLE STOP 16021 16021-1104 1
VALVE-THROTTLE,CA2.0 16025 16025-1107 1
VALVE-FLOAT,#2.6 16030 16030-1004 1
FLOAT 16031 16031-1005 1
COVER-MAIN JET 16049 16049-1001 1
HOLDER,JET NEEDLE 16065 16065-1020 1
BOOT,CABLE ADJUSTER 49006 16036-007 1
NUT,ADJUST LOCK 92015 16003-006 1
CLAMP,E-TYPE 92037 16008-010 1
CLAMP,TUBE 92037A 92037-147 1
CLAMP 92037B 92037-1712 1
PIN,FLOAT 92043 16032-003 1
RING-O,MAIN JET COVER 92055 92055-1061 1
TUBE,3X5X300 92059 92059-1018 1
TUBE,5.3X10.5X150 92059A 92059-1129 1
TUBE,3X5X320 92059B 92059-1430 1
JET-MAIN,#190 92063 92063-021 1 (OPTION)
JET-MAIN,#200 92063A 92063-022 1 (OPTION)
JET-MAIN,#210 92063B 92063-023 1
JET-MAIN,#220 92063C 92063-024 1 (OPTION)
JET-MAIN,#230 92063D 92063-025 1 (OPTION)
JET-PILOT,#35 92064 92064-1023 1
JET-PILOT,#30 92064A 92064-1030 1 (OPTION)
JET-PILOT,#25 92064B 92064-1038 1 (OPTION)
JET-PILOT,#45 92064C 92064-1060 1 (OPTION)
JET-PILOT,#40 92064D 92064-1104 1 (OPTION)
SPRING,THROTTLE VALVE 92081 16006-023 1
SPRING,THROTTLE STOP SCREW 92081A 16022-005 1
SCREW-PAN-WS-CROS 223 223B0416 4
