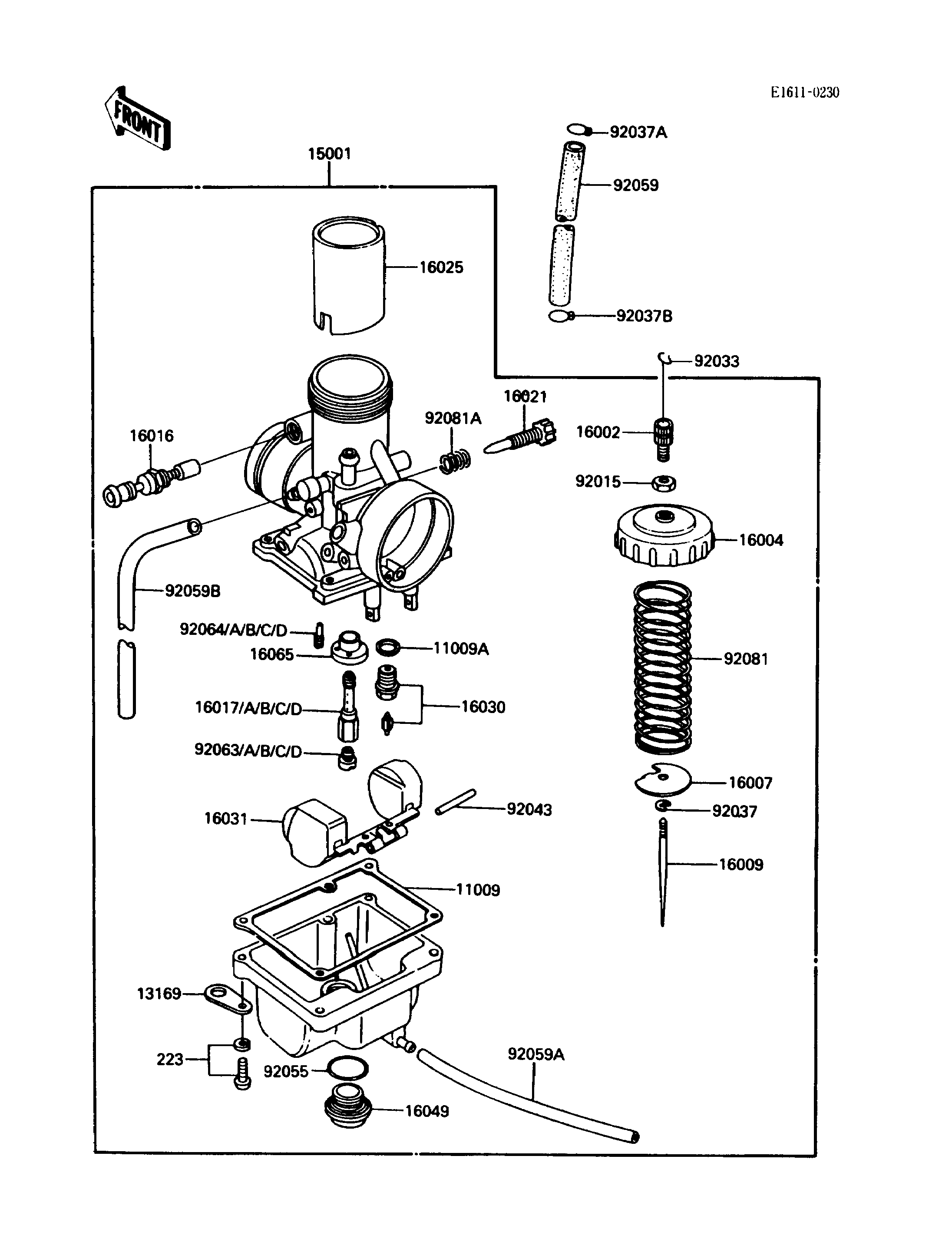

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FLOAT CHAMBER | 11009 | 11009-1147 | 1 | ||
GASKET,FLOAT VALVE SEAT | 11009A | 16029-004 | 1 | ||
PLATE,TUBE CLAMP | 13169 | 13169-1226 | 1 | ||
CARBURETOR-ASSY | 15001 | 15001-1328 | 1 | ||
ADJUSTER-CABLE | 16002 | 16002-011 | 1 | ||
CAP-CHAMBER | 16004 | 16004-025 | 1 | ||
SEAT-SPRING,THROTTLE VALVE | 16007 | 16007-023 | 1 | ||
NEEDLE-JET,5I14 | 16009 | 16009-1220 | 1 | ||
PLUNGER,STARTER | 16016 | 16016-1052 | 1 | ||
JET-NEEDLE,O-6 | 16017 | 16017-1228 | 1 | ||
JET-NEEDLE,P-0 | 16017A | 16017-1229 | 1 | (OPTION) | |
JET-NEEDLE,O-8 | 16017B | 16017-1230 | 1 | (OPTION) | |
JET-NEEDLE,O-4 | 16017C | 16017-1231 | 1 | (OPTION) | |
JET-NEEDLE,O-2 | 16017D | 16017-1232 | 1 | (OPTION) | |
SCREW-THROTTLE STOP | 16021 | 16021-1104 | 1 | ||
VALVE-THROTTLE,CA2.0 | 16025 | 16025-1107 | 1 | ||
VALVE-FLOAT,#2.6 | 16030 | 16030-1004 | 1 | ||
FLOAT | 16031 | 16031-1005 | 1 | ||
COVER-MAIN JET | 16049 | 16049-1001 | 1 | ||
HOLDER,JET NEEDLE | 16065 | 16065-1020 | 1 | ||
NUT,ADJUST LOCK | 92015 | 16003-006 | 1 | ||
RING-SNAP | 92033 | 92036-018 | 1 | ||
CLAMP,E-TYPE | 92037 | 16008-010 | 1 | ||
CLAMP,TUBE | 92037A | 92037-147 | 1 | ||
CLAMP | 92037B | 92037-1712 | 1 | ||
PIN,FLOAT | 92043 | 16032-003 | 1 | ||
RING-O,MAIN JET COVER | 92055 | 92055-1061 | 1 | ||
TUBE,5.3X10.5X150 | 92059 | 92059-1129 | 1 | ||
TUBE,3X5X220,OVERFLOW | 92059A | 92059-1243 | 1 | ||
TUBE,3X5X320 | 92059B | 92059-1430 | 1 | ||
JET-MAIN,#170 | 92063 | 92063-019 | 1 | (OPTION) | |
JET-MAIN,#180 | 92063A | 92063-020 | 1 | (OPTION) | |
JET-MAIN,#190 | 92063B | 92063-021 | 1 | ||
JET-MAIN,#200 | 92063C | 92063-022 | 1 | (OPTION) | |
JET-MAIN,#210 | 92063D | 92063-023 | 1 | (OPTION) | |
JET-PILOT,#35 | 92064 | 92064-1023 | 1 | (OPTION) | |
JET-PILOT,#30 | 92064A | 92064-1030 | 1 | ||
JET-PILOT,#25 | 92064B | 92064-1038 | 1 | (OPTION) | |
JET-PILOT,#40 | 92064C | 92064-1104 | 1 | (OPTION) | |
JET-PILOT,#20 | 92064D | 92064-1110 | 1 | (OPTION) | |
SPRING,THROTTLE VALVE | 92081 | 16006-023 | 1 | ||
SPRING,THROTTLE STOP SCREW | 92081A | 16022-005 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223B0416 | 4 |
