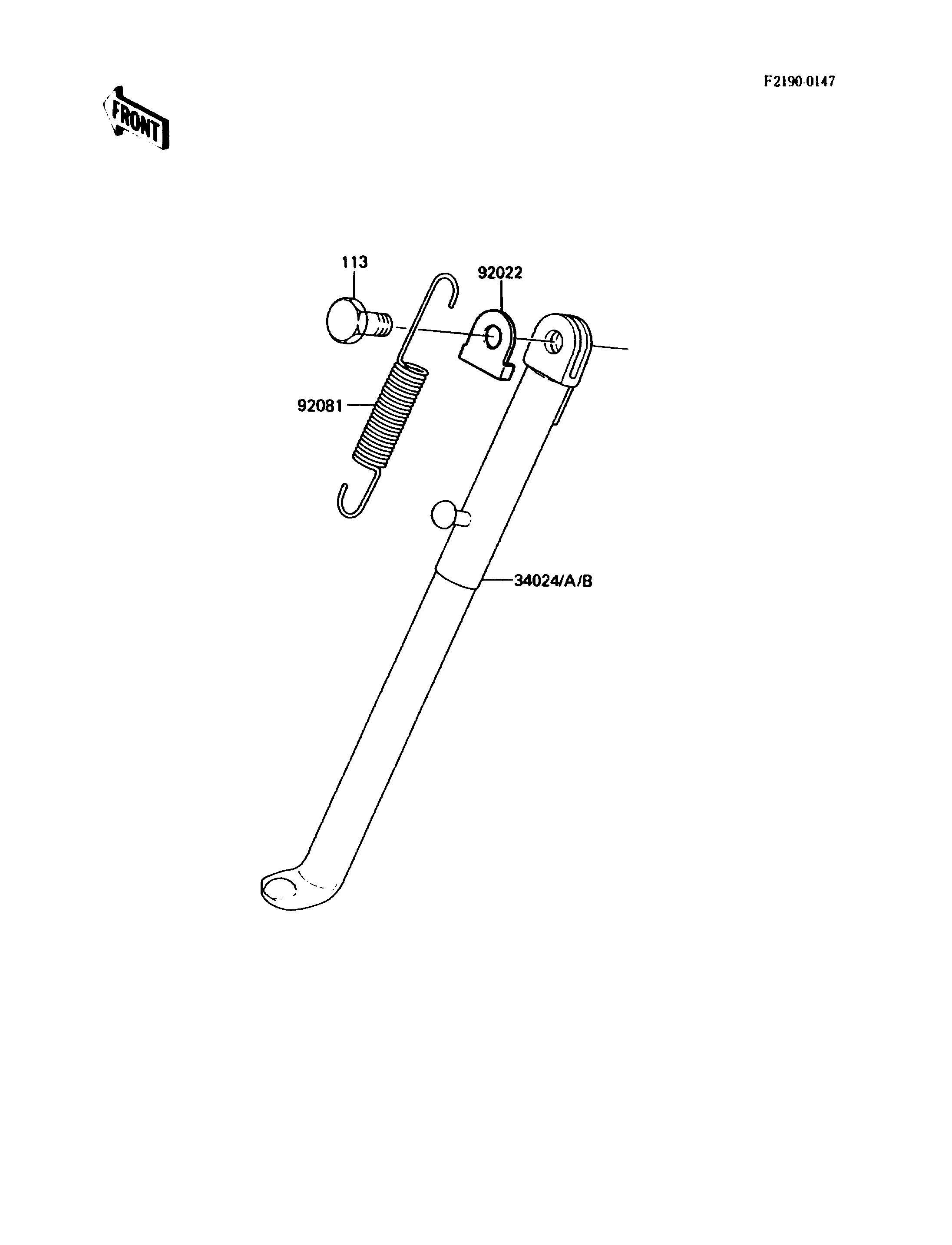

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-SIDE 34024B 34024-1235 1
WASHER,LOCK 92022 92022-1473 1
SPRING,STAND 92081 34025-005 1
BOLT-SMALL-FINE,10X18 113 113G1018 1
