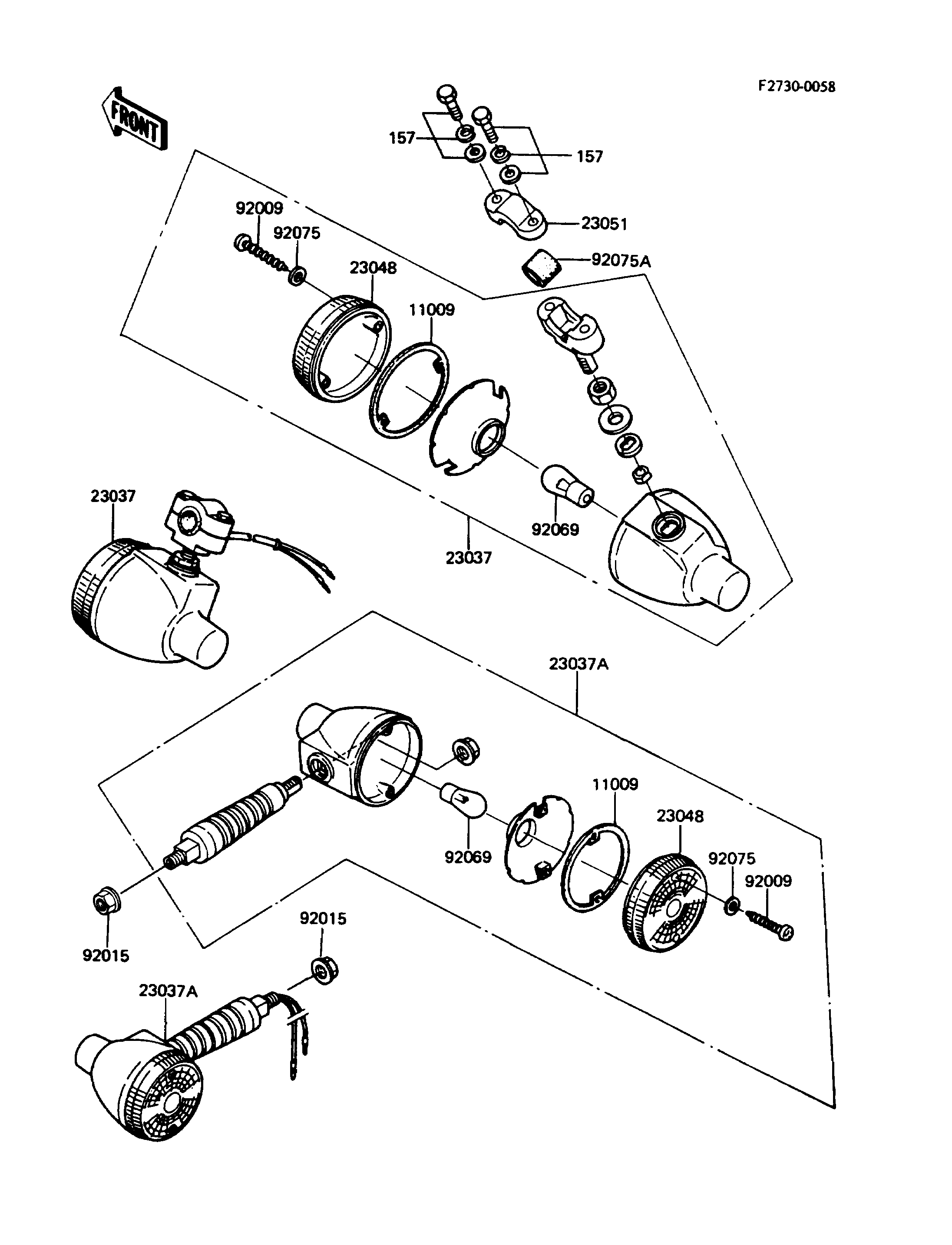

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TURN SIGNAL LAMP LENS 11009 11009-1128 4
LAMP-ASSY-SIGNAL,FR 23037 23037-1039 2
LAMP-ASSY-SIGNAL,RR 23037A 23037-1087 2
LENS-SIGNAL LAMP 23048 23048-1076 4
BRACKET-SIGNAL LAMP 23051 23051-1018 2
SCREW,TAPPING,4X30 92009 92009-1056 8
NUT,FLANGED,10MM 92015 92015-1428 2
BULB,6V 21CP 92069 92069-056 4
WASHER,PLAIN,4MM 92075 23058-002 8
DAMPER 92075A 23066-003 2
BOLT-WSP 157 157B0530 4
