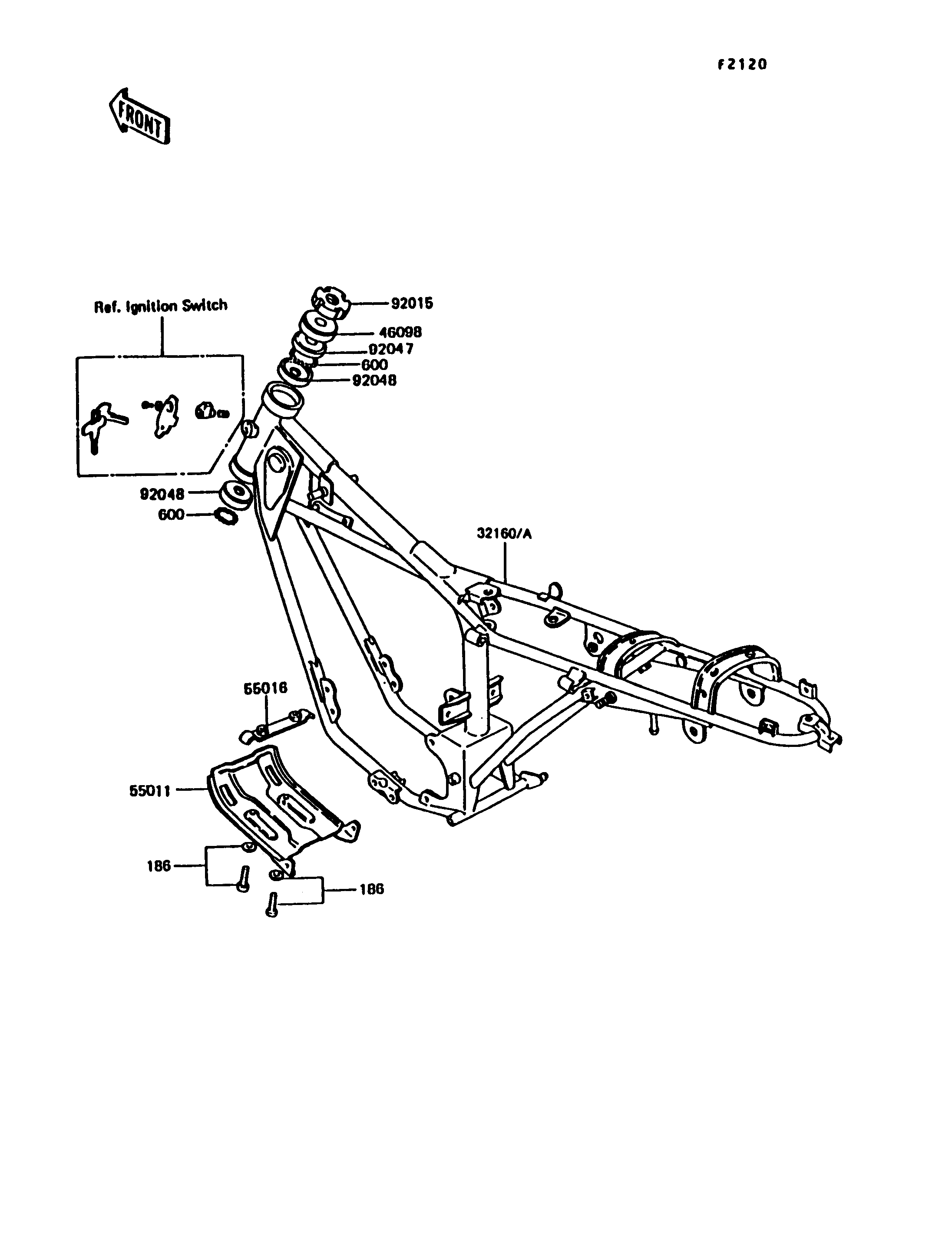

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WP 186 186B0614 2
BALL-STEEL,3/16" 600 600A0600 46
FRAME-COMP 32160A 32160-1430 1
CAP,STEERING STEM 46098 46098-004 1
GUARD,ENGINE 55011 55011-018 1
BRACKET,ENGINE GUARD 55016 55016-007 1
NUT,STEERING STEM LOCK,25MM 92015 92015-1382 1
RACE,UPPER BEARING 92047 92047-005 1
RACE,BEARING 92048 92048-004 2
