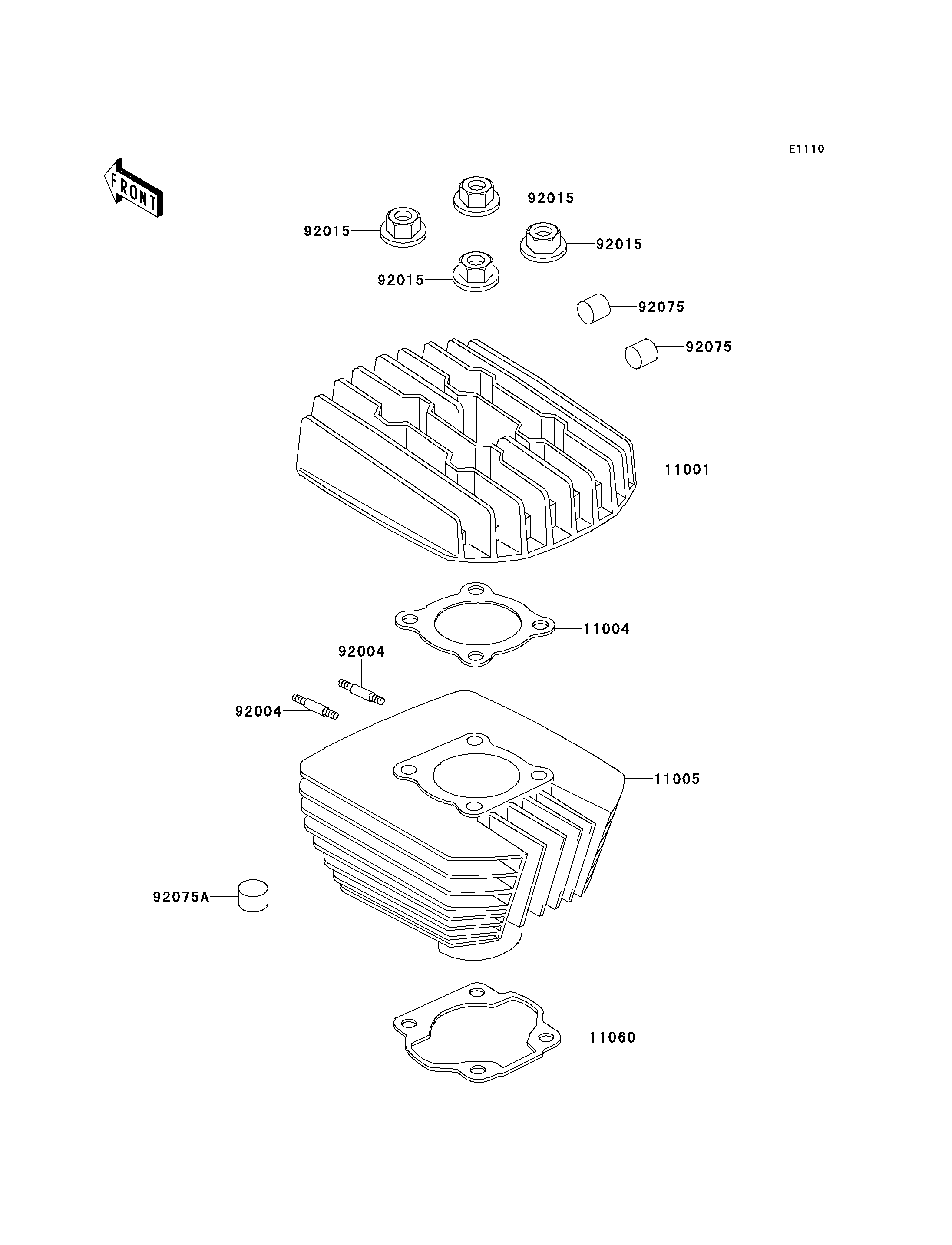

11001
11004
11005
11060
92004
92004
92015
92015
92015
92015
92075
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-1018 1
GASKET-HEAD,CYLINDER 11004 11004-033 1
CYLINDER-ENGINE,ELECTRO-FUSE 11005 11005-1006 1
GASKET,CYLINDER BASE 11060 11060-1200 1
STUD,6X22.5 92004 92004-1119 2
NUT,FLANGED,8MM 92015 92015-1022 4
DAMPER,13X13.8 92075 92075-075 6
DAMPER,CYLINDER HEAD/CYLINDER 92075A 92075-109 8
