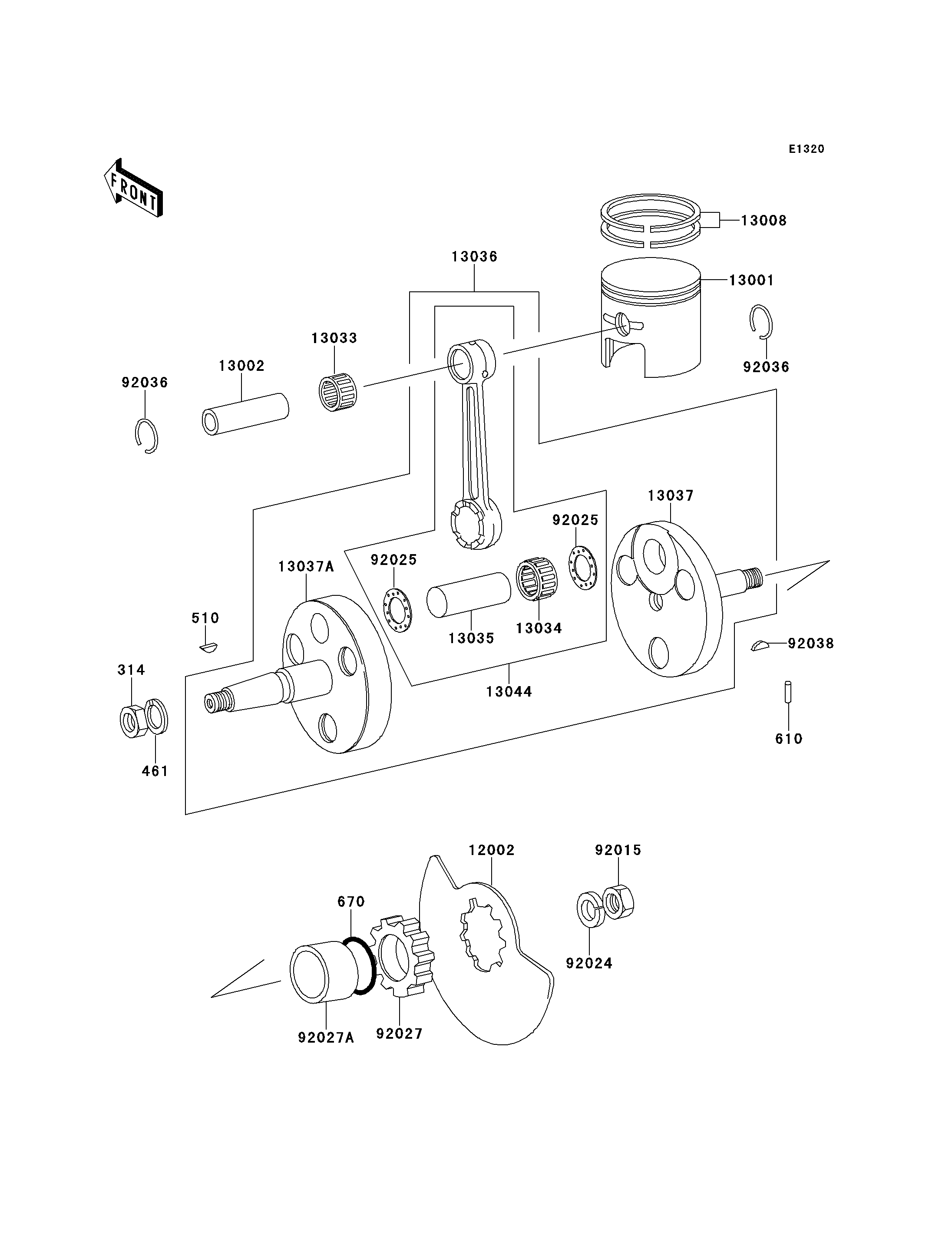

1997 KE100 - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
314
461
510
610
670
12002
13001
13002
13008
13033
13034
13035
13036
13037
13037A
13044
92015
92024
92025
92025
92027
92027A
92036
92036
92038
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-FINE,10MM 314 314B1000 1
WASHER-SPRING,10MM 461 461E1000 1
KEY-WOODRUFF 510 510A3200 1
ROLLER,4X10 610 610A0410 1
O RING,16MM 670 670B2016 1
VALVE-ROTARY 12002 12002-030 1
PISTON-ENGINE,STD 13001 13001-1457 1
PIN-PISTON 13002 13002-003 1
RING-SET-PISTON,STD 13008 13008-5009 1
BEARING-NEEDLE,KTV141817 13033 13033-030 1
BEARING-NEEDLE,KT192814 13034 13034-034 1
PIN-CRANK 13035 13035-025 1
CRANKSHAFT-COMP 13036 13036-043 1
CRANKSHAFT,RH 13037 13037-1135 1
CRANKSHAFT,LH 13037A 13037-1136 1
SET-CONNECTING ROD 13044 13044-5015 1
NUT,12MM 92015 92015-006 1
WASHER,CLAW,12.5X25X0.8 92024 92024-003 1
SHIM,T=1.0 92025 92025-047 2
COLLAR,ROTARY VALVE 92027 92027-1245 1
COLLAR,20X25X9.5 92027A 92027-285 1
RING-SNAP,PISTON PIN 92036 92036-003 2
KEY,WOODRUFF 92038 92038-003 1
