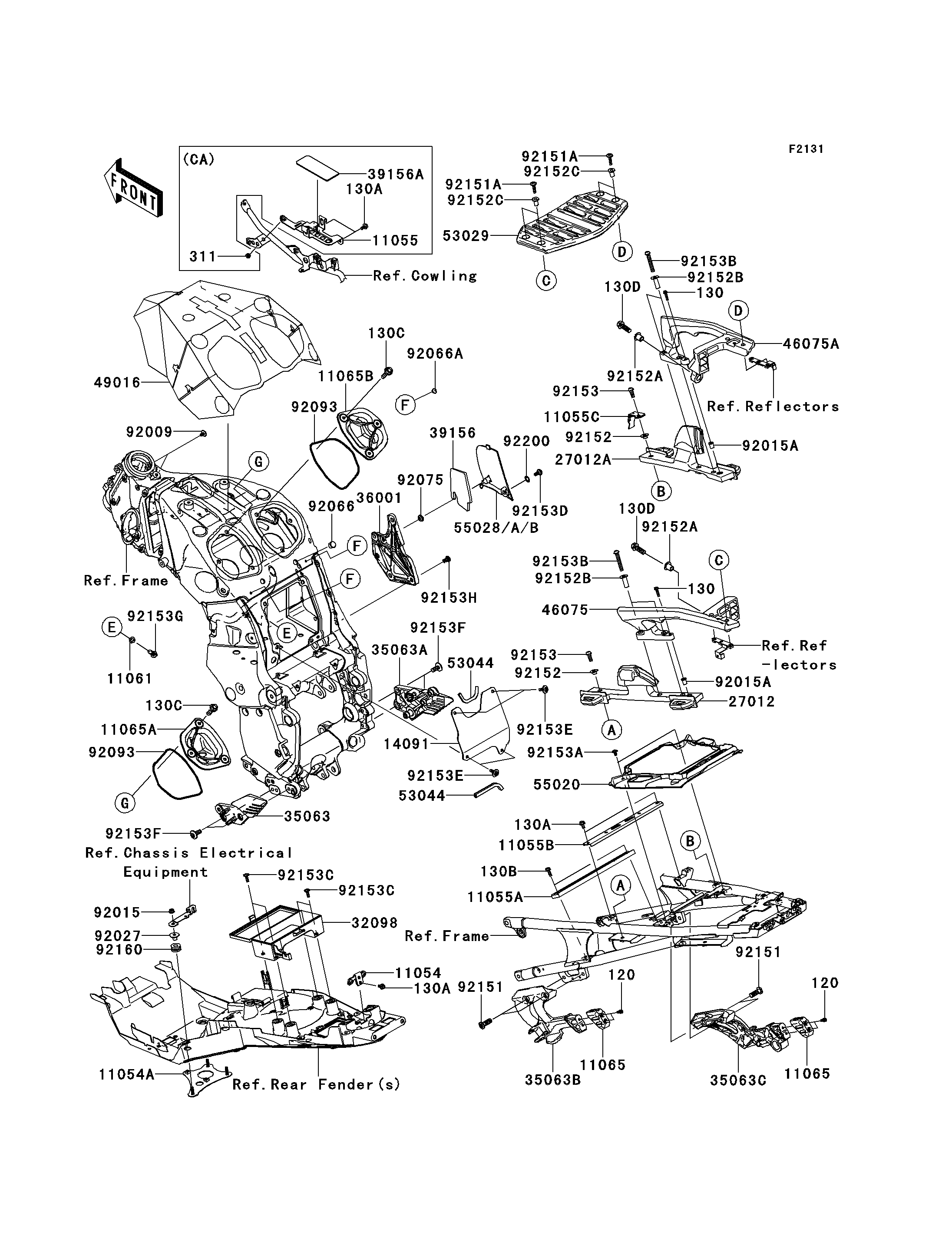

2008 Concours™ 14 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054A
11054A
11055A
11055A
11055B
11055B
11055C
11055C
11061
11061
11065
11065
11065
11065
11065A
11065A
11065B
11065B
14091
14091
27012
27012
27012A
27012A
32098
32098
35063
35063
35063A
35063A
35063B
35063B
35063C
35063C
36001
36001
39156
39156
46075
46075
46075A
46075A
49016
49016
53029
53029
53044
53044
53044
53044
55020
55020
55028A
55028A
92009
92009
92015
92015
92015A
92015A
92015A
92015A
92027
92027
92066
92066
92066A
92066A
92075
92075
120
120
120
120
130
130
130
130
130B
130B
130C
130C
130C
130C
130D
130D
130D
130D
92093
92093
92093
92093
92151
92151
92151
92151
92151A
92151A
92151A
92151A
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152B
92152B
92152B
92152B
92152C
92152C
92152C
92152C
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92153C
92153C
92153C
92153C
92153D
92153D
92153E
92153E
92153E
92153E
92153F
92153F
92153F
92153F
92153G
92153G
92153H
92153H
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,DOWN SENSOR 11054 11054-1194 1
BRACKET,REGULATOR 11054A 11054-1197 1
BRACKET,RR FENDER,CROS 11055A 11055-0129 1
BRACKET,REAR FRAME,CLOS 11055B 11055-0186 1
BRACKET,SIGNAL LAMP RELAY 11055C 11055-0307 1
GASKET 11061 11061-0107 1
CAP 11065 11065-0166 2
CAP,AIR CLEANER,LH 11065A 11065-0222 1
CAP,AIR CLEANER,RH 11065B 11065-0223 1
COVER,BATTERY BACK 14091 14091-0871 1
HOOK,LH 27012 27012-0123 1
HOOK,RH 27012A 27012-0124 1
CASE-TOOL 32098 32098-0016 1
STAY,FR,LH,P.SILVER 35063 35063-0357-458 1
STAY,FR,RH,P.SILVER 35063A 35063-0358-458 1
STAY,RR,LH,F.BLACK 35063B 35063-0359-W9 1
STAY,RR,RH,F.BLACK 35063C 35063-0360-W9 1
COVER-SIDE,BATTERY,RH,BLACK 36001 36001-0105-18R 1
PAD,COWLING,BATTERY 39156 39156-0316 1
GRIP,TAIL,LH,P.SILVER 46075 46075-0066-458 1
GRIP,TAIL,RH,P.SILVER 46075A 46075-0067-458 1
COVER-SEAL 49016 49016-0034 1
CARRIER 53029 53029-0076 1
TRIM,L=100 53044 53044-1200 2
GUARD,TAIL COVER 55020 55020-0410 1
COWLING,BATTERY,N.SILVER 55028A 55028-0148-17N 1
SCREW,6X10 92009 92009-1661 2
NUT,FLANGED,6MM 92015 92015-1367 3
NUT,WELL,5MM 92015A 92015-1757 2
COLLAR,L=13.1 92027 92027-251 3
PLUG 92066 92066-1081 1
PLUG 92066A 92066-1547 2
DAMPER 92075 92075-1011 1
BOLT-SOCKET,5X12 120 120CA0512 4
BOLT-FLANGED,5X25 130 130BA0525 2
BOLT-FLANGED,6X16 130B 130BA0616 2
BOLT-FLANGED,6X22 130C 130BA0622 6
BOLT-FLANGED,10X35 130D 130BA1035 2
SEAL 92093 92093-1507 2
BOLT,SOCKET,10X30 92151 92151-1372 4
BOLT,SOCKET,6X25 92151A 92151-1611 4
COLLAR 92152 92152-0532 2
COLLAR 92152A 92152-0534 2
COLLAR 92152B 92152-0610 4
COLLAR 92152C 92152-0627 4
BOLT,SOCKET,8X30 92153 92153-0393 2
BOLT,SOCKET,6X10 92153A 92153-0410 2
BOLT,SOCKET,8X50 92153B 92153-0420 4
BOLT,6X18 92153C 92153-0478 4
BOLT,SOCKET,6MM 92153D 92153-0489 1
BOLT,6X16 92153E 92153-0684 4
BOLT,SOCKET,8X20 92153F 92153-1621 4
BOLT,FLANGED,6X14 92153G 92153-1676 1
BOLT,SOCKET,8X15 92153H 92153-1810 4
DAMPER 92160 92160-1162 3
WASHER,10.4X15.9X0.5 92200 92200-0157 1
BRACKET,CANISTER 11055 11055-0112 1 CA
PAD,CANISTER BRACKET 39156A 39156-0330 1 CA
BOLT-FLANGED,6X12 130A 130BA0612 3 CNUS
BOLT-FLANGED,6X12 130A 130BA0612 5 CA
NUT-HEX 311 311BA0600 1 CA
