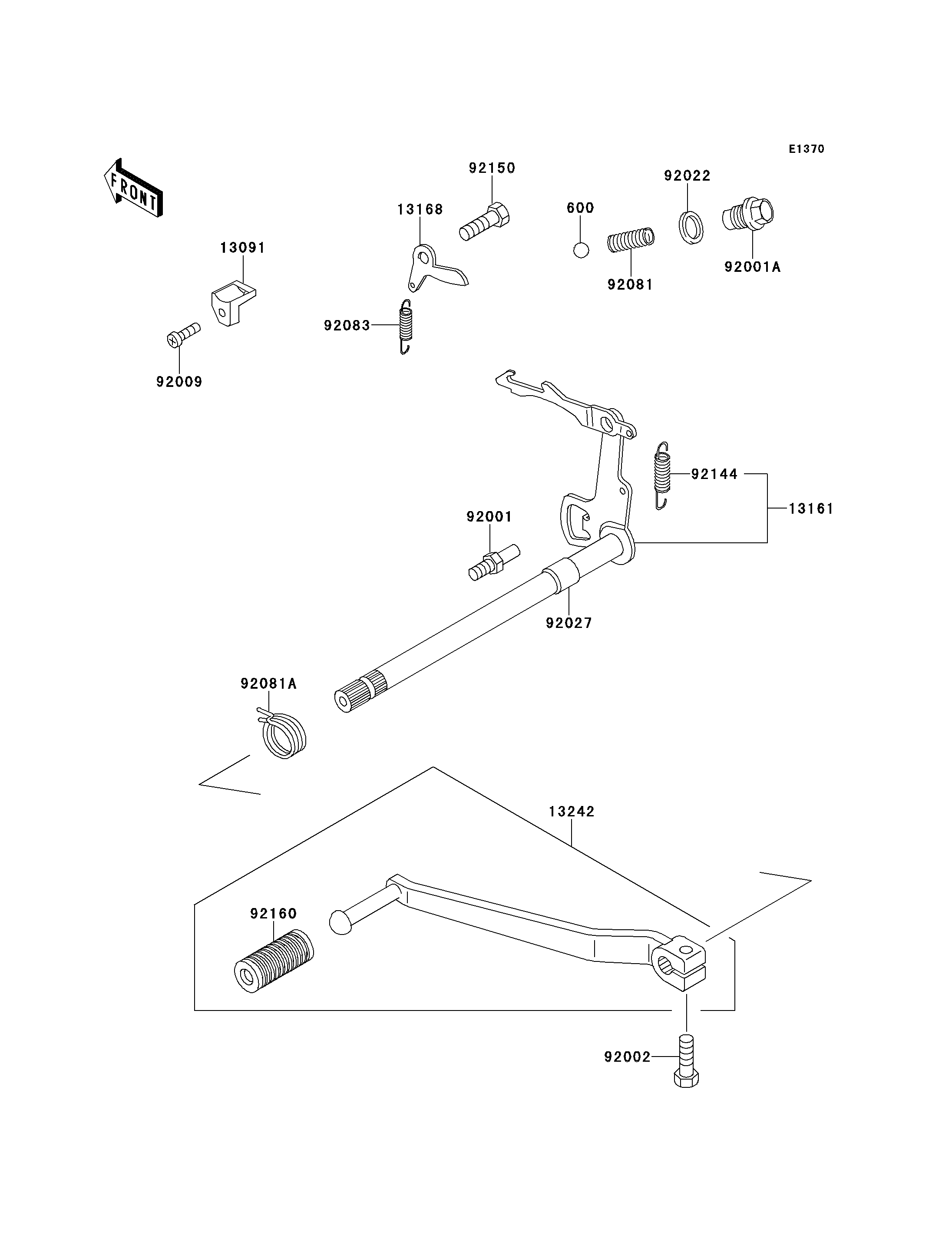

600
13091
13161
13168
13242
92001
92001A
92002
92009
92022
92027
92081
92081A
92083
92144
92150
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,13/32" 600 600A1300 1
HOLDER 13091 13091-1350 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1197 1
LEVER,GEAR CHANGE DRUM 13168 13168-1046 1
LEVER-ASSY-CHANGE 13242 13242-004 1
BOLT,RETURN SPRING 92001 92001-1455 1
BOLT,16X28.5 92001A 92001-1934 1
BOLT,6X20 92002 92002-1237 1
SCREW 92009 92009-1266 1
WASHER,16.5X23X2 92022 92022-324 1
COLLAR,12X18X11.5 92027 92027-121 1
SPRING 92081 92081-112 1
SPRING,TENSION 92081A 92081-1129 1
SPRING,CHANGE DRUM LEVER 92083 92083-012 1
SPRING,CHANGE LEVER 92144 92144-1720 1
BOLT,CHANGE DRUM LEVER 92150 92150-1450 1
DAMPER,CHANGE PEDAL 92160 92160-1036 1
