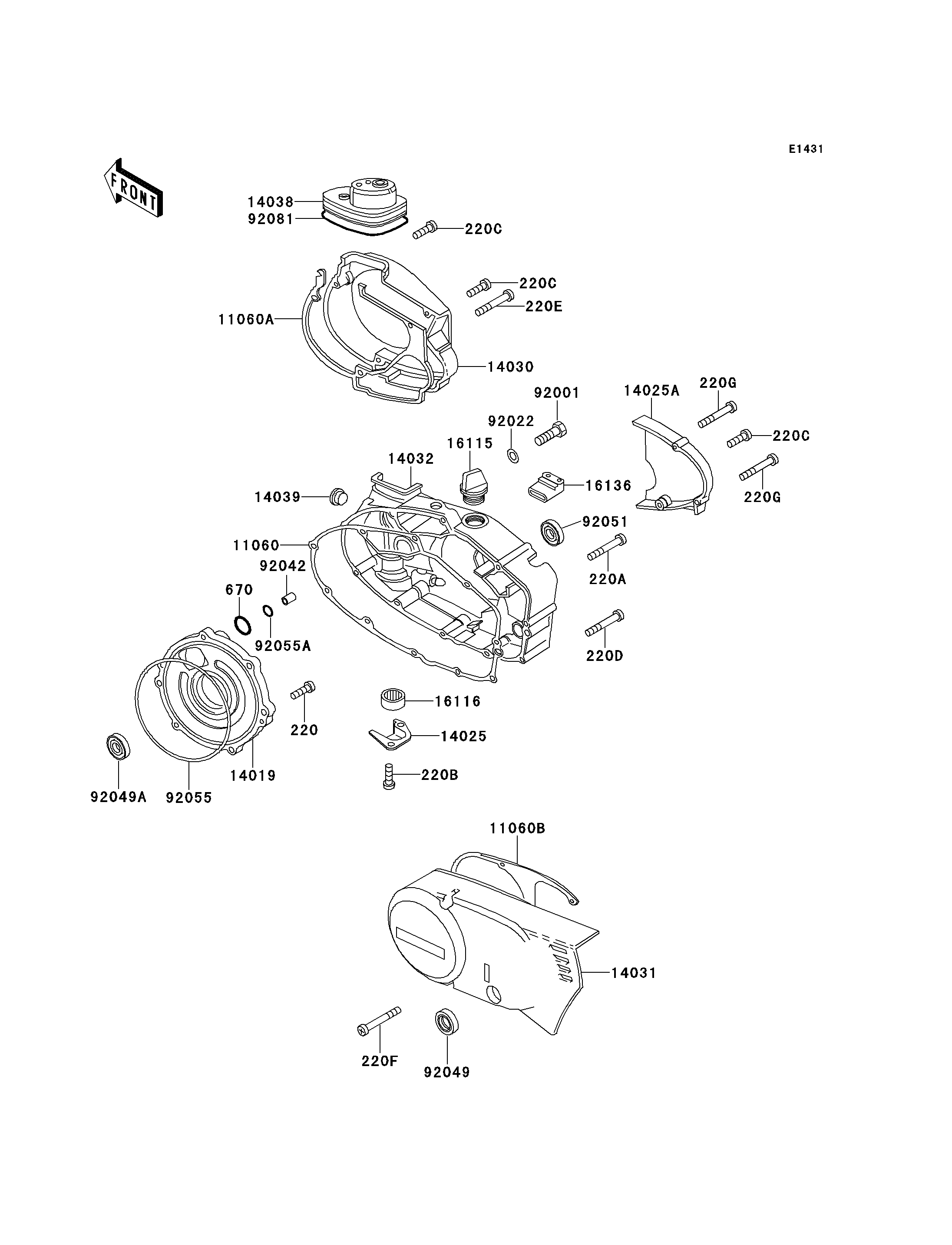

1997 KE100 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
220
220A
220B
220C
220C
220C
220D
220E
220F
220G
220G
670
11060
11060A
11060B
14019
14025
14025A
14030
14031
14032
14038
14039
16115
16116
16136
92001
92022
92042
92049
92049A
92051
92055
92055A
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X20,WHITE 220 220B0620 6
SCREW-PAN-CROS,6X45 220A 220B0645 2
SCREW-PAN-CROS 220B 220X0612 2
SCREW-PAN-CROS 220C 220X0620 3
SCREW-PAN-CROS 220D 220X0630 6
SCREW-PAN-CROS 220E 220X0635 1
SCREW-PAN-CROS 220F 220X0645 3
SCREW-PAN-CROS 220G 220X0675 2
O RING,26MM 670 670B3026 1
GASKET,CLUTCH COVER 11060 11060-1198 1
GASKET,CARBURETOR COVER 11060A 11060-1201 1
GASKET,GENERATOR COVER 11060B 11060-1202 1
COVER,ROTARY DISC VALVE 14019 14019-056 1
COVER,DRAIN PLUG 14025 14025-1137 1
COVER,OIL PUMP 14025A 14025-1185 1
COVER-CARBURETOR 14030 14030-1011 1
COVER-GENERATOR 14031 14031-1043 1
COVER-CLUTCH 14032 14032-1096 1
BOOT,CARBURETOR 14038 14038-035 1
CAP,RUBBER 14039 14039-001 1
CAP-OIL FILLER 16115 16115-018 1
PLUG,25X12 16116 16116-006 1
GROMMET,OVERFLOW PIPE 16136 16136-007 1
BOLT,6X14 92001 92001-1935 1
WASHER,6.1X12X1 92022 92022-077 1
PIN,DOWEL,8X16 92042 92042-017 1
SEAL-OIL,SB12205 92049 92049-004 1
SEAL-OIL 92049A 92049-1482 1
SEAL-OIL,TB16267 92051 92051-003 1
RING-O,100MM 92055 92055-010 1
RING-O,7.8X3.5 92055A 92055-029 1
SPRING,COIL 92081 92081-047 1
