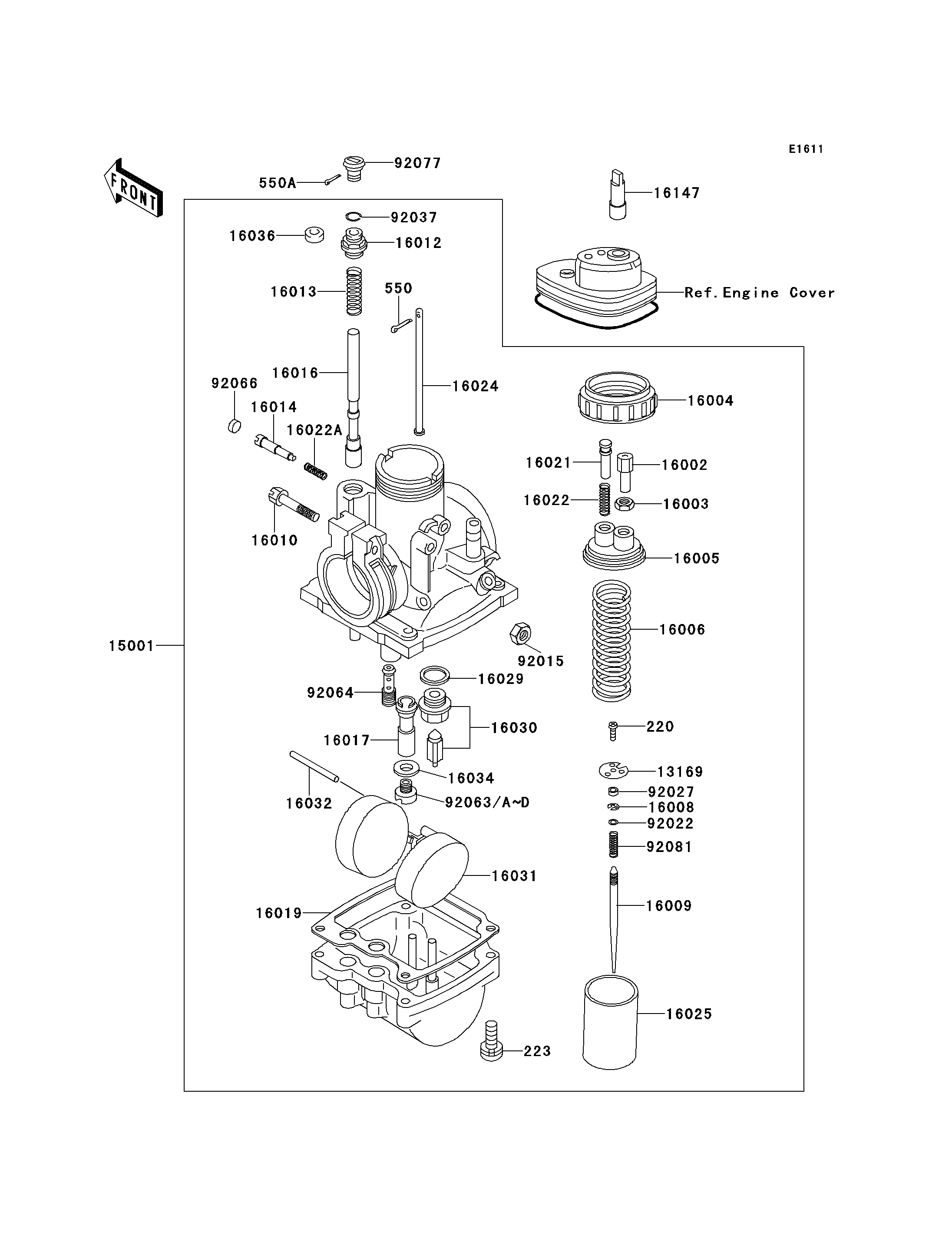

1997 KE100 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,THROTTLE VALVE 13169 13169-1676 1 US
CARBURETOR-ASSY 15001 15001-1220 1 US
ADJUSTER-CABLE 16002 16002-017 1 US
NUT,CABLE ADJUST LOCK 16003 16003-004 1 US
CAP-CHAMBER,MIXING 16004 16004-010 1 US
TOP-CHAMBER,MIXING 16005 16005-005 1 US
SPRING,THROTTLE VALVE 16006 16006-013 1 US
CLAMP,E-TYPE 16008 16008-010 1 US
NEEDLE-JET,4EJ39 16009 16009-1289 1 US
SCREW,CLAMP 16010 16010-004 1 US
CAP-STARTER PLUNGER 16012 16012-021 1 US
SPRING,STARTER PLUNGER 16013 16013-010 1 US
SCREW-PILOT AIR 16014 16014-002 1 US
PLUNGER,STARTER 16016 16016-012 1 US
JET-NEEDLE,O-1 16017 16017-1299 1 US
GASKET,FLOAT CHAMBER 16019 16019-021 1 US
SCREW-THROTTLE STOP 16021 16021-002 1 US
SPRING,THROTTLE STOP SCREW 16022 16022-005 1 US
SPRING,PILOT AIR SCREW 16022A 16022-007 1 US
ROD,THROTTLE VALVE STOP 16024 16024-006 1 US
VALVE-THROTTLE,CA2.0 16025 16025-1013 1 US
GASKET,FLOAT VALVE SEAT 16029 16029-002 1 US
SCREW-PAN-CROS 220 220B0308 1 US
VALVE-FLOAT,#2.0 16030 16030-001 1 US
FLOAT 16031 16031-015 1 US
PIN,FLOAT 16032 16032-003 1 US
WASHER,MAIN JET 16034 16034-001 1 US
BOOT,STARTER PLUNGER 16036 16036-012 1 US
PLUG,12X40 16147 16147-001 1 US
NUT,6MM 92015 92015-1026 1 US
WASHER,THROTTLE VALVE 92022 92022-1068 1 US
COLLAR,THROTTLE VALVE 92027 92027-1103 1 US
CLAMP 92037 92037-1077 1 US
JET-MAIN,#A80R 92063 92063-1030 1 US
JET-MAIN,#A77.5R 92063A 92063-1032 1 US (RACING USE ONLY)
JET-MAIN,#A75R 92063B 92063-1111 1 US (RACING USE ONLY)
JET-MAIN,#A82,5R 92063C 92063-1322 1 US (RACING USE ONLY)
JET-MAIN,#A85R 92063D 92063-1323 1 US (RACING USE ONLY)
JET-PILOT,#A15 92064 92064-1018 1 US
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 1 US
KNOB,CARBURETOR 92077 92077-022 1 US
SPRING,JET NEEDLE 92081 92081-1072 1 US
SCREW-PAN-WS-CROS 223 223B0418 4 US
PIN-COTTER,1.2X10 550 550D1210 1 US
PIN-COTTER,1.6X15 550A 550D1615 1 US
