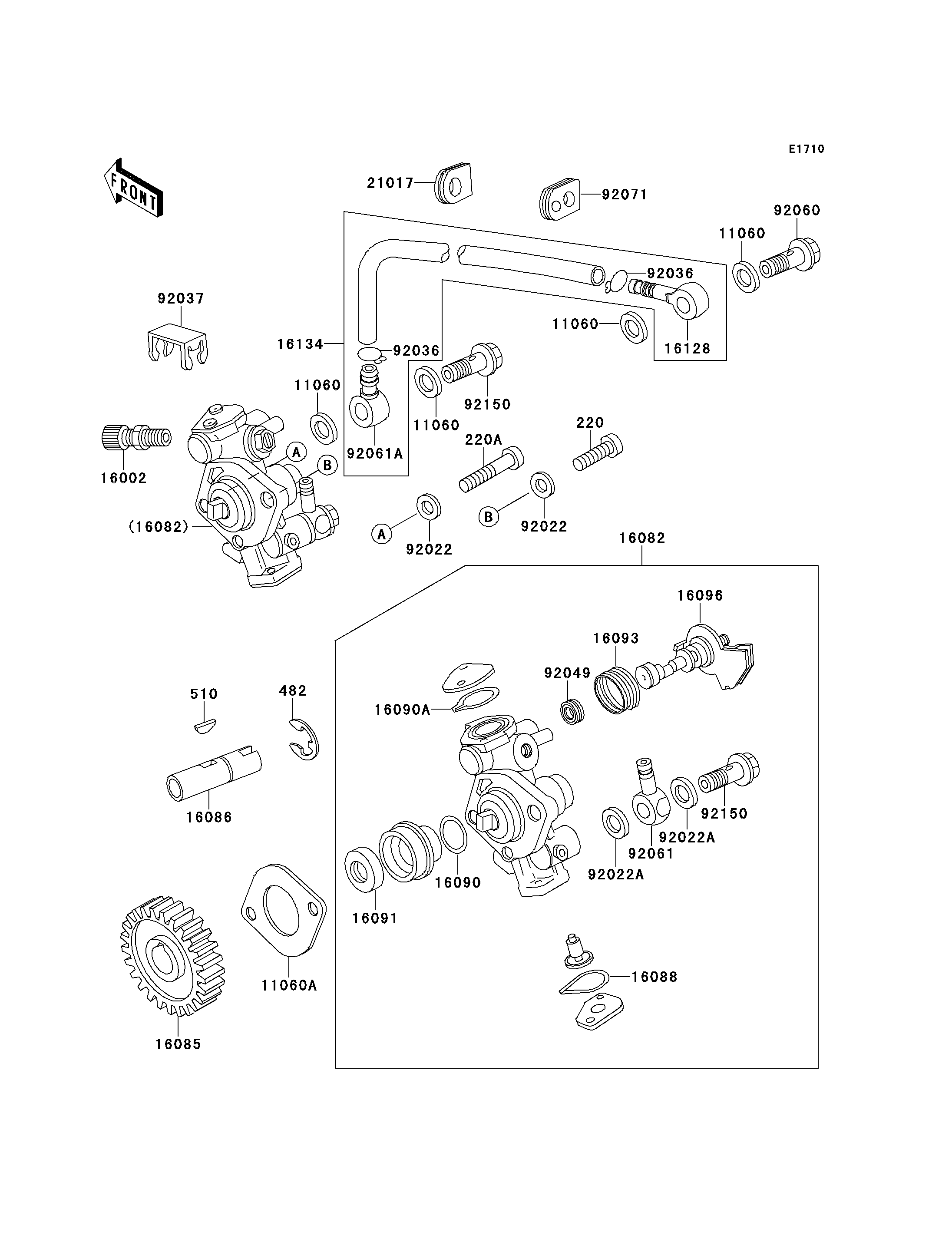

1997 KE100 - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
220
220A
482
510
11060
11060
11060
11060
11060A
16002
16082
16085
16086
16088
16090
16090A
16091
16093
16096
16128
16134
21017
92022
92022
92022A
92022A
92036
92036
92037
92049
92060
92061
92061A
92071
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220B0514 1
SCREW-PAN-CROS 220A 220B0528 1
CIRCLIP-TYPE-E,9MM 482 482K9000 1
KEY-WOODRUFF 510 510A3100 1
GASKET,6X12X1.13 11060 11060-1155 4
GASKET,OIL PUMP 11060A 11060-1160 1
ADJUSTER-CABLE 16002 16002-012 1
PUMP-ASSY-OIL 16082 16082-067 1
GEAR,OIL PUMP 16085 16085-004 1
SHAFT,OIL PUMP 16086 16086-001 1
RING-O,CAP,BANJO SIDE 16088 16088-002 1
RING-O,OIL PUMP SHAFT 16090 16090-002 1
RING-O,CAP,CAMSHAFT SIDE 16090A 16090-004 1
SEAL-OIL,OIL PUMP SHAFT 16091 16091-001 1
SPRING,OIL PUMP LEVER 16093 16093-006 1
LEVER-OIL PUMP 16096 16096-012 1
VALVE-CHECK 16128 16128-009 1
TUBE,OIL 16134 16134-021 1
GROMMET 21017 21017-002 1
WASHER,5.5X10.5X0.8 92022 92022-037 2
WASHER,6.1X12X1 92022A 92022-077 2
RING-SNAP 92036 92036-022 2
CLAMP,OIL PUMP CABLE 92037 92037-1107 1
SEAL-OIL,CAMSHAFT,"X"TYPE 92049 92049-1294 1
BOLT,BANJO,L=13.5 92060 92060-008 1
FITTING,BANJO 92061 92061-009 1
FITTING,BANJO 92061A 92061-018 1
GROMMET,OIL PIPE 92071 92071-067 1
BOLT,BANJO,6X16 92150 92150-1982 2
