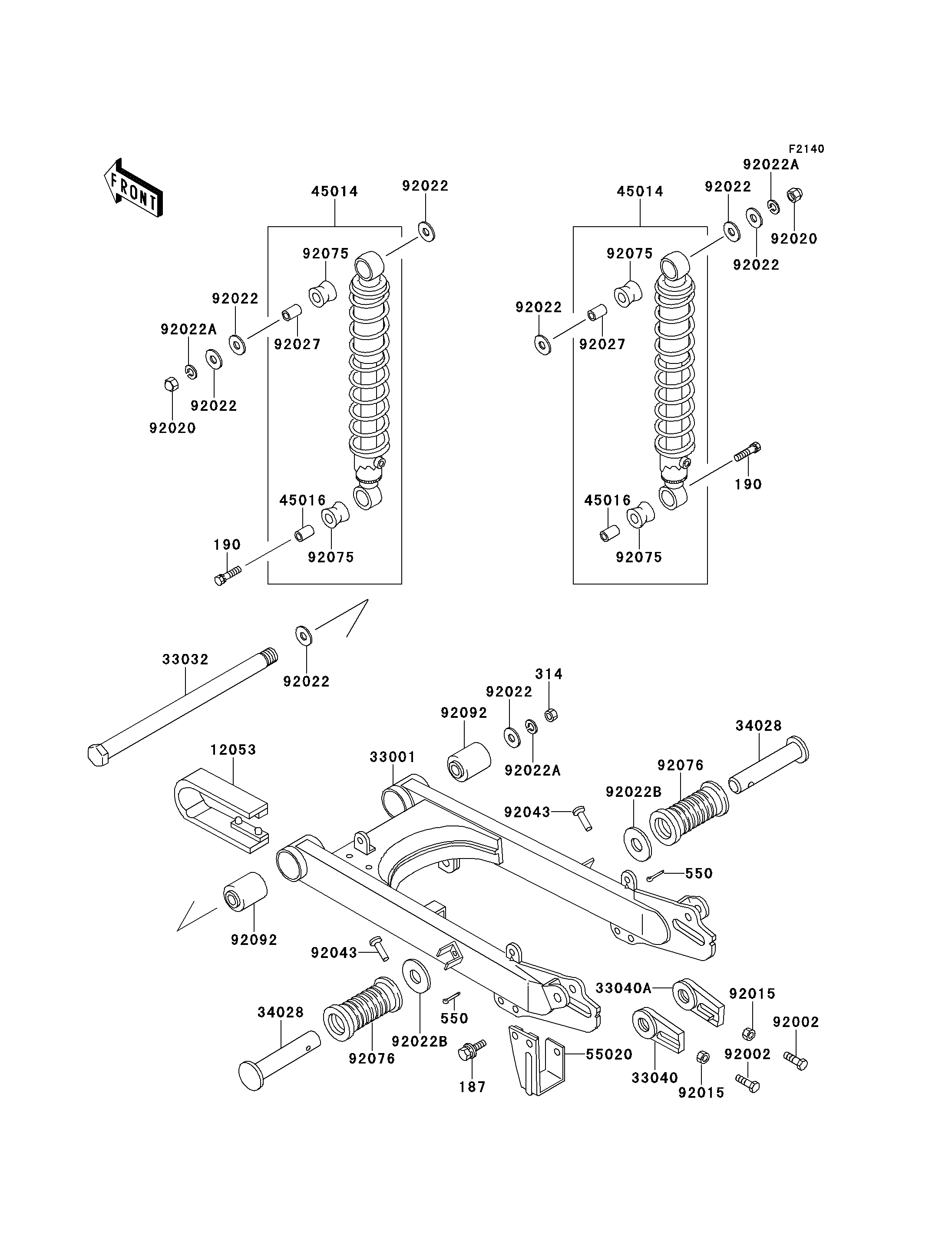

1997 KE100 - Swingarm/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
187
190
190
314
550
550
12053
33001
33032
33040
33040A
34028
34028
45014
45014
45016
45016
55020
92002
92002
92015
92015
92020
92020
92022
92022
92022
92022
92022
92022
92022
92022
92022A
92022A
92022A
92022B
92022B
92027
92027
92043
92043
92075
92075
92075
92075
92076
92076
92092
92092
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187X0616 2
BOLT-UPSET-WS 190 190N1035 2
NUT-HEX-FINE 314 314B1200 1
PIN-COTTER,2.0X15 550 550D2015 2
GUIDE-CHAIN,NYLON 12053 12053-1066 1
ARM-COMP-SWING,SILVER 33001 33001-1118 1
SHAFT-SWING ARM 33032 33032-034 1
ADJUSTER-CHAIN,LH 33040 33040-045 1
ADJUSTER-CHAIN,RH 33040A 33040-046 1
STEP,RR 34028 34028-009 2
SHOCKABSORBER 45014 45014-1144 2
COLLAR,SHOCKABSORBER 45016 45016-003 2
GUARD,CHAIN 55020 55020-012 1
BOLT,CHAIN ADJUSTER,8X50 92002 92002-1076 2
NUT,8MM 92015 92015-1364 2
NUT,CAP,12MM 92020 92020-014 2
WASHER,12MM 92022 92022-1538 8
WASHER,SPRING,12MM 92022A 92022-1541 3
WASHER,20X30X2.3 92022B 92022-1568 2
COLLAR,SHOCKABSORBER 92027 92027-1063 2
PIN,6X28 92043 92043-1464 2
DAMPER,SHOCKABSORBER 92075 92075-1020 4
DAMPER 92076 92076-020 2
BUSHING-RUBBER 92092 92092-005 2
