187
187
224
312
312
461
461
35004
35022
35023
35034
92001
92001A
92002
92009
92009
92022
92022
92027
92027A
92075

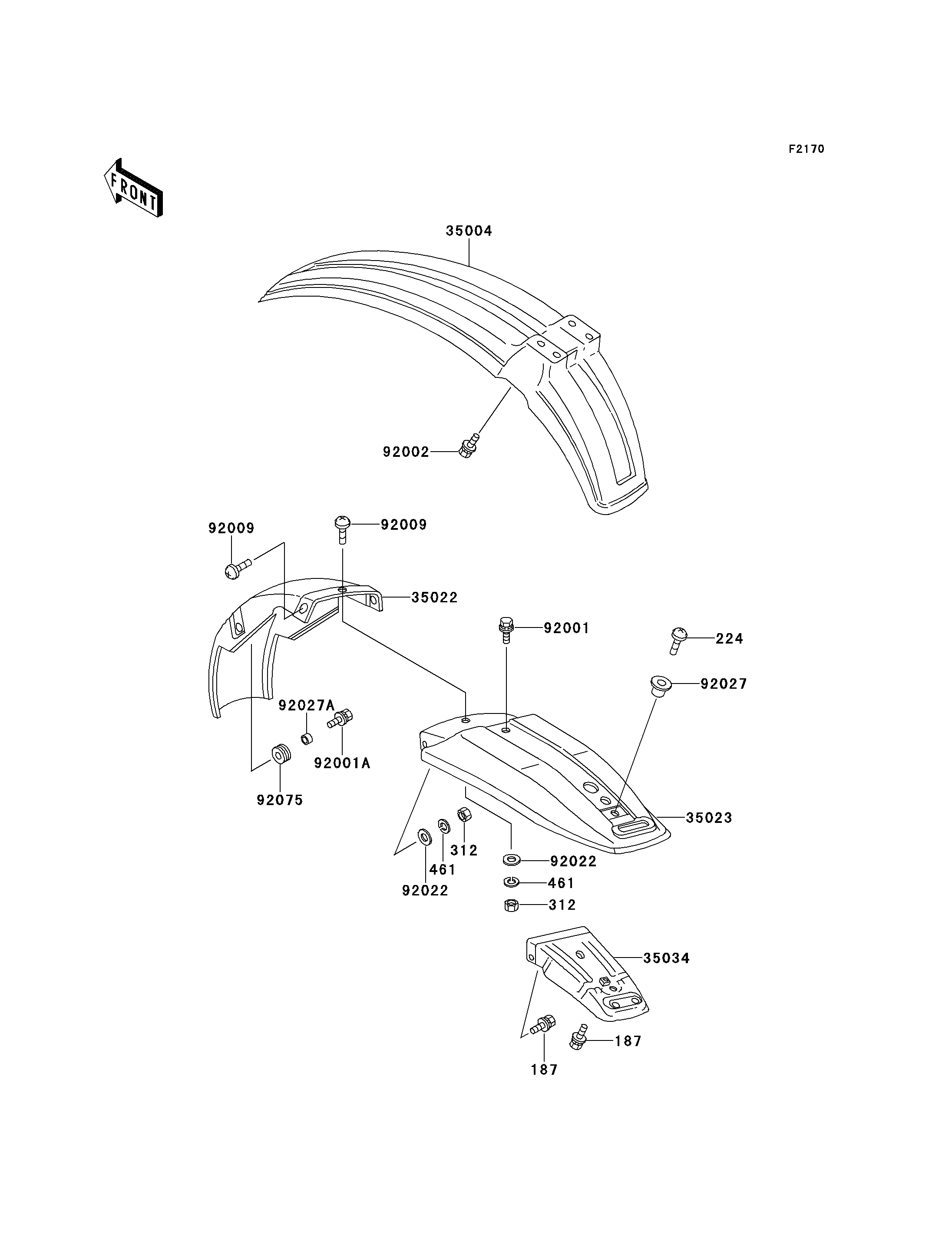

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187B0612 3
SCREW-PAN-WP-CROS 224 224B0614 1
NUT-HEX,6MM 312 312B0600 3
WASHER-SPRING,6MM 461 461F0600 3
FENDER-FRONT,L.GREEN 35004 35004-1072-6W 1
FENDER-COMP-REAR,FR 35022 35022-064 1
FENDER-REAR,L.GREEN 35023 35023-1039-6W 1
REINFORCE 35034 35034-1075 1
BOLT,6X12 92001 92001-1761 1
BOLT,W/SP,6X16 92001A 92001-1763 2
BOLT,6X16 92002 92002-1075 4
SCREW,6X14 92009 92009-1281 3
WASHER,6.5X20X1.6 92022 92022-125 3
COLLAR,L=3.5 92027 92027-1018 1
COLLAR,6.8X10X6 92027A 92027-103 2
DAMPER 92075 92075-105 2
