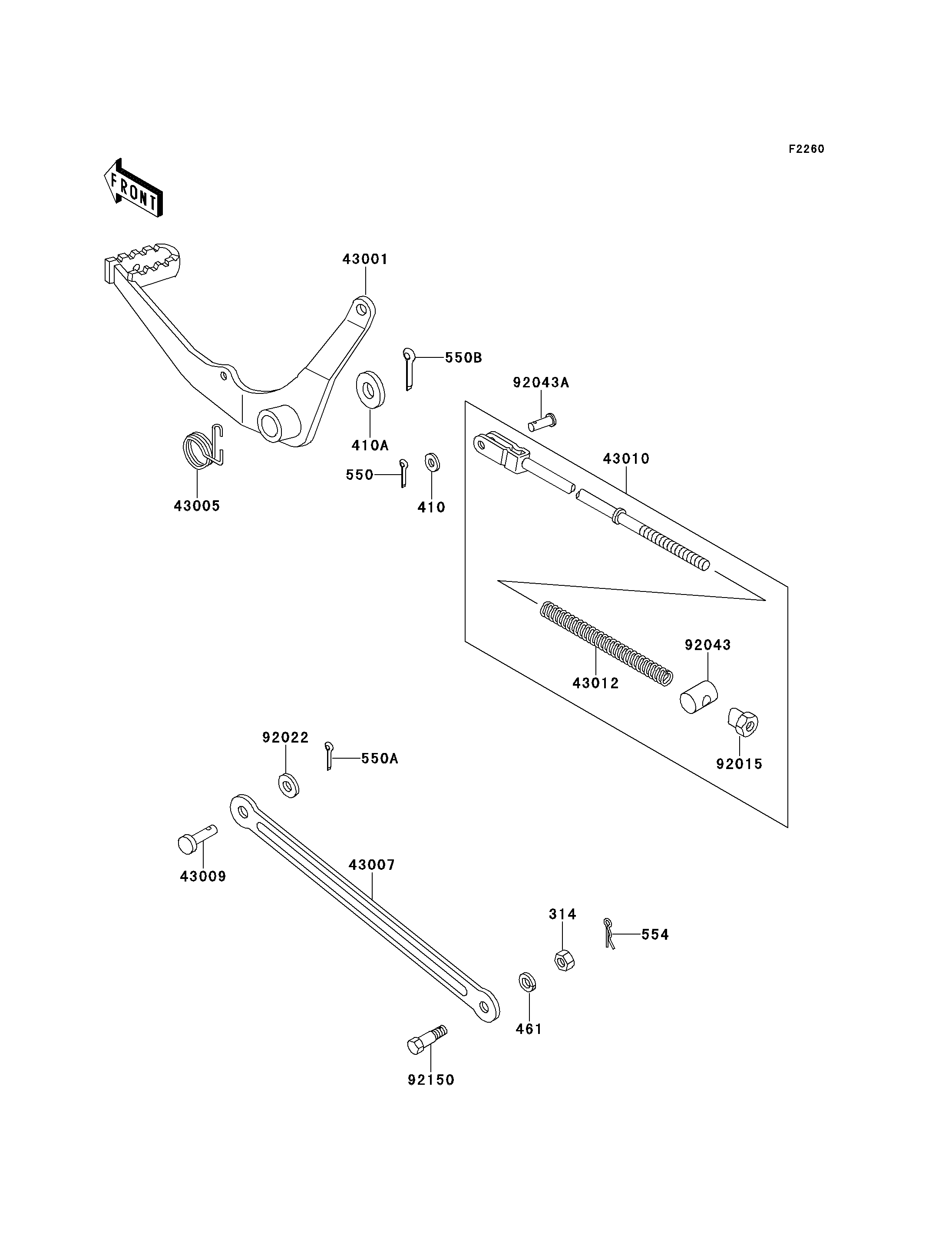

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
314
410
410A
461
550
550A
550B
554
43001
43005
43007
43009
43010
43012
92015
92022
92043
92043A
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT-HEX-FINE,10MM | 314 | 314B1000 | 1 | ||
WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
WASHER-PLAIN-SMALL,14MM,BLACK | 410A | 410F1400 | 1 | ||
WASHER-SPRING,10MM | 461 | 461F1000 | 1 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 | ||
PIN-COTTER,2.5X15 | 550A | 550D2515 | 1 | ||
PIN-COTTER,3.0X30 | 550B | 550D3030 | 1 | ||
PIN-SNAP,8MM | 554 | 554A0800 | 1 | ||
LEVER-BRAKE,PEDAL | 43001 | 43001-056 | 1 | ||
SPRING,BRAKE PEDAL | 43005 | 43005-007 | 1 | ||
ROD-TORQUE,RR | 43007 | 43007-028 | 1 | ||
PIN,SPRING,10X12 | 43009 | 43009-001 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-5001 | 1 | ||
SPRING,BRAKE ROD | 43012 | 43012-001 | 1 | ||
NUT,BRAKE ROD | 92015 | 92015-042 | 1 | ||
WASHER,10.5X18X1.6 | 92022 | 92022-1539 | 1 | ||
PIN,BRAKE ROD | 92043 | 92043-039 | 1 | ||
PIN,6X17 | 92043A | 92043-064 | 1 | ||
BOLT,10X32 | 92150 | 92150-1872 | 1 |
NUT-HEX-FINE,10MM | |
REF # | 314 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,6MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,14MM,BLACK | |
REF # | 410A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-SPRING,10MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.5X15 | |
REF # | 550A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-COTTER,3.0X30 | |
REF # | 550B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-SNAP,8MM | |
REF # | 554 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-BRAKE,PEDAL | |
REF # | 43001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,BRAKE PEDAL | |
REF # | 43005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-TORQUE,RR | |
REF # | 43007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,SPRING,10X12 | |
REF # | 43009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-BRAKE | |
REF # | 43010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,BRAKE ROD | |
REF # | 43012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,BRAKE ROD | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10.5X18X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,BRAKE ROD | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,6X17 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,10X32 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
