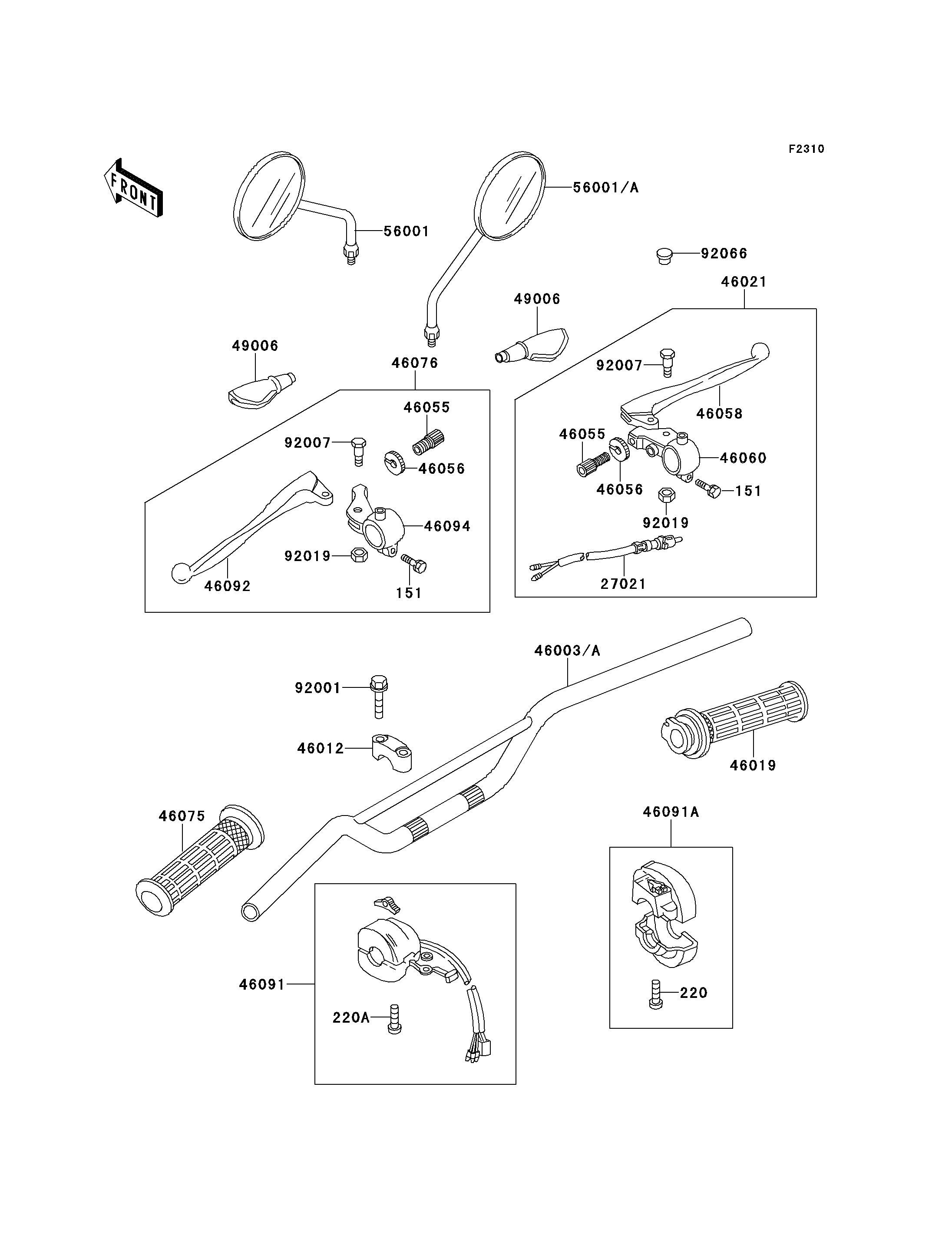

1997 KE100 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
151
151
220
220A
27021
46003
46012
46019
46021
46055
46055
46056
46056
46058
46060
46075
46076
46091
46091A
46092
46094
49006
49006
92001
92007
92007
92019
92019
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WP 151 151N0625 2
SCREW-PAN-CROS 220 220B0518 2
SCREW-PAN-CROS,5X25 220A 220B0525 2
SWITCH,FR BRAKE LAMP 27021 27021-004 1
HANDLE 46003 46003-1432 1
HOLDER-HANDLE,UPP 46012 46012-008 2
GRIP-ASSY,THROTTLE 46019 46019-1005 1
LEVER-ASSY-GRIP,BRAKE 46021 46021-031 1
SCREW,CABLE ADJUST,8MM 46055 46055-003 2
NUT,CABLE ADJUST LOCK,8MM 46056 46056-005 2
LEVER-GRIP,FRONT BRAKE 46058 46058-004 1
HOLDER,BRAKE LEVER,FR,F.BLACK 46060 46060-009-21 1
GRIP,LH 46075 46075-1004 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-044 1
HOUSING-ASSY-CONTROL,LH 46091 46091-040 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-1041 1
LEVER-GRIP,CLUTCH 46092 46092-015 1
HOLDER,F.BLACK 46094 46094-011-21 1
BOOT,LEVER HOLDER 49006 49006-1017 2
BOLT,FLANGED,8X35 92001 92001-1910 4
BOLT,5X22 92007 92007-046 2
NUT,LOCK,5MM 92019 92019-014 2
MIRROR-ASSY 56001 56001-1381 1 US
MIRROR-ASSY 56001 56001-1381 2 CN
MIRROR-ASSY 56001A 56001-1381 1 US (OPTION)
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1 US
