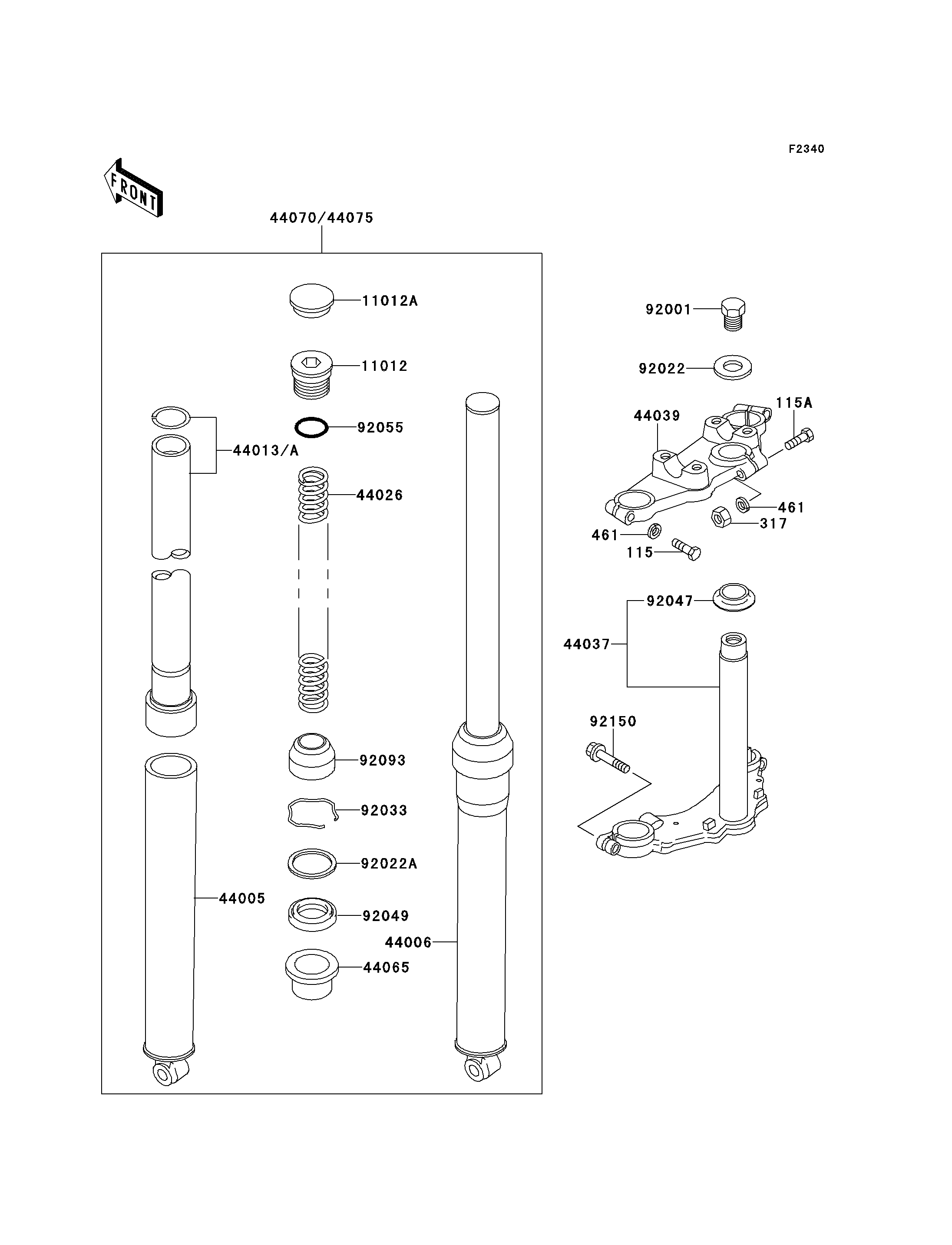

Parts Diagrams |
115
115A
317
461
461
11012
11012A
44005
44006
44013
44026
44037
44039
44065
44070
92001
92022
92022A
92033
92047
92049
92055
92093
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SMALL-UPSET | 115 | 115B0835 | 2 | ||
BOLT-SMALL-UPSET | 115A | 115B0845 | 1 | ||
NUT-HEX-SMALL,8MM | 317 | 317B0800 | 1 | ||
WASHER-SPRING,8MM | 461 | 461F0800 | 3 | ||
CAP,SPRING | 11012 | 11012-1126 | 2 | ||
CAP,FORK | 11012A | 11012-1127 | 2 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1076 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-1075 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1070 | 2 | ||
SPRING-FRONT FORK | 44026 | 44026-1120 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1076 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-047 | 1 | ||
BUSHING-FRONT FORK | 44065 | 44065-1014 | 2 | ||
DAMPER-SET-FORK | 44070 | 44070-5055 | 1 | ||
BOLT | 92001 | 92001-1327 | 1 | ||
WASHER | 92022 | 92022-1198 | 1 | ||
WASHER,FRONT FORK OIL SEAL | 92022A | 92022-1241 | 2 | ||
RING-SNAP | 92033 | 92033-1038 | 2 | ||
RACE,LOWER BEARING | 92047 | 92047-004 | 1 | ||
SEAL-OIL,FRONT FORK | 92049 | 92049-1067 | 2 | ||
RING-O | 92055 | 92055-1087 | 2 | ||
SEAL,DUST | 92093 | 92093-1065 | 2 | ||
BOLT,10X36 | 92150 | 92150-1814 | 2 |
BOLT-SMALL-UPSET | |
REF # | 115 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-SMALL-UPSET | |
REF # | 115A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-HEX-SMALL,8MM | |
REF # | 317 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-SPRING,8MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CAP,SPRING | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,FORK | |
REF # | 11012A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIPE-LEFT FORK OUTER | |
REF # | 44005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-RIGHT FORK OUTER | |
REF # | 44006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-FORK INNER | |
REF # | 44013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING-FRONT FORK | |
REF # | 44026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-FORK UNDER | |
REF # | 44037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-FORK UPPER | |
REF # | 44039 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING-FRONT FORK | |
REF # | 44065 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER-SET-FORK | |
REF # | 44070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,FRONT FORK OIL SEAL | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RACE,LOWER BEARING | |
REF # | 92047 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,FRONT FORK | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,DUST | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,10X36 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
