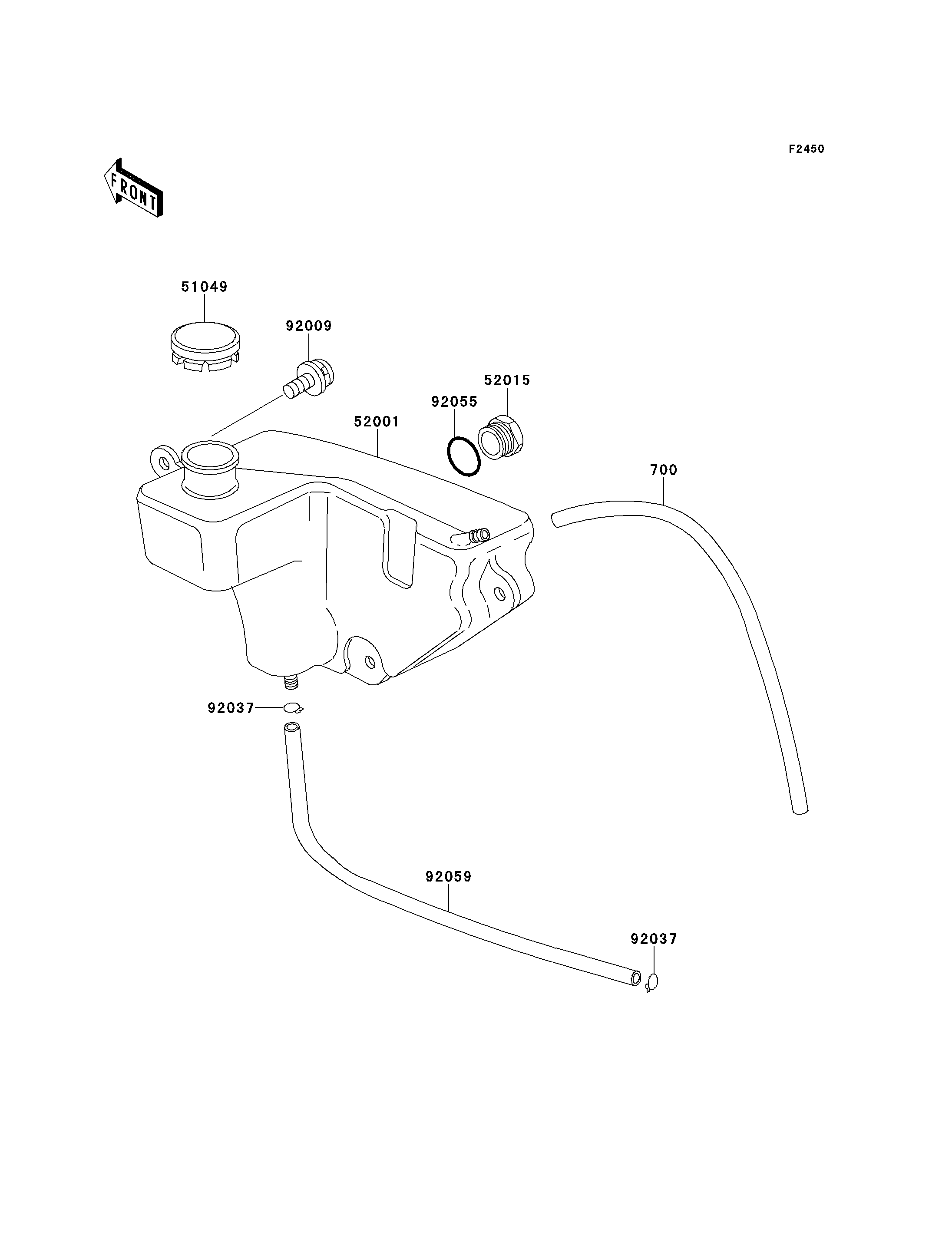

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TUBE-PVC,5X280 700 700Q05280 1
CAP-TANK,OIL 51049 51049-1004 1
TANK-OIL 52001 52001-1003 1
GAUGE,OIL LEVEL 52015 52015-002 1
SCREW-PAN-WSP-CROS,6X16 92009 92009-1283 3
CLAMP,TUBE 92037 92037-010 2
RING-O,20MM 92055 92055-051 1
TUBE,4.5X9X220 92059 92059-073 1
