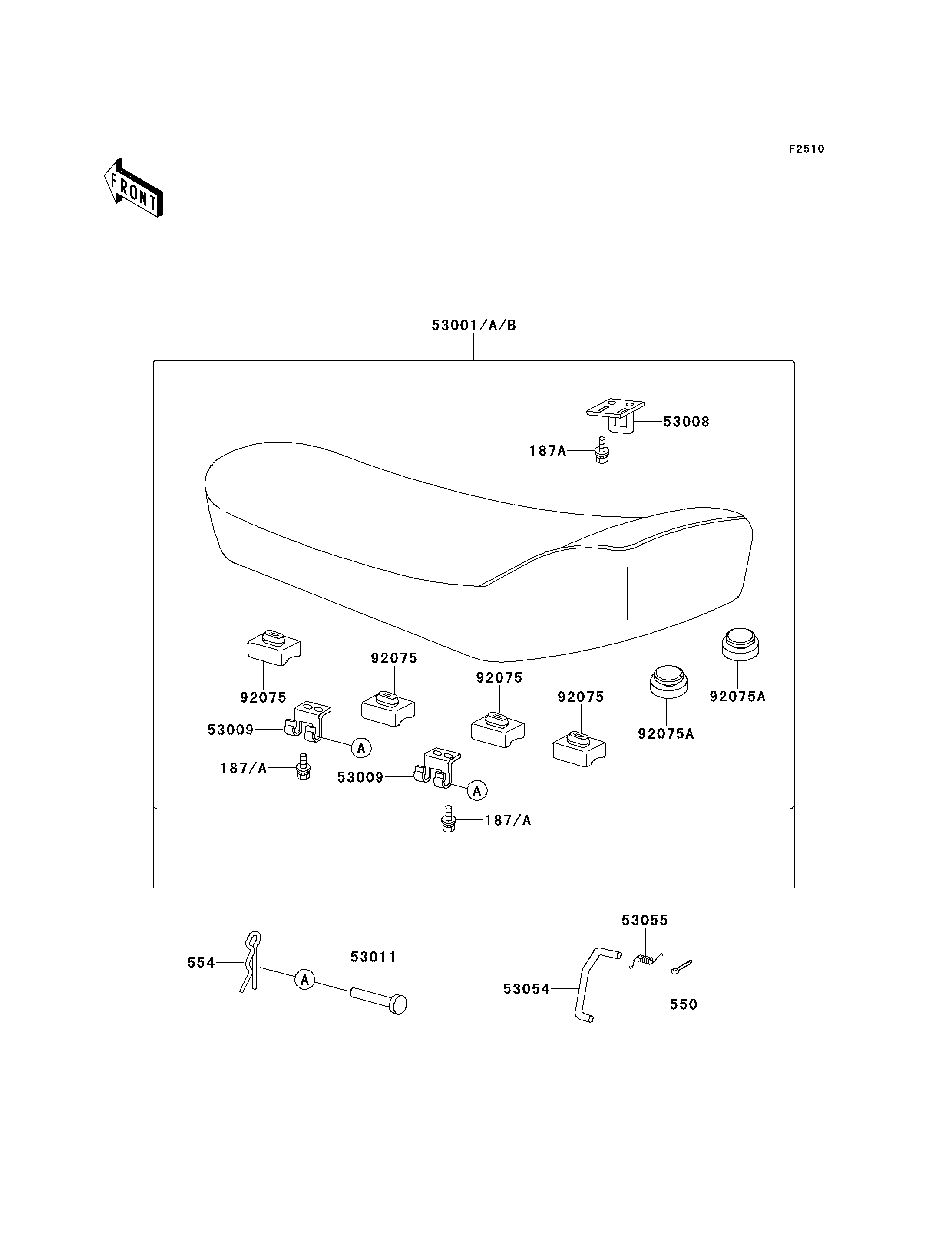

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187B0612 4
BOLT-UPSET-WSP 187A 187B0614 2
PIN-COTTER,2.0X15 550 550D2015 1
PIN-SNAP 554 554A0600 2
SEAT-ASSY,DUAL,G.VIOLET 53001 53001-1803-LW 1
HOOK,SEAT 53008 53008-021 1
HINGE,SEAT 53009 53009-017 2
PIN,6X48 53011 53011-002 2
STAY,SEAT 53054 53054-003 1
SPRING,SEAT HOOK 53055 53055-001 1
DAMPER,DUAL SEAT 92075 92075-023 4
DAMPER,SEAT 92075A 92075-216 2
