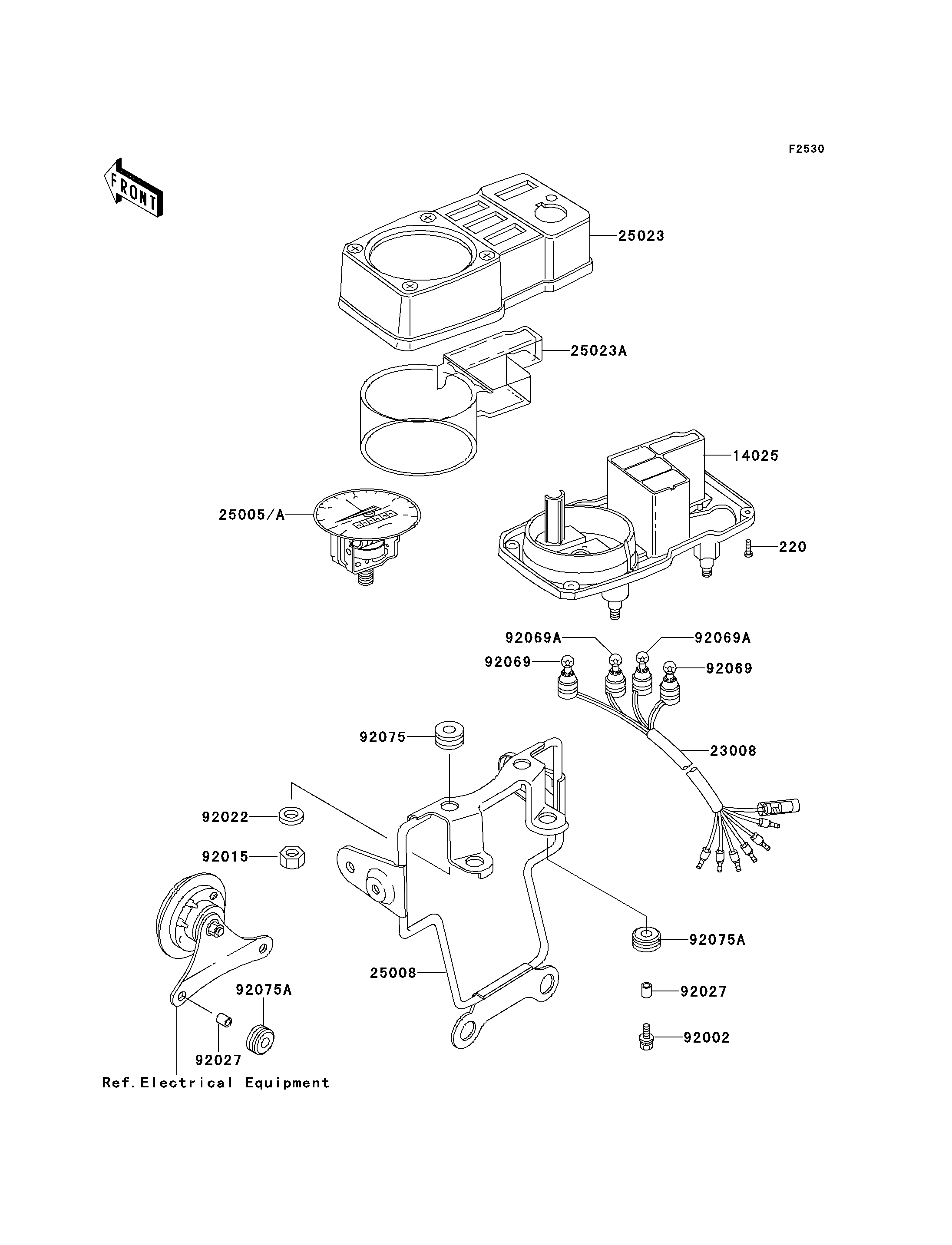

1997 KE100 - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
220
14025
23008
25008
25023
25023A
92002
92015
92022
92027
92027
92069
92069
92069A
92069A
92075
92075A
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220B0410 4
COVER,METER,LWR 14025 14025-1870 1
SOCKET-ASSY,METER 23008 23008-1523 1
BRACKET-METER 25008 25008-1042 1
COVER-METER CASE,UPP 25023 25023-1035 1
COVER-METER CASE,LWR 25023A 25023-1036 1
BOLT,6X25 92002 92002-1137 2
NUT,6MM 92015 92015-1391 2
WASHER,6.5X20X1.6 92022 92022-1557 2
COLLAR,6.8X10X12 92027 92027-162 4
BULB,6V 3W 92069 92069-1053 2
BULB,6V 1.7W 92069A 92069-1054 2
DAMPER 92075 92075-076 2
DAMPER 92075A 92075-209 4
SPEEDOMETER,MPH 25005 25005-1135 1 US
SPEEDOMETER,KPH 25005A 25005-1136 1 CN
