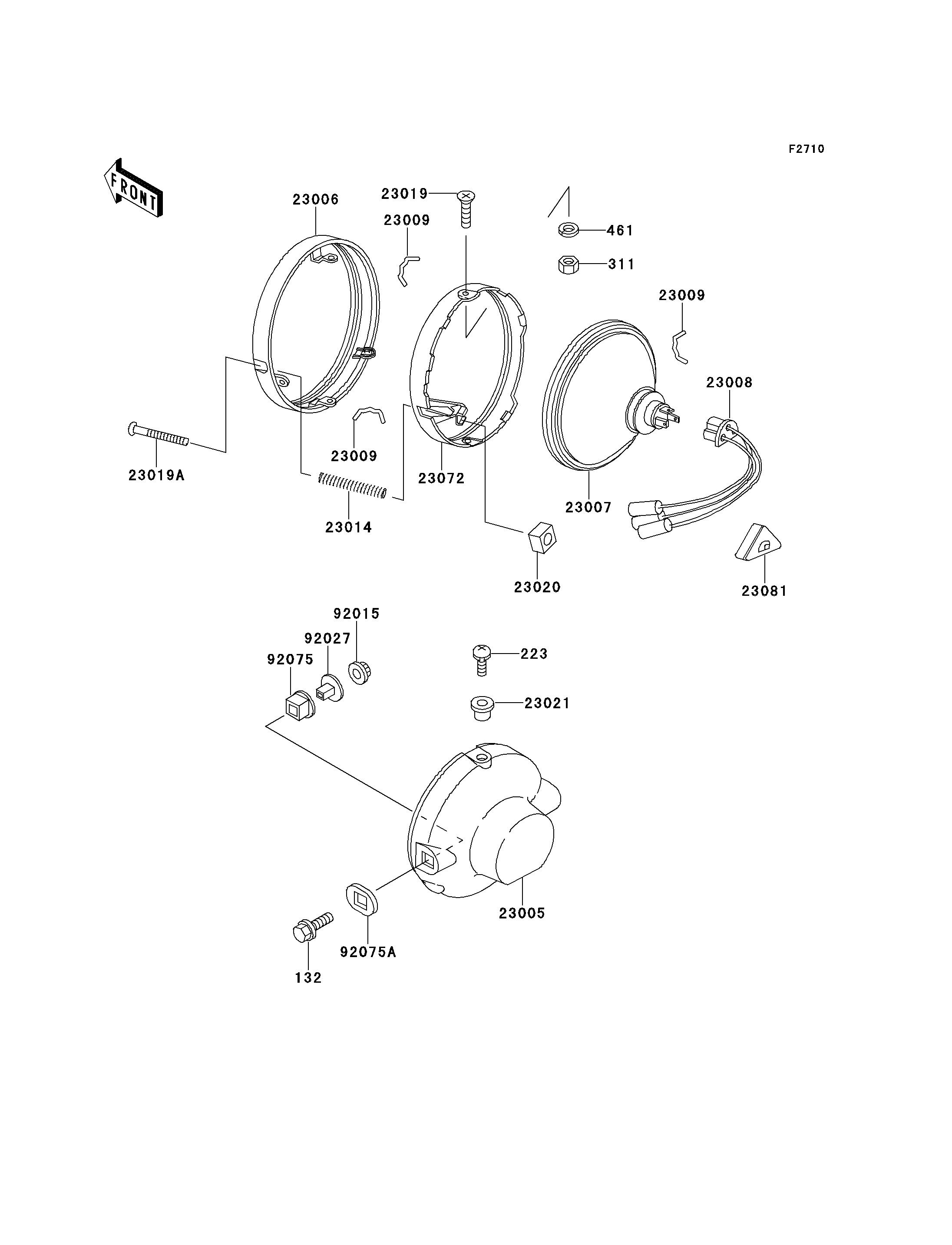

1997 KE100 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
132
223
311
461
23005
23006
23007
23008
23009
23009
23009
23014
23019
23019A
23020
23021
23072
23081
92015
92027
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0830 2
SCREW-PAN-WS-CROS 223 223B0512 3
NUT-HEX 311 311B0400 2
WASHER-SPRING,5MM 461 461F0500 2
BODY-COMP-HEAD LAMP,BLACK 23005 23005-1007-6Z 1
RIM-LAMP 23006 23006-1004 1
LENS-COMP,"4020" MARK 23007 23007-055 1
SOCKET-ASSY,HEAD LAMP 23008 23008-044 1
SPRING,HEAD LAMP LENS 23009 23009-015 3
SPRING,FOCUS ADJUSTING 23014 23014-012 1
SCREW,LENS FITTING 23019 23019-026 2
SCREW,FOCUS ADJUSTING 23019A 23019-027 1
NUT,ADJUSTING 23020 23020-012 1
WASHER 23021 23021-010 3
RETAINER,SEALED BEAM 23072 23072-002 1
COVER,HEAD LAMP SOCKET 23081 23081-001 1
NUT,FLANGED,8MM 92015 92015-1014 2
COLLAR,L=15.6 92027 92027-1105 2
DAMPER,HEAD LAMP 92075 92075-1077 2
DAMPER,HEAD LAMP 92075A 92075-1078 2
