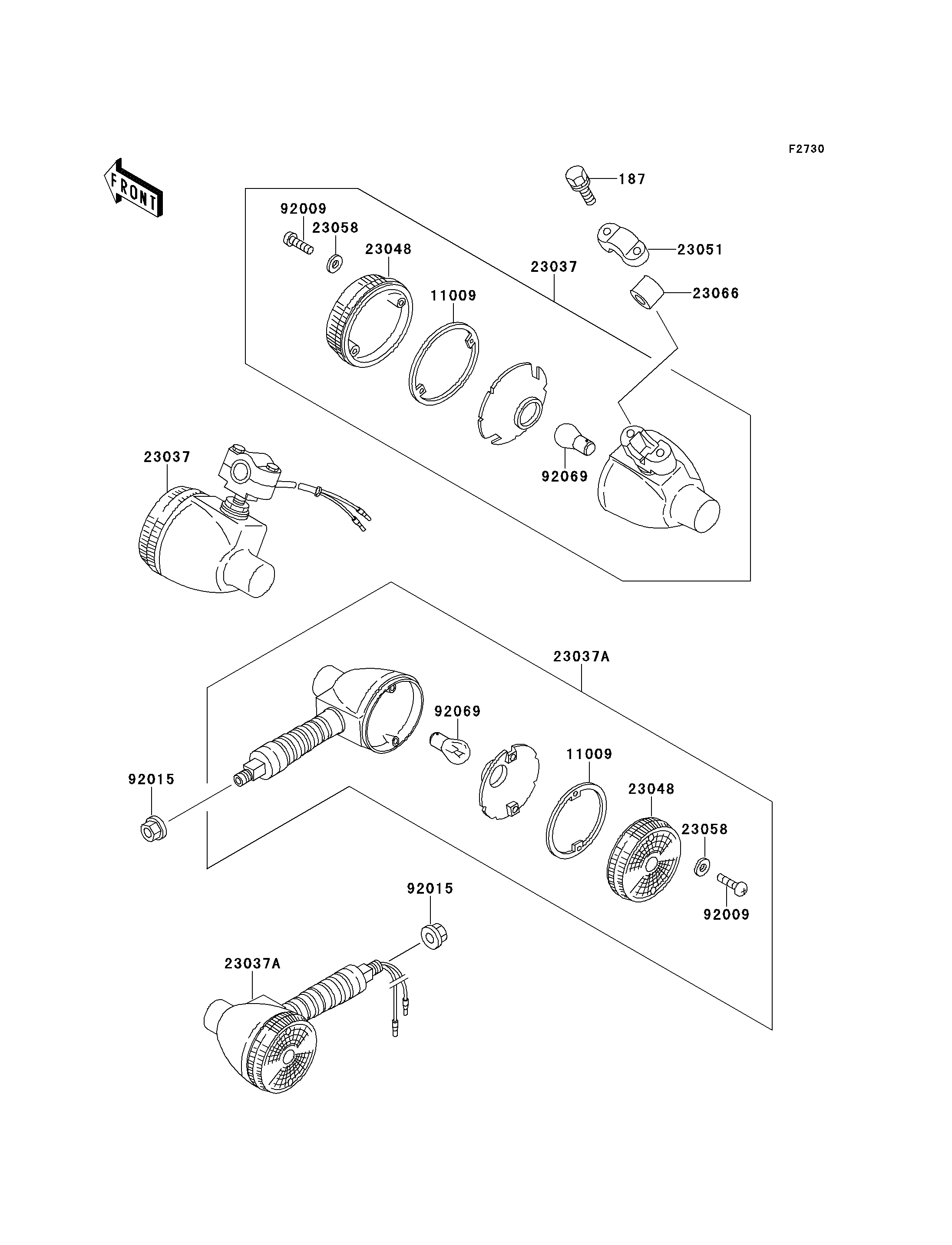

1997 KE100 - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
187
11009
11009
23037
23037
23037A
23037A
23048
23048
23051
23058
23058
23066
92009
92009
92015
92015
92069
92069
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187B0530 4
GASKET,TURN SIGNAL LAMP LENS 11009 11009-1128 4
LAMP-ASSY-SIGNAL,FR 23037 23037-1039 2
LAMP-ASSY-SIGNAL,RR 23037A 23037-1087 2
LENS-SIGNAL LAMP 23048 23048-1076 4
BRACKET-SIGNAL LAMP 23051 23051-1018 2
WASHER,PLAIN,4MM 23058 23058-002 8
DAMPER 23066 23066-003 2
SCREW,TAPPING,4X30 92009 92009-1056 8
NUT,FLANGED,10MM 92015 92015-1428 2
BULB,6V 21CP 92069 92069-056 4
