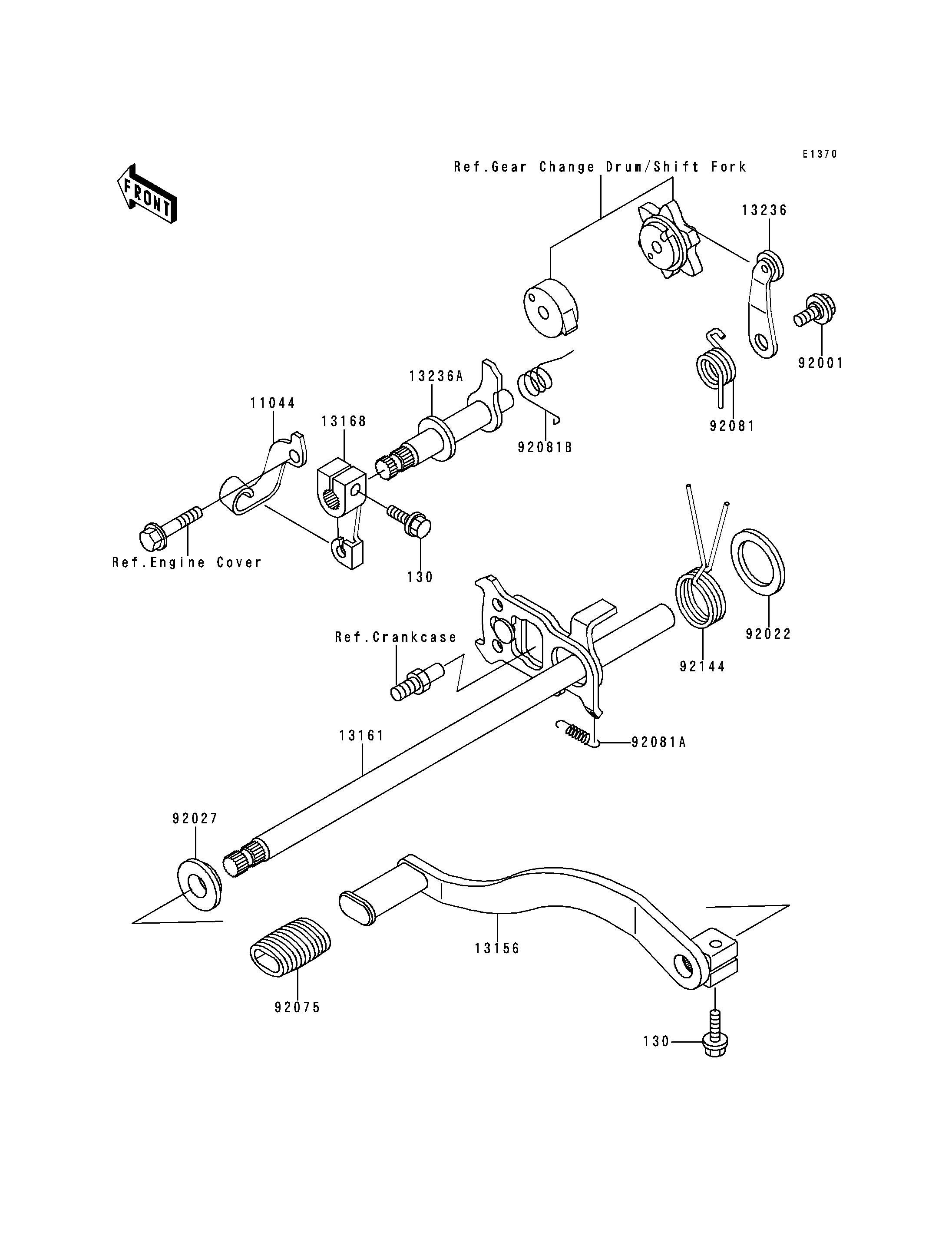

130
130
11044
13156
13161
13168
13236
13236A
92001
92022
92027
92075
92081
92081A
92081B
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20,BLACK 130 130S0620 2
BRACKET,REVERSE CABLE 11044 11044-1303 1
LEVER-CHANGE,PEDAL 13156 13156-1358 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1196 1
LEVER,REVERSE 13168 13168-1267 1
LEVER-COMP,CHANGE DRUM 13236 13236-1178 1
LEVER-COMP,REVERSE 13236A 13236-1239 1
BOLT,GEAR CHANGE LEVER 92001 92001-1715 1
WASHER,25.5X36X1 92022 92022-057 1
COLLAR,L=5.2 92027 92027-1891 1
DAMPER,CHANGE PEDAL 92075 92075-1585 1
SPRING 92081 92081-1496 1
SPRING,CHANGE LEVER 92081A 92081-1753 1
SPRING,REVERSE LEVER 92081B 92081-1850 1
SPRING 92144 92144-1798 1
